010321359F Transmission Oil Sump
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

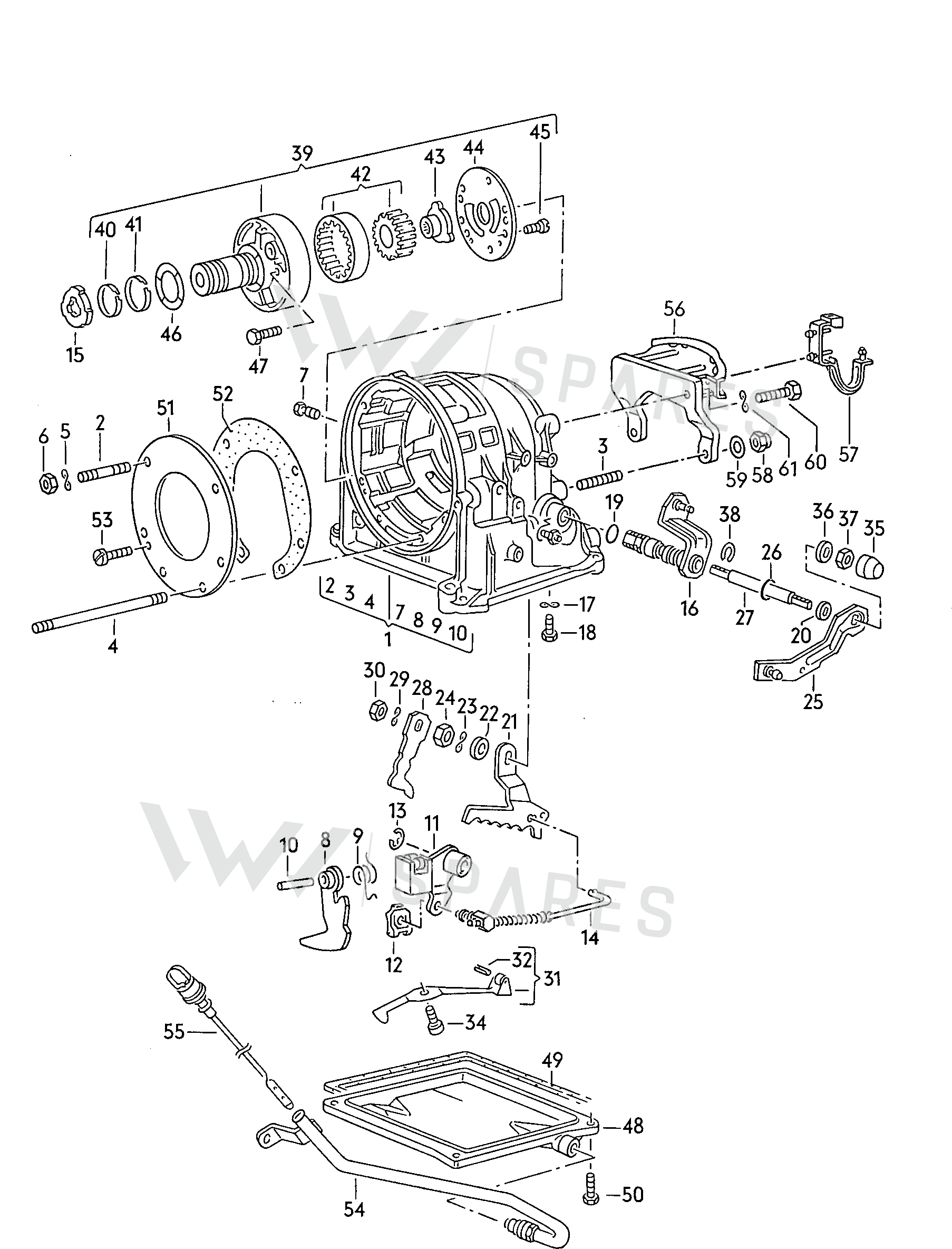

35 vehiclesTransmission Oil Sump — locate Transmission Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Housing 087321101B
- 2Bolt N90004402
- 3Bolt N0145034
- 5Washer N0122283
- 6Part N01100822
- 7Screw 003507133A
- 8Lever 010321117B
- 9Spring 010321121A
- 10In Pin - Engagement Lever Pin - Engagement 010321123
- 11Lever 010321135
- 12Ret Washer 010321140
- 13Ret Washer N0124382
- 14Od"actuating Rod With Pressure Spring Actuating 010321153C
- 15Bearing 010321157A
- 17Washer N0122265
- 18Bolt N0102241
- 19Seal Ring N0282012
- 20Washer 010321180B
- 21Segment 010321193B
- 22Washer N90047701
- 23Washer N0122385
- 24Part N01116415
- 26Seal Ring 010321182
- 27Shaft 010321209C
- 28Lever 010321215D
- 30Part N0110088
- 31Spring 010321221
- 32Sleeve N0133251
- 34Bolt N0102935
- 35Part 010321227
- 36Washer 010321229
- 37Part N0111371
- 38Ring N0236411
- 39Oil Pump 010321241F
- 40Piston Ring 003321261
- 41Piston Ring 010321261
- 42Gear Set 003321263
- 43Drive For 003321273
- 44Plate 010321279
- 45Screw N0141212
- 46Washer 010323161A
- 47Bolt N0102213
- 49Gasket 010321371B
- 51Plate 010321383B
- 52Seal 010321385B
- 53Screw N0107021
- 54Pipe 089321405B
- 55Oil Dipsti 087321431C
Vehicle fitment table35
Europe (29)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi 80/90 | 1989-1991 | 48 | 1 |
| Audi 100/Wagon | 1989-1990 | 48 | 1 |
| AUDI COUPE/3 | 1988-1994 | 48 | 1 |
| Coupe | 1988-1991 | 38 | 1 |
| Audi 200 Turbo | 1988-1990 | 48 | 1 |
| Audi 100/Wagon 89 | 1988-1989 | 48 | 1 |
| Audi 80/90 | 1987-1989 | 48 | 1 |
| AUDI COUPE/2 88 | 1987-1987 | 53 | 1 |
| Audi 5000 S/Wagon | 1986-1988 | 44 | 1 |
| S Coupe | 1985-1988 | 38 | 1 |
| Audi 5000 Turbo | 1984-1988 | 44 | 1 |
| 944 Coupe | 1984-1988 | 38 | 1 |
| Audi 4000 S | 1984-1987 | 53 | 1 |
| Audi 5000 S/Wagon | 1984-1986 | 44 | 1 |
| Audi 5000 S/Wagon 84 | 1983-1984 | 44 | 1 |
| Audi Coupe | 1981-1987 | 53 | 1 |
| 944 Coupe | 1981-1985 | 38 | 1 |
| Audi 4000 | 1981-1984 | 53 | 1 |
| Audi 5000 | 1981-1982 | 44 | 1 |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 53 | 1 |
| 924 S | 1979-1985 | 38 | 1 |
| Audi 5000 Turbo | 1979-1982 | 44 | 1 |
| Audi 4000 | 1979-1981 | 53 | 1 |
| Audi 5000/Wagon | 1979-1981 | 44 | 1 |
| Dasher | 1977-1980 | 53 | 1 |
| Audi 5000 | 1977-1979 | 44 | 1 |
| Audi Fox | 1976-1978 | 54 | 1 |
| Dasher | 1973-1977 | 41 | 1 |
| Audi Fox | 1972-1976 | 41 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Quantum | 1986-1988 | 53 | 1 |
| Quantum 86 | 1985-1986 | 53 | 1 |
| Quantum 85 | 1984-1985 | 53 | 1 |
| Quantum | 1981-1984 | 53 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 325 platform | 33 | 1 | |
| 477 platform | 38 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Transmission Oil Sump is fitted on: Audi 80/90 1989-1991; Audi 100/Wagon 1989-1990; AUDI COUPE/3 1988-1994; Coupe 1988-1991; Audi 200 Turbo 1988-1990; Audi 100/Wagon 89 1988-1989; Audi 80/90 1987-1989; AUDI COUPE/2 88 1987-1987; Audi 5000 S/Wagon 1986-1988; S Coupe 1985-1988; Audi 5000 Turbo 1984-1988; 944 Coupe 1984-1988; Audi 4000 S 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi 5000 S/Wagon 84 1983-1984; Audi Coupe 1981-1987; 944 Coupe 1981-1985; Audi 4000 1981-1984; Audi 5000 1981-1982; PASSAT,-VARIANT/2 81 1980-1981; 924 S 1979-1985; Audi 5000 Turbo 1979-1982; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Dasher 1977-1980; Audi 5000 1977-1979; Audi Fox 1976-1978; Dasher 1973-1977; Audi Fox 1972-1976; Quantum 1986-1988; Quantum 86 1985-1986; Quantum 85 1984-1985; Quantum 1981-1984; 325 platform; 477 platform.
