010409530 O-Ring
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

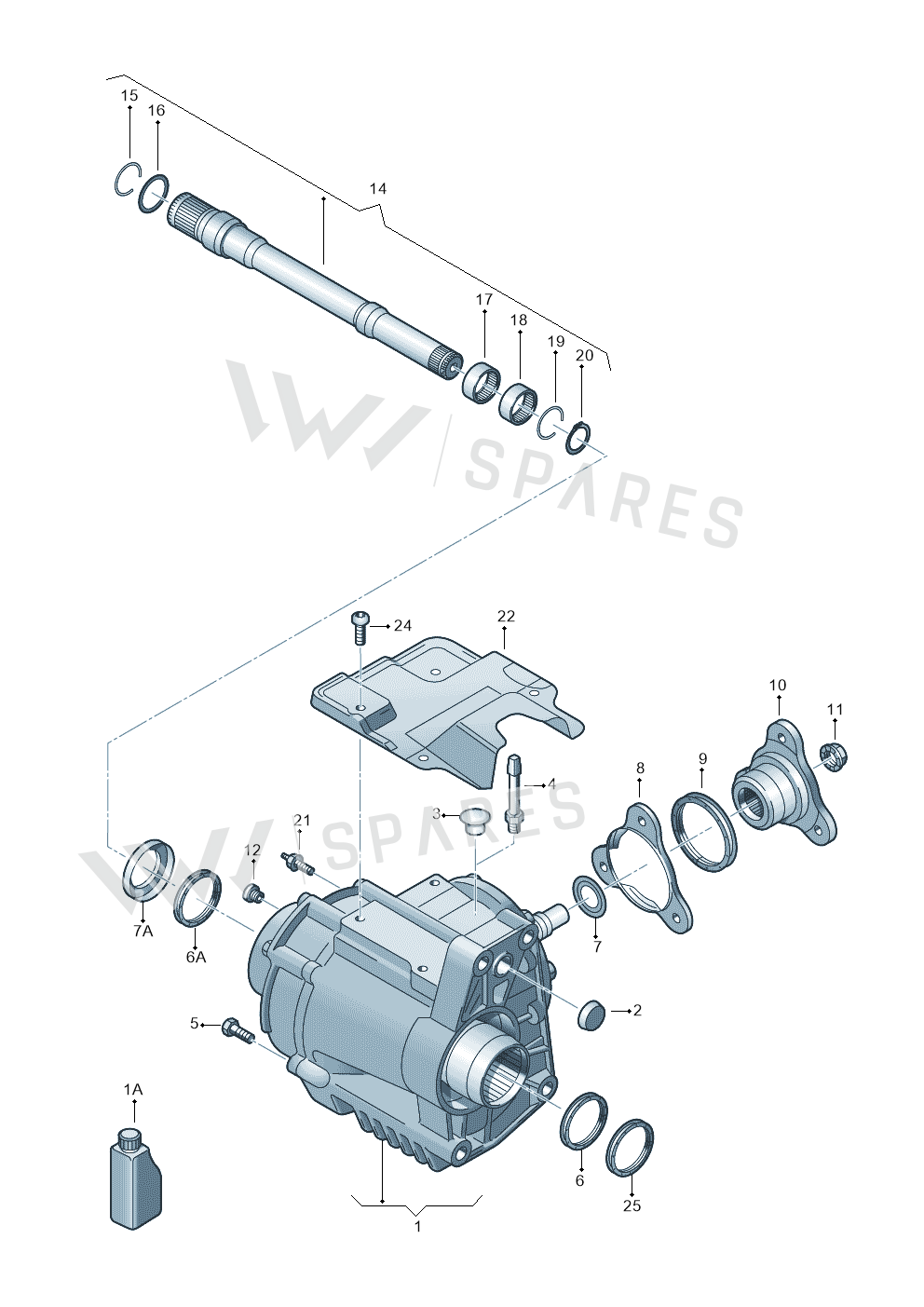

13 vehiclesO-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Gearbox 0AU409053T
- 1AAxle Oil G052145S2
- 2Cover N01191410
- 4Breather 3C0409831
- 5Bolt N10404402
- 6Seal 0A6409189E
- 6ASeal 0A6409596
- 7APart 0A6409120
- 8Part 02M409407
- 9Seal 02D525596B
- 10Flange 0A6409273A
- 10Flange 0A6409273B
- 11Part N90443801
- 12Bolt N90281802
- 14Flanshaft 0A6409351C
- 14Flanshaft 0A6409351
- 15Circlip 0A5409413B
- 17Sleeve 012409139A
- 19Circlip 012409419
- 20Ring 8N0407297
- 21Stud N90832903
- 25Seal 0A6409529
Vehicle fitment table13
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| passat estate | 2008-2011 | 16 | 1 |
| Passat/4Motion 08 | 2007- | 16 | 1 |
| Passat/4Motion | 2005-2007 | 16 | 1 |
| Jetta | 1989-1991 | 15 | X |
| Jetta 89 | 1988-1989 | 15 | X |
| Jetta 88 | 1987-1988 | 15 | X |
| Jetta 87 | 1986-1987 | 15 | X |
| Jetta 86 | 1985-1986 | 15 | X |
| Jetta 85 | 1984-1985 | 15 | X |
| Jetta | 1981-1984 | 15 | X |
| Scirocco | 1981-1983 | 15 | X |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Rabbit Conv./Cabrio | 1983-1993 | 15 | X |
| Rabbit Conv. | 1981-1983 | 15 | X |
Diagrams & fitment data powered by oemdiagrams.com
O-Ring is fitted on: passat estate 2008-2011; Passat/4Motion 08 2007-; Passat/4Motion 2005-2007; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; Jetta 1981-1984; Scirocco 1981-1983; Rabbit Conv./Cabrio 1983-1993; Rabbit Conv. 1981-1983.
