United States
012409170A Thrust Washer Assembly
- 012409170AThis pageNot stocked
Apr 2002 - 02B409170ANot stocked
May 2008 - 02M409170ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

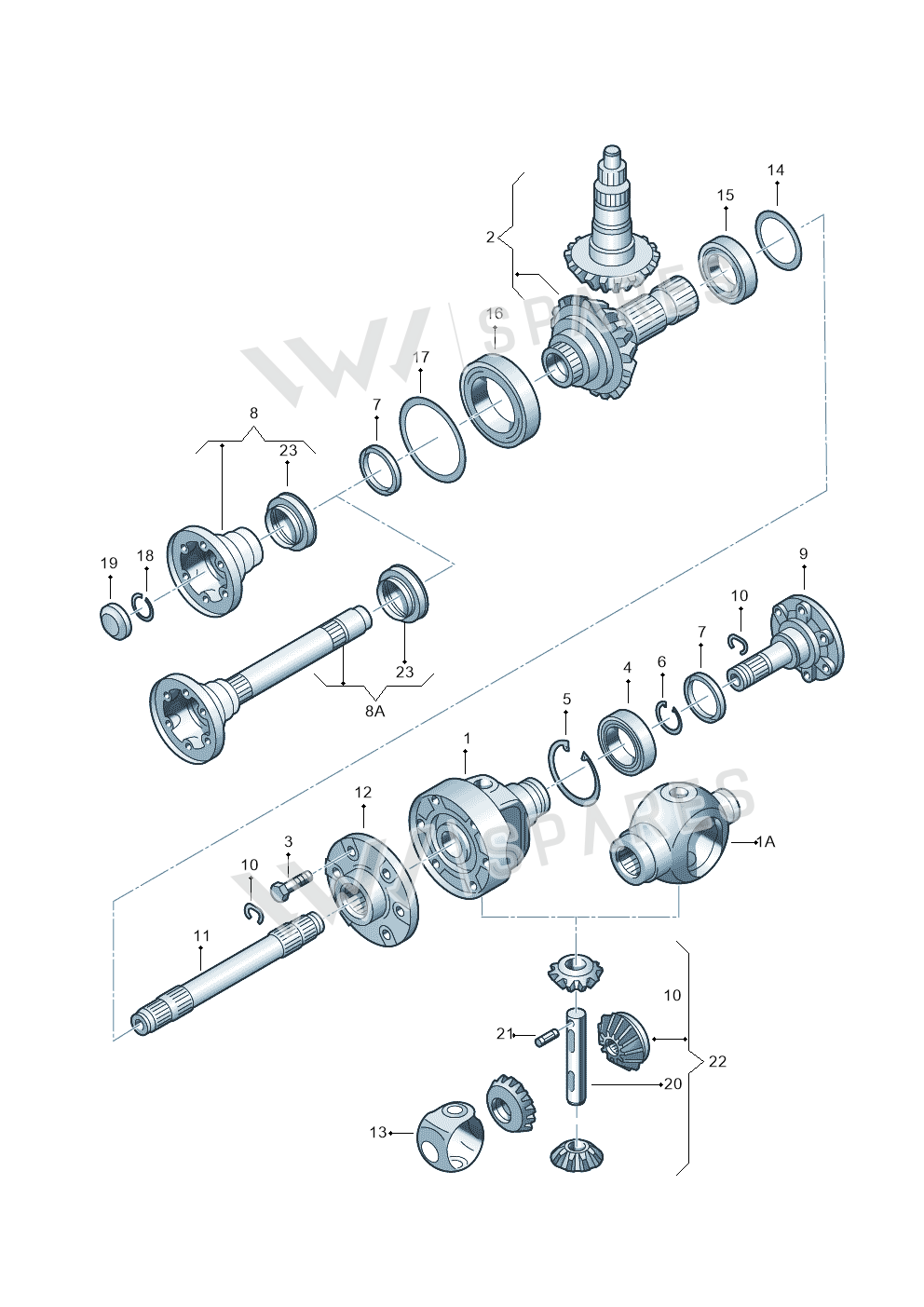

12 vehiclesThrust Washer Assembly — locate Thrust Washer Assembly in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1AHousing 02D525121B
- 4Bearing 02D525193
- 5Ring N0122981
- 6Ring N0123722
- 7Seal 02D409399
- 8AFlanshaftLeft02D525351J
- 9FlanshaftRight02D409355C
- 10Circlip 012409413
- 13Thr Washer 02M409170A
- 14Shims 02B498210
- 15Mounting 002517185A
- 16Mounting 02D409123A
- 17Washer 02D409247A
- 17Washer 02D409247B
- 17Washer 02D409247C
- 17Washer 02D409247D
- 17Washer 02D409247E
- 17Washer 02D409247F
- 17Washer 02D409247G
- 17Washer 02D409247H
- 17Washer 02D409247J
- 17Washer 02D409247K
- 17Washer 02D409247L
- 17Washer 02D409247M
- 17Washer 02D409247
- 20In Shaft - Differential Pinion Shaft - 005409177
- 21Sleeve N90538701
- 22Diff Pinio 012498081C
- 23Pipe 02B409319
Vehicle fitment table12
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2005- | 13 | 1 | ||
| ALHAMBRA/4MOTION | 2002-2005 | 13 | 1 | ||
| PASSAT 00> | 2000- | 5 | 1 | G0E | |
| Passat/4Motion/W8 | 2000-2002 | 5 | 1 | DV | |
| ALHAMBRA/4MOTION | 2000-2002 | 13 | 1 | ||
| Boxster S | 1996-2004 | 5 | 1 | CWA/DVY/EFD | |
| Audi A6/Wagon 96 | 1995-1996 | 5 | 1 | CNX | |
| TRANSPORTER SYNCRO | 1995-1995 | 4, 21 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 5 | 1 | G0E | |
| SANTANA 2000 "CN"96>04 | 1996-2004 | 5 | 1 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 4 | 1 | ||
| AUDI 100 (CHINA) | 1988-1995 | 5 | 1 | AMK,AXG |
Diagrams & fitment data powered by oemdiagrams.com
Thrust Washer Assembly is fitted on: ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; ALHAMBRA/4MOTION 2000-2002; Boxster S 1996-2004; Audi A6/Wagon 96 1995-1996; TRANSPORTER SYNCRO 1995-1995; PASSAT LINGYU "CN."06> 2005-; SANTANA 2000 "CN"96>04 1996-2004; Eurovan F>>70-T 96 1995-1995; AUDI 100 (CHINA) 1988-1995.
