012409228 Spacer Ring
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

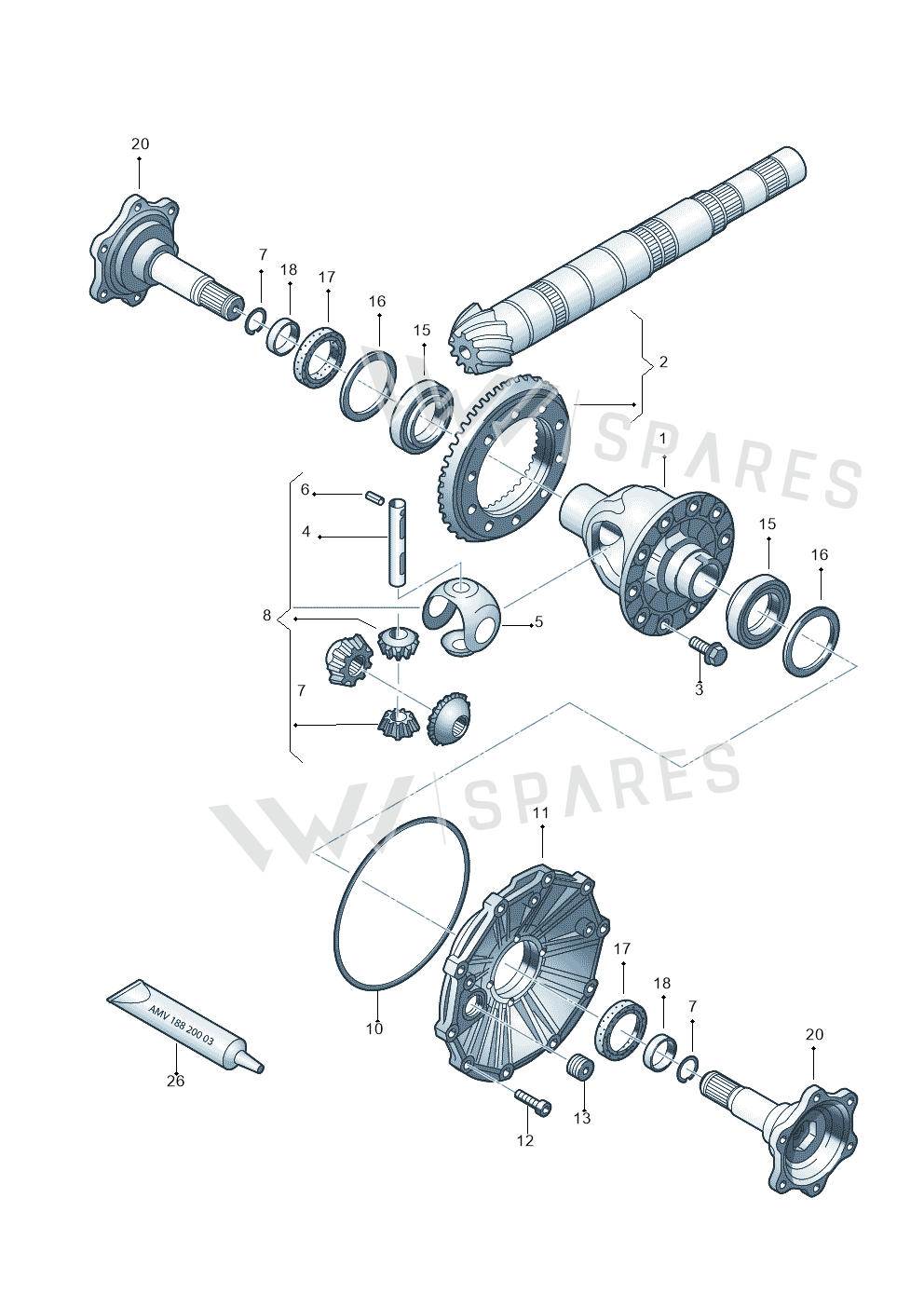

27 vehiclesSpacer Ring — locate Spacer Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Housing 01X409121A
- 2Gear Set 01X409143AA
- 2Gear Set 01X409143T
- 2Gear Set 01X409143AF
- 2Gear Set 02X409143A
- 2Gear Set 02X409143M
- 2Gear Set 02X409143N
- 3Bolt N90361401
- 4In Shaft - Differential Pinion Shaft - 005409177
- 5Thr Washer 02B409170A
- 6Part N10072601
- 7Circlip 012409413
- 8Diff Pinio 01X498081
- 10Seal Ring N90514401
- 11Cover 01X409131B
- 12Bolt N10607002
- 13Screw N10037103
- 15MountingRight002517185A
- 15MountingLeft01X409123
- 16ShimRight012409387AK
- 16ShimRight012409387AL
- 16ShimRight012409387AM
- 16ShimRight012409387AN
- 16ShimRight012409387AP
- 16ShimRight012409387AQ
- 16ShimRight012409387AR
- 16ShimRight012409387AS
- 16ShimRight012409387AT
- 16ShimRight012409387BA
- 16ShimRight012409387BB
- 16ShimLeft012409387DN
- 16ShimLeft012409387DP
- 16ShimLeft012409387DQ
- 16ShimLeft012409387DR
- 16ShimLeft012409387DS
- 16ShimLeft012409387DT
- 16ShimLeft012409387EA
- 16ShimLeft012409387EB
- 16ShimLeft012409387EC
- 16ShimLeft012409387ED
- 16ShimLeft012409387DM
- 17Seal Washer 016409399B
- 20Flanshaft 012409343AD
- 20Flanshaft 012409343AE
- 26Seal Greas G052128A1
- 26Seal Comp AMV18820003
Vehicle fitment table30
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 18 | 2 | G0K | |
| Exeo ST Reference | 2008-2011 | 18 | 2 | ||
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 16, 18 | 2 | G0C | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 18 | 2 | G0L | |
| Audi A4/S4/Av./qu. 05> | 2005- | 16, 18 | 2 | HFD | G0C |
| Audi A6/S6/Avant/qu. 05> | 2004- | 18 | 2 | G0K | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 16, 18 | 2 | G0C | |
| PASSAT/4MOTION/W8 | 2002-2005 | 16 | 2 | DVZ,EEN,EZG, | EA |
| SUPERB 02> | 2001- | 16 | 2 | DVZ,FHN,EZG | |
| Audi A4/S4/Av./qu. | 2001-2004 | 16, 18 | 2 | ENN, | FJU |
| Audi A6/Wagon/quattro | 2001-2004 | 16 | 2 | EHV,FHN,EAA, | |
| PASSAT 00> | 2000- | 16 | 2 | 90MM | DW |
| Passat/4Motion/W8 | 2000-2002 | 16 | 2 | DV | |
| Audi A8 quattro | 1999-2002 | 16 | 2 | ||
| Audi A4/Avant | 1999-2001 | 16 | 2 | DV | |
| AUDI A8 | 1998-2002 | 16 | 2 | ||
| Audi A6/Avant | 1997-2001 | 16 | 2 | DHW,DSC,DWK, | |
| Passat | 1997-2000 | 16 | 2 | DRE,D | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 16 | 2 | DHF, | |
| Audi A8 | 1996-1998 | 16 | 2 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 16 | 2 | CPC,CP |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 18 | 2 | G0K | |
| AUDI A4 "CN."06> | 2005- | 16 | 2 | ||
| PASSAT LINGYU "CN."06> | 2005- | 16 | 2 | 90MM | GF |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 16 | 2 | GGG | |
| AUDI A6L CHINA | 1999-2005 | 16 | 2 | DVZ,EAA,EMG |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 16 |
Listed without a diagram position (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6/Wagon F >4A-W | 1996-1997 | 2 | CNY,C | ||
| Audi A6/Wagon 96 | 1995-1996 | 2 | CNX | ||
| Audi Cabrio. | 1993-1998 | 2 | AXG,CAC |
Diagrams & fitment data powered by oemdiagrams.com
Spacer Ring is fitted on: Audi A6 2.7 TDI 2008-2011; Exeo ST Reference 2008-2011; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; Audi A4/Avant 1999-2001; AUDI A8 1998-2002; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A4 F>8D-W-.. 1995-1997; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; PASSAT LINGYU "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005; 3B0 platform.
