012409343F Flanged Shaft
- 012409343CNot stocked
Jun 1996 - 012409343FThis pageDiscontinued
Aug 2016
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

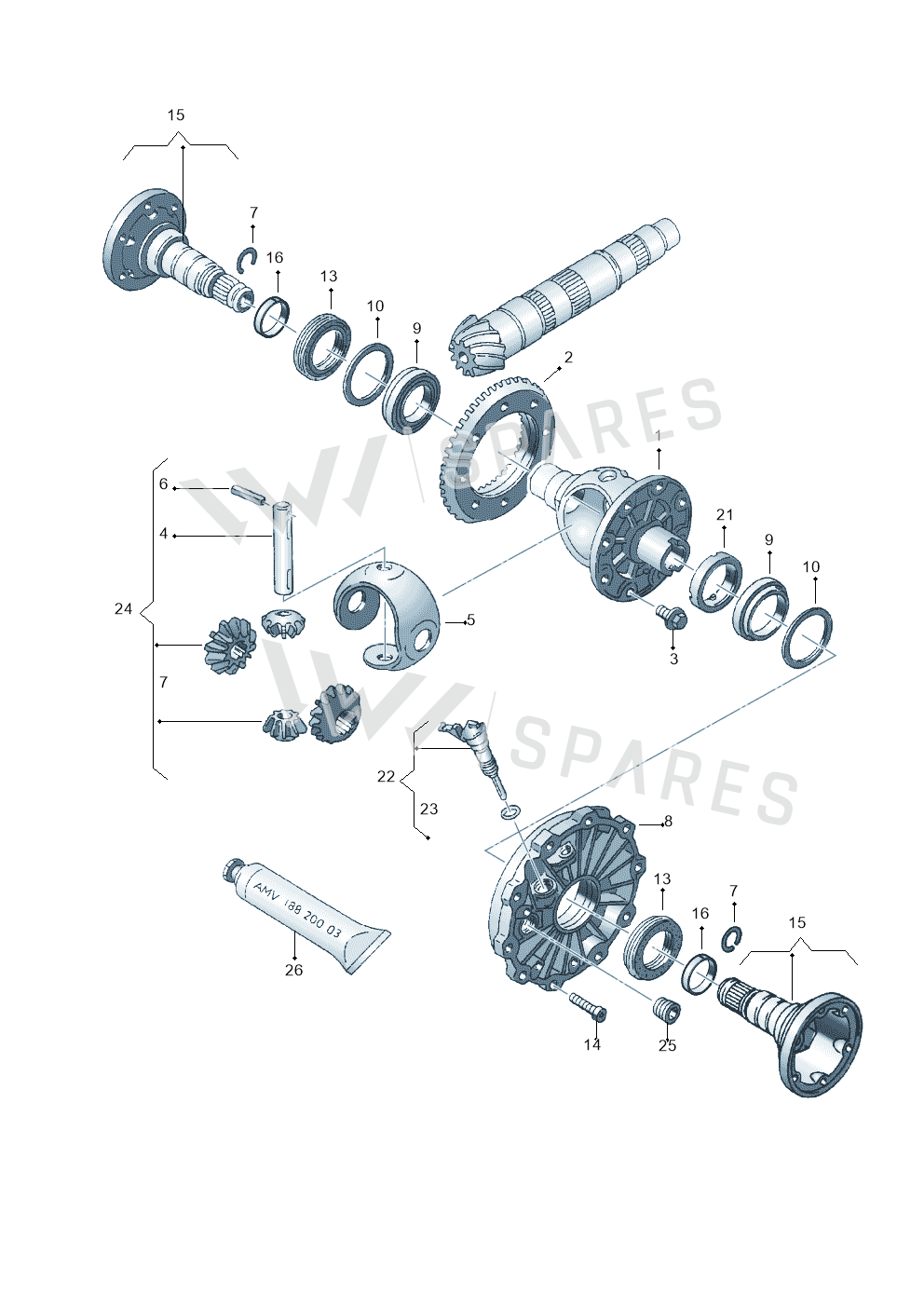

16 vehiclesFlanged Shaft — locate Flanged Shaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Housing 012409121E
- 2Gear Set 01A409143F
- 2Gear Set 01A409143G
- 3Bolt N90361401
- 4In Shaft - Differential Pinion Shaft - 012409177B
- 5Thr Washer 02J409170
- 6Part N10072501
- 7Circlip 012409413A
- 8Cover 012409131H
- 9Mounting 002517185
- 10Shim 012409387A
- 10Shim 012409387B
- 10Shim 012409387C
- 10Shim 012409387D
- 10Shim 012409387E
- 10Shim 012409387F
- 10Shim 012409387G
- 10Shim 012409387J
- 10Shim 012409387
- 10Shim 012409387H
- 13Seal Washer 016409399B
- 14Bolt N90366001
- 15Flanshaft 012409343E
- 21Drivewheel 012409182C
- 22Sensor 012409191D
- 23Seal Ring N90368401
- 24Diff Pinio 012498081G
- 25Screw 012301127F
- 26Seal Comp AMV18820003
Vehicle fitment table16
Europe (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT 00> | 2000- | 15 | 2 | DWB,FSN | G0C |
| Passat/4Motion/W8 | 2000-2002 | 15 | 2 | EMV | |
| Audi A4/Avant | 1999-2001 | 15 | 2 | DWA,DWB,DWH, | |
| Audi A6/Avant | 1997-2001 | 15 | 2 | DDU | |
| Passat | 1997-2000 | 15 | 2 | DHZ,DJA,DWA, | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 15 | 2 | DDU,DJA,DHZ, | |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 15 | 2 | DJT | |
| Audi A6/Wagon F >4A-W | 1996-1997 | 15 | 2 | CPA,DHZ,DHJ | |
| Audi A4 F>8D-W-.. | 1995-1997 | 15 | 2 | DDB,DEM,DHZ, | |
| Audi A6/Wagon 96 | 1995-1996 | 15 | 2 | CPA,DDB,DEN | |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 15 | 2 | DBE | |
| Audi A6/Wagon 95 | 1994-1995 | 15 | 2 | CPA | |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 15 | 2 | CPT | |
| Audi Cabrio. | 1993-1998 | 15 | 2 | DHZ,DWA |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L CHINA | 1999-2005 | 15 | 2 | DWA |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 15 |
Diagrams & fitment data powered by oemdiagrams.com
Flanged Shaft is fitted on: PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Audi A4/Avant 1999-2001; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; Audi A6/Wagon 95 1994-1995; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi Cabrio. 1993-1998; AUDI A6L CHINA 1999-2005; 3B0 platform.
