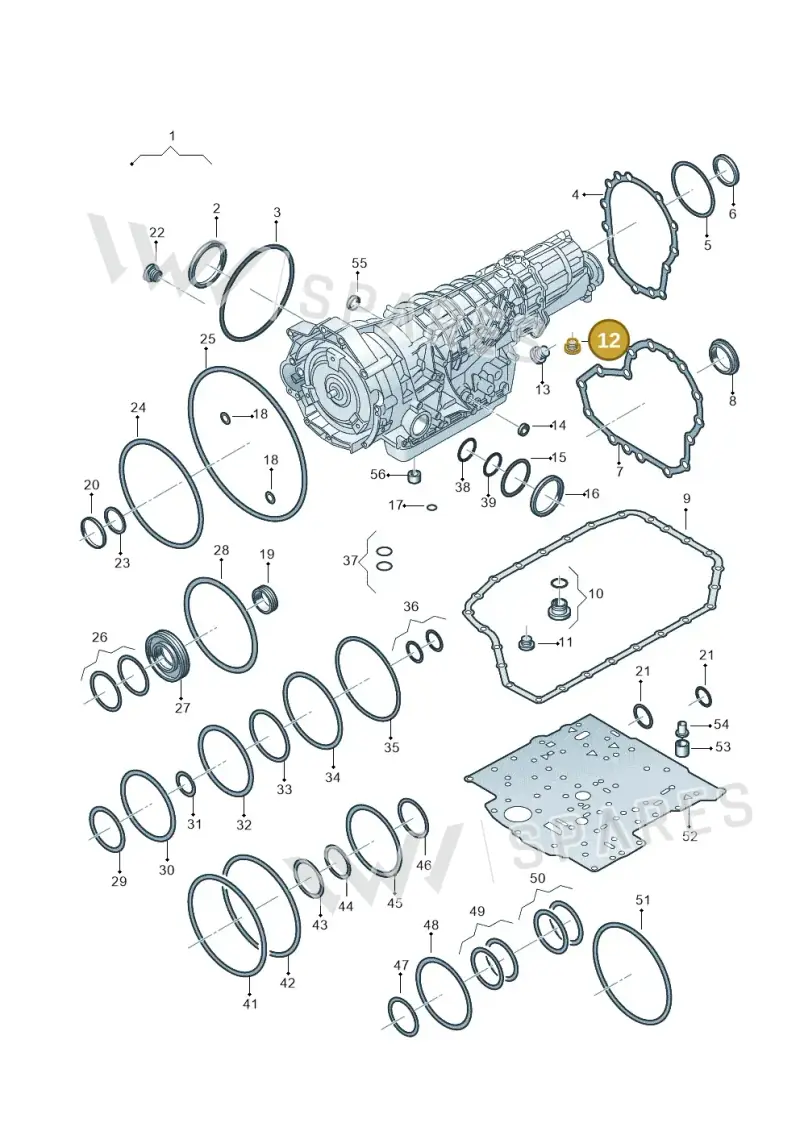

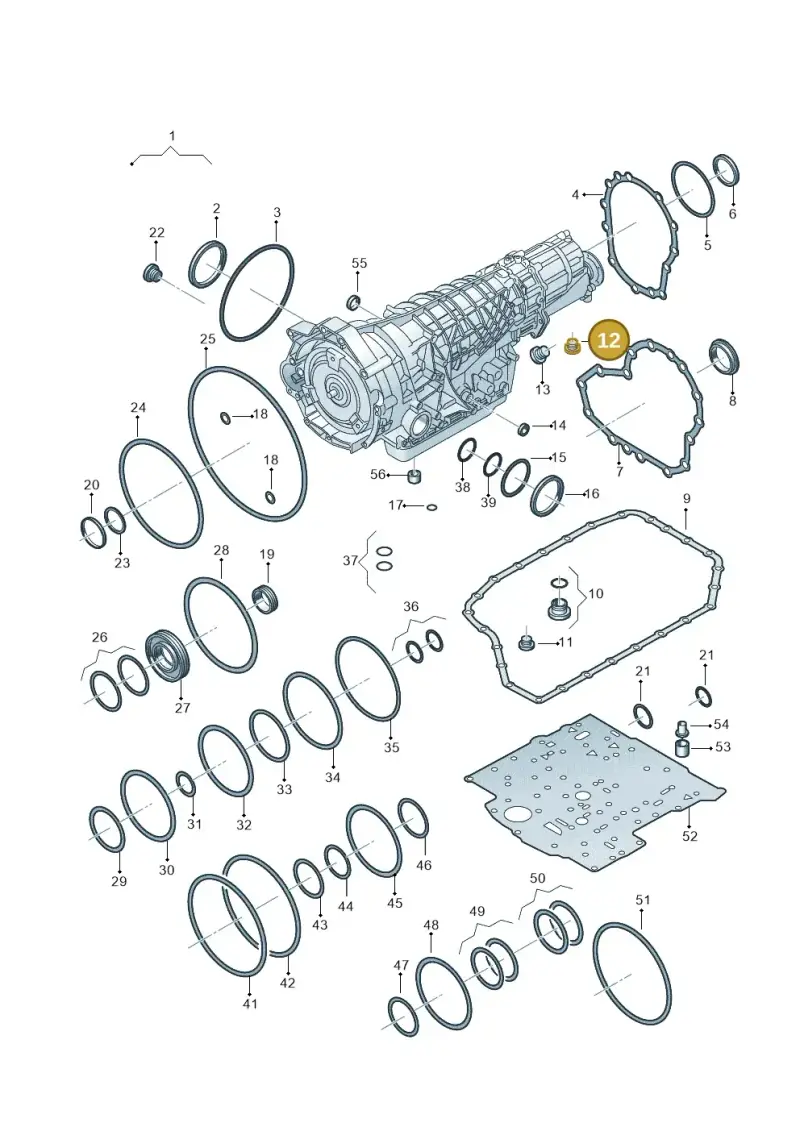

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal Bolt, part number 01V409057A. This seal bolt is designed to seal and secure components within the transmission, preventing fluid leaks and maintaining system integrity. It is located at position 12 on the diagram, within the transmission assembly. Its integrated sealing ring ensures a tight fit, and genuine OEM parts guarantee the correct sealing material and bolt specifications for reliable performance.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.8 × 1.6 × 1.6 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
33 vehiclesSeal Bolt With Sealing Ring — locate 01V409057A Volkswagen Seal Bolt | Transmission in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Gask Set 01L398211
- 2Seal 01V409399
- 3Seal Ring 01V409133A
- 4Seal 01V321381A
- 5Seal Ring 01V409133B
- 6Seal 018409399B
- 7Seal 01L321381
- 8Seal 01V409400A
- 9Gasket 01L321371
- 10Seal Ring 01V321379
- 11Bolt 018321377B
- 13Bolt 01V409057
- 14Seal Washer 09F409189
- 15Seal Ring 01V409133
- 16Seal 01L409399
- 17Seal Ring 01F321419
- 18Seal Ring 01F321386C
- 19Seal 01V409400B
- 20Seal Washer 018321243
- 21Seal Ring 01V927322A
Compatible / alternative parts(12)
Vehicle fitment table33
Europe (28)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 12 | 1 | |
| phaeton 4motion | 2008-2010 | 12 | 1 | |
| PHAETON 08> | 2007- | 12 | 1 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 18, 25 | 1 | G0Q |
| Phaeton (lang) | 2003-2006 | 12, 18 | 1 | |
| Audi RS6 qu. | 2003-2004 | 12, 25 | 1 | G0Q |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 18, 25 | 1 | G0Q |
| PASSAT/4MOTION/W8 | 2002-2005 | 18, 25 | 1 | |
| SUPERB 02> | 2001- | 18 | 1 | |
| Audi A4/S4/Av./qu. | 2001-2004 | 18, 25 | 1 | G0Q |
| Audi A6/Wagon/quattro | 2001-2004 | 18, 12 | 1 | G0Q |
| PASSAT 00> | 2000- | 18 | 1 | |
| Audi A6 Allroad qu. | 2000-2005 | 18, 25 | 1 | G0Q |
| Passat/4Motion/W8 | 2000-2002 | 18, 25 | 1 | |
| Audi A8 quattro | 1999-2002 | 18, 12 | 1 | |
| Audi A4/Avant | 1999-2001 | 18 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 18, 25 | 1 | |
| AUDI A8 | 1998-2002 | 18 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 18, 25 | 1 | |
| Audi A6/Avant | 1997-2001 | 18 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 18, 12 | 1 | |
| Passat | 1997-2000 | 18 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 18 | 1 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 18, 25 | 1 | |
| Audi A8 | 1996-1998 | 18 | 1 | |
| Audi A8 qu. | 1996-1998 | 18, 12 | 1 | |
| Audi A4 F>8D-W-.. | 1995-1997 | 18 | 1 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 18, 25 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 18, 25 | 1 | |
| PASSAT LINGYU "CN."06> | 2005- | 18 | 1 | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 25 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 18 | |||
| 3B0 platform | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
