020301241C Locking Screw
- 020301241FNot stocked
Apr 1995 - 020301241HSuperseded
May 2009 - 020301241CThis pageDiscontinued
May 2023
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

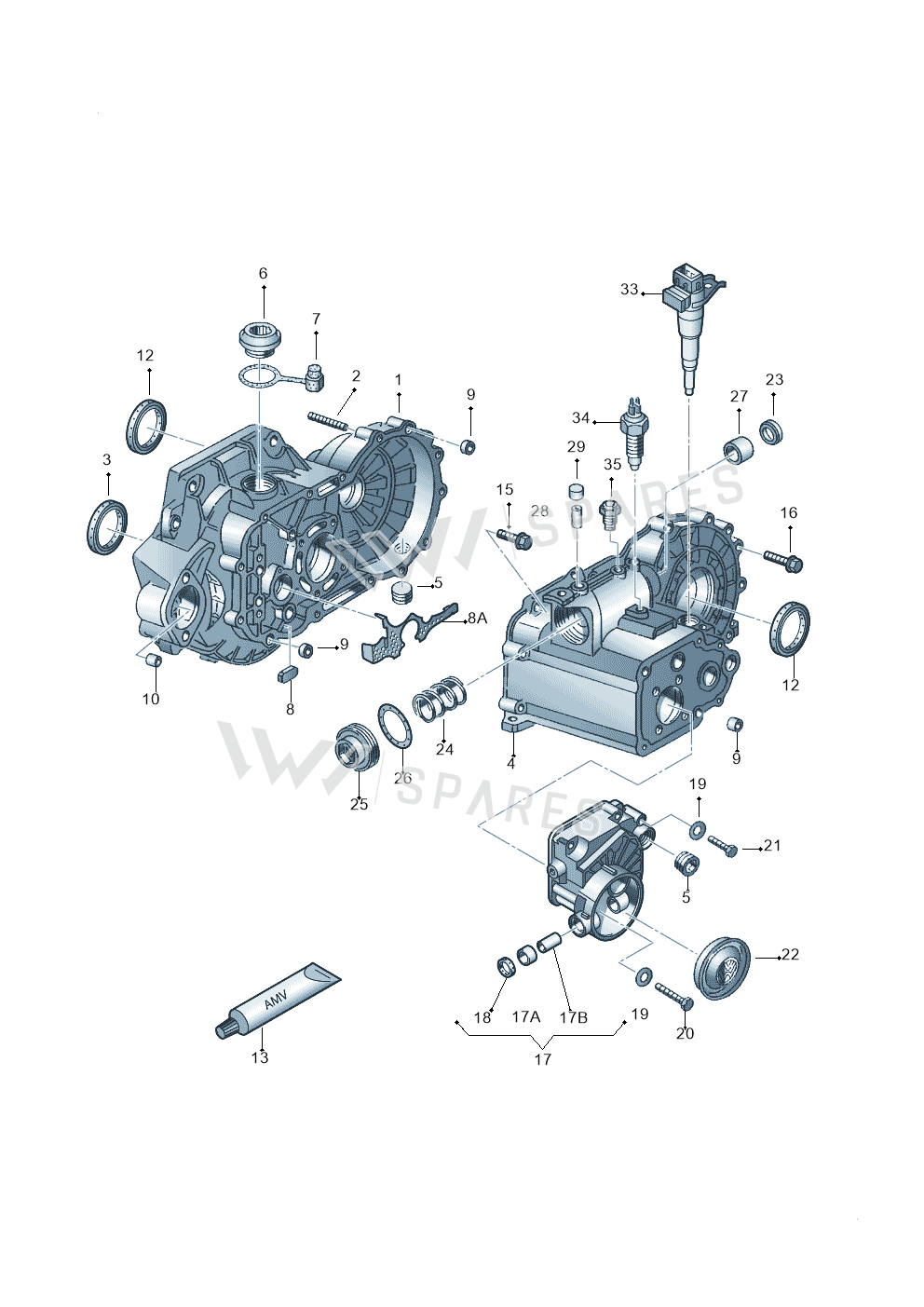

12 vehiclesLocking Screw — locate Locking Screw in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Housing 02K301107K
- 2Bolt N0145034
- 3Seal Washer 020311113B
- 4Housing 02K301103E
- 5Screw WHT001937
- 6Screw 020301129D
- 7Part 020301132
- 8Magnet 084301143A
- 8AStrainer 02K301555A
- 9Sleeve 02M301153A
- 13Seal Comp AMV18820003
- 15Bolt N90063602
- 16Bolt N0195463
- 17Cover 02K301205A
- 18Seal Ring 02K301733A
- 19Washer N01155813
- 20Bolt N0103857
- 21Bolt N0402622
- 22Cover 02K141073
- 23Seal Washer 020301227F
- 24Press Spring 020301228G
- 25Cover 020301232E
- 26Seal Ring N90354301
- 27Sleeve 020311648
- 28Sleeve 012301474A
- 29Ap Cap For Venting The Gearbox Cap For Venting 014301485
Vehicle fitment table12
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 2001-2006 | 35, 7B | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 35 | 1 | G0C | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 7B | 1 | ||
| IBIZA | 1999-2002 | 35, 7B | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 35, 7B, 4 | 1 | ||
| Golf | 1998-2000 | 4 | 1 | CZM, | DYN |
| INCA (SEAT-VAN) | 1995-2003 | 35, 7, 7B | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 35, 7, 7B | 1 | ||
| Polo Classic 96 | 1995-1996 | 7 | 1 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 7 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| JETTA (FAW) 91> | 1991- | 8A | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 35 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Locking Screw is fitted on: TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; OCTAVIA/COMBI/4X4 01> 2000-; IBIZA 1999-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; INCA (SEAT-VAN) 1995-2003; CADDY-KOMBI/KASTEN 1995-2003; Polo Classic 96 1995-1996; Ibiza/Cordoba (SEAT) 1992-1996; JETTA (FAW) 91> 1991-; 1J0 platform.
