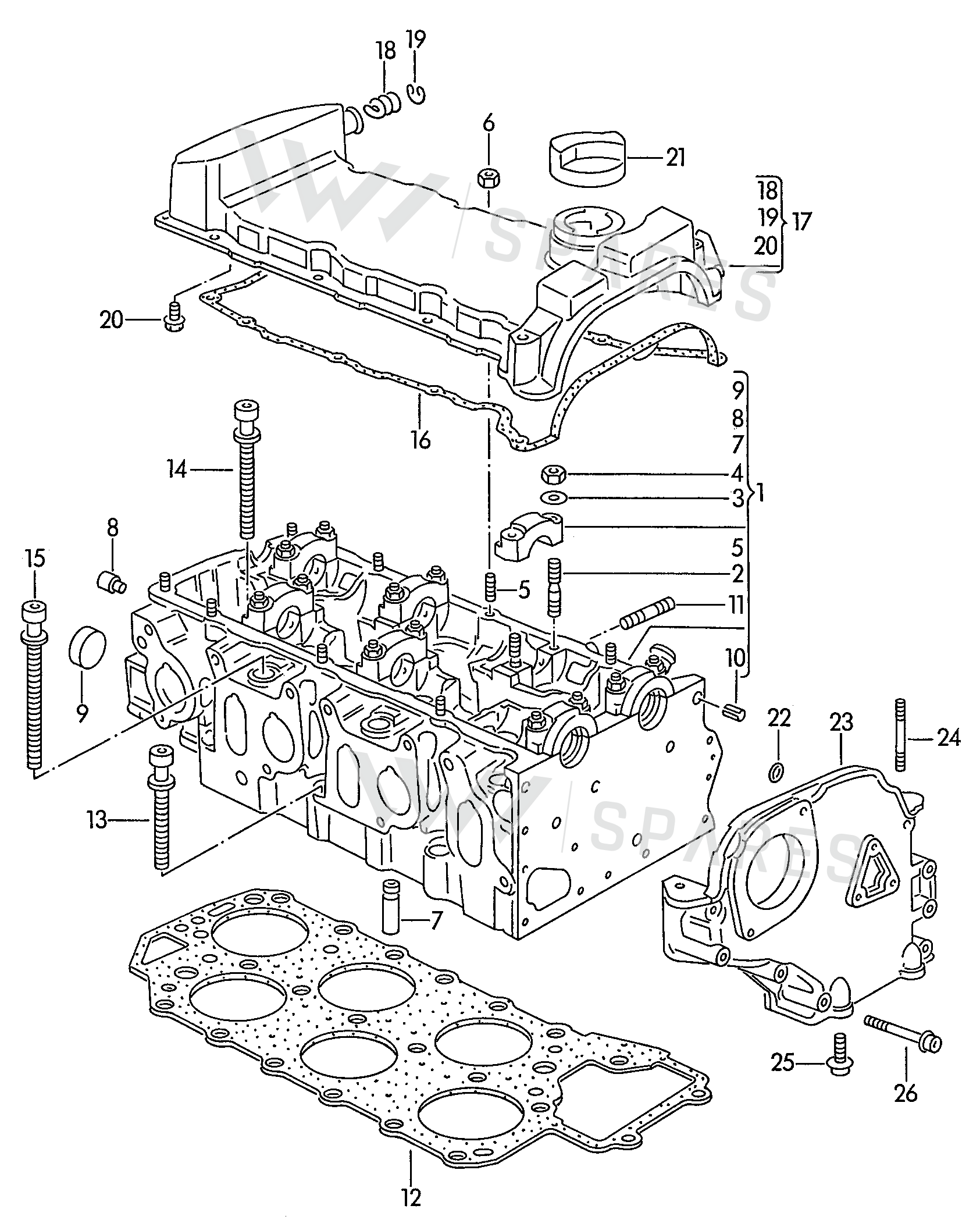

Cylinder Head exploded parts diagram — Passat · 1989-1991, position 1
Exploded view
Passat · 1989-1991 · position 1Full diagram ↓
021103351

021103351 Cylinder Head

£1,487.08
£1,228.99 excl. VAT
Supersession roadforks into 2
  1. 021103351This pageNot stocked
    Nov 1996
  2. 021103351ANot stocked
    Jan 2003
  1. 021103265XCurrent · not stocked
  2. 021103265AXDiscontinued
    Jun 2008
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Cylinder Head — locate Cylinder Head in the official exploded view and explore the surrounding assembly.

Parts in this assembly20
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
Passat1989-199111

Diagrams & fitment data powered by oemdiagrams.com

Cylinder Head is fitted on: Passat 1989-1991.
