022103101C Cylinder Block With Pistons
- 022103101Not stocked
Nov 2002 - 022103101ANot stocked
Aug 2002 - 022103101CThis pageNot stocked
Oct 2009
- Discontinued Mar 2018022103011NDiscontinued
Mar 2018 - Discontinued Mar 2021021103157ADiscontinued
Mar 2021
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

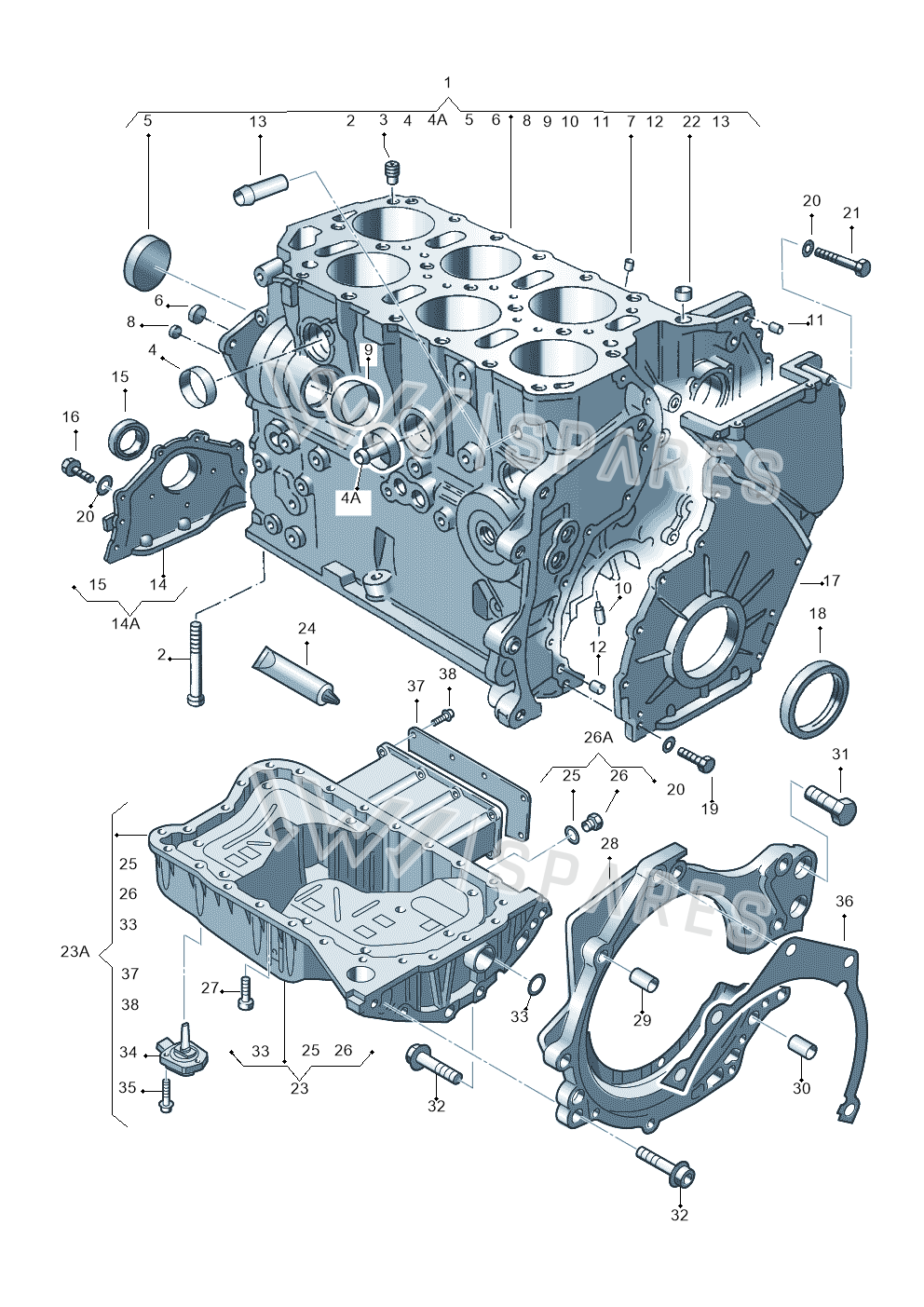

5 vehiclesCylinder Block With Pistons — locate Cylinder Block With Pistons in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Cylinder Block 071103101
- 1Cylind Hou 066103011AD
- 2Screw N90365801
- 3Valve 077103175B
- 4Cover 036103113A
- 4AUnion 035103111B
- 5Cover 074103113A
- 6Cover N0119034
- 7Bungs 113101115A
- 8Cover N0119103
- 9Cover N01191410
- 10Vent 021103157A
- 11Part N0432072
- 12Sleeve 022103139
- 13Connection 063133382
- 13Connection 071103233
- 14Flange 022103153
- 15Seal 038103085E
- 16Bolt N10082912
- 17Flange 022103173A
- 17Flange 066103173G
- 17Flange 071103173B
- 18Seal 021103051C
- 19Bolt N0102873
- 20Washer N01152426
- 21Bolt N10116003
- 22Sleeve N90502601
- 23Oil Sump 021103603N
- 23Oil Sump 021103601L
- 23Oil Sump 066103601F
- 24Seal D176404A2
- 25Seal Ring N0138493
- 26Plug 071103193
- 26ABolt N90813202
- 27Bolt N10124408
- 33Bungs N10041102
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2002-2005 | 1 | 1 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 1 | ||
| ALHAMBRA/4MOTION | 2000-2002 | 1 | 1 | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta USA | 2001-2005 | 1 | 1 | BDF |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block With Pistons is fitted on: ALHAMBRA/4MOTION 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; ALHAMBRA/4MOTION 2000-2002; TOLEDO/LEON/LEON-4 1998-2001; Jetta USA 2001-2005.
