022103265BX Cylinder Head With Valves And Camshaft
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

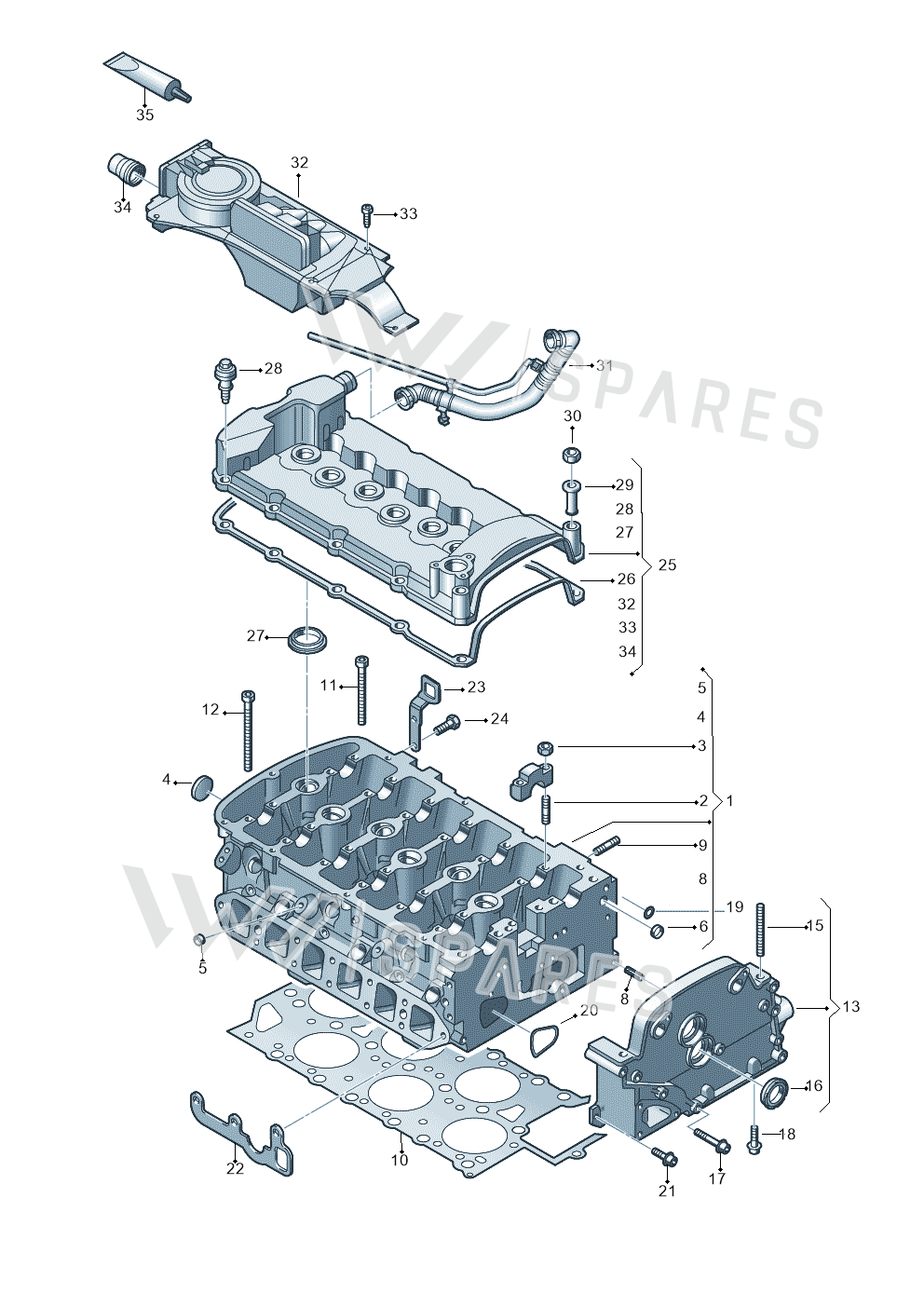

15 vehiclesCylinder Head With Valves And Camshaft — locate Cylinder Head With Valves And Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Cylinder Head 022103351D
- 2Bolt 030103397A
- 3Collar Nut N90279006
- 4Cover N90898202
- 5Cover N0119103
- 6Cover N10218601
- 8Part N90332701
- 9Bolt N0444115
- 10Seal 022103383M
- 11Screw 022103384L
- 12Screw 022103384M
- 13Cover 066109122H
- 15Bolt N10277103
- 16Seal 066109091A
- 17Screw N10102302
- 18Screw N90355902
- 19Seal Ring N90041102
- 20Seal Ring 022121119A
- 21Bolt N10124408
- 22Strap 022103390
- 23Retainer 022103392
- 24Screw N10638901
- 25Cover 022103429AA
- 26Seal 022103483E
- 27Seal 022103484F
- 28Bolt 022103831B
- 29Sleeve 022103831C
- 30Collar Nut N0150829
- 31Hose 022103474J
- 32Separator 022103515B
- 35Locking D000600A2
Vehicle fitment table15
Europe (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| transp. caravelle | 2008-2009 | 1 | 1 | BKK | MY7 |
| transp. dropside | 2008-2009 | 1 | 1 | MY7 | |
| TRANSPORTER GESCHL. 08 | 2007- | 1 | 1 | MY7 | |
| TRANSPORTER OFFEN 08 | 2007- | 1 | 1 | MY7 | |
| PHAETON 08> | 2007- | 1 | 1 | D9J | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 1 | 1 | MY7 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 1 | 1 | MY7 | |
| Touareg | 2005-2006 | 1 | 1 | D9J | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 1 | 1 | MY7 | |
| TRANSPORTER 06 | 2005-2006 | 1 | 1 | MY7 | |
| Phaeton (lang) | 2003-2006 | 1 | 1 | ||
| Touareg | 2003-2005 | 1 | 1 | M35 | |
| TRANSPORTER | 2003-2005 | 1 | 1 | MY7 | |
| Audi TT Coupe/Roadster | 2002-2006 | 1 | 1 | D6D |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 1 | 1 | BFH,BML |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head With Valves And Camshaft is fitted on: transp. caravelle 2008-2009; transp. dropside 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; PHAETON 08> 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; Phaeton (lang) 2003-2006; Touareg 2003-2005; TRANSPORTER 2003-2005; Audi TT Coupe/Roadster 2002-2006; Golf 'R32' n. "USA" 2004-2004.
