022905715C Ignition Coil
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Order processing for SEAT typically takes 1-3 business days.
General delivery timeframes:
- VAG Group (Volkswagen, Audi, SEAT, Škoda): 1-3 business days
- BMW & Mercedes-Benz: 2-5 business days
- Other manufacturers: 3-7 business days
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

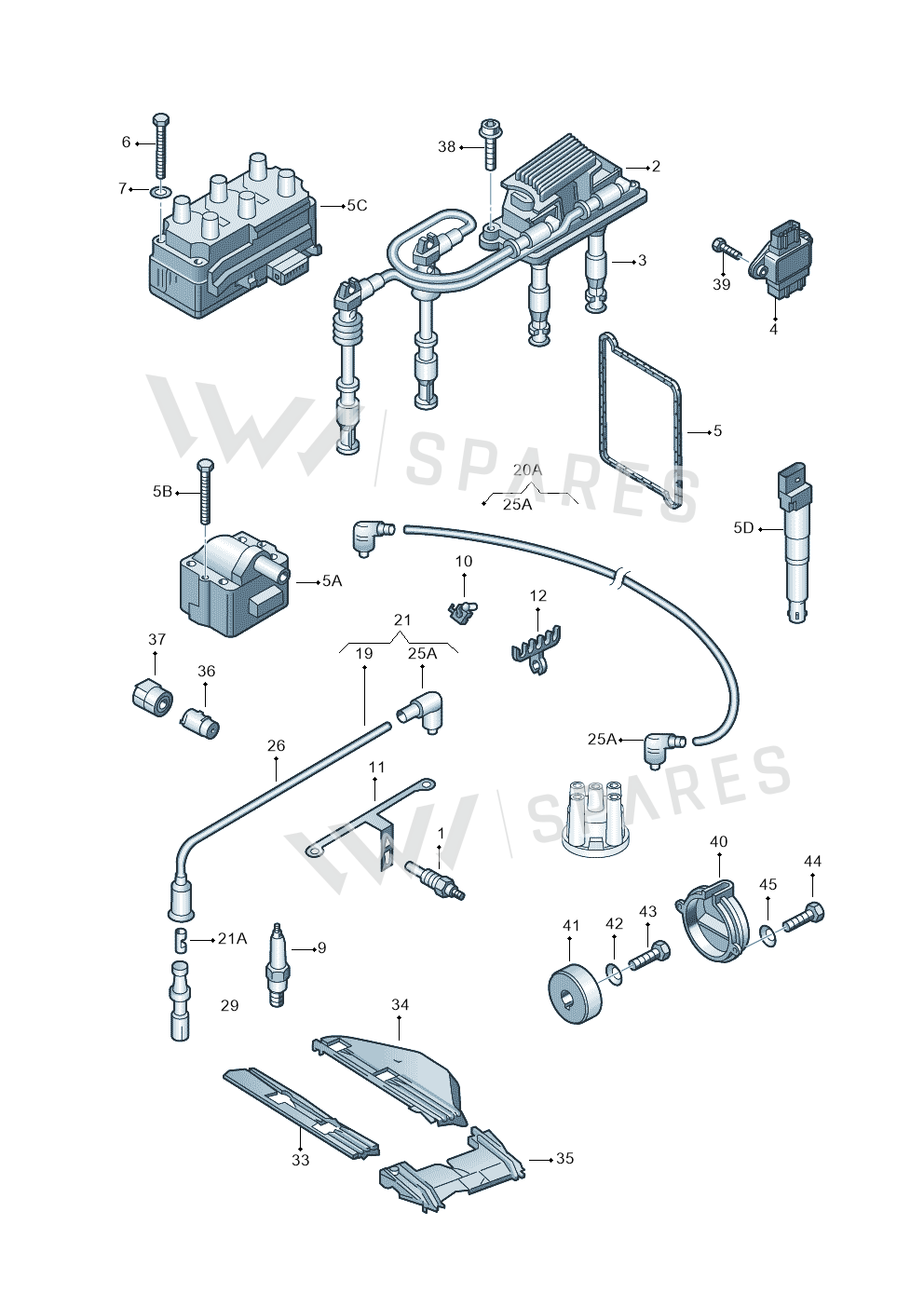

9 vehiclesIgnition Coil — locate Ignition Coil in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Glow PlugLeftN10579201
- 1Glow PlugRightN10579202
- 1Glow Plug N10140105
- 5ATransformRight032905106F
- 5BScrew N10247505
- 5DIgnit Coil 06B905115E
- 9Spark Plug 101000062AB
- 9Spark Plug 101000063AA
- 9Spark Plug JZW905603
- 9Spark Plug JZW905603A
- 9Spark Plug 101000033AA
- 21Cable 06A905430AC
- 21Cable 06A905430AD
- 21Cable 06A905430AE
- 21Cable 06A905430AF
- 40Hallsensor 06A905161A
- 40Hallsensor 06A905161B
- 40Hallsensor 058905161B
- 41Rotor 06B905234A
- 42Washer 078905149A
- 43Bolt N01024222
- 44Bolt N01021710
- 45Washer N01152426
Vehicle fitment table9
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Sharan | 2008-2010 | 5D | 6 | AYL | |
| Alhambra | 2006-2010 | 5D | 6 | AYL | |
| ALHAMBRA/4MOTION | 2005- | 5D | 6 | AYL | |
| ALHAMBRA/4MOTION | 2002-2005 | 5D | 6 | AYL | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 6 | 5 | AQN | |
| ALHAMBRA/4MOTION | 2000-2002 | 5D | 6 | AYL | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 6 | 5 | AQN |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf "BR.","USA"03>07 | 2002-2007 | 6 | 6 | BDF | MR0 |
| Golf BR/US | 2001-2002 | 6 | 6 | "PR."+BDF |
Diagrams & fitment data powered by oemdiagrams.com
Ignition Coil is fitted on: Sharan 2008-2010; Alhambra 2006-2010; ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; ALHAMBRA/4MOTION 2000-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf "BR.","USA"03>07 2002-2007; Golf BR/US 2001-2002.
