025903017X Alternator
- 025903017XThis pageNot stocked
Mar 2004 - 026903017AXDiscontinued
Mar 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

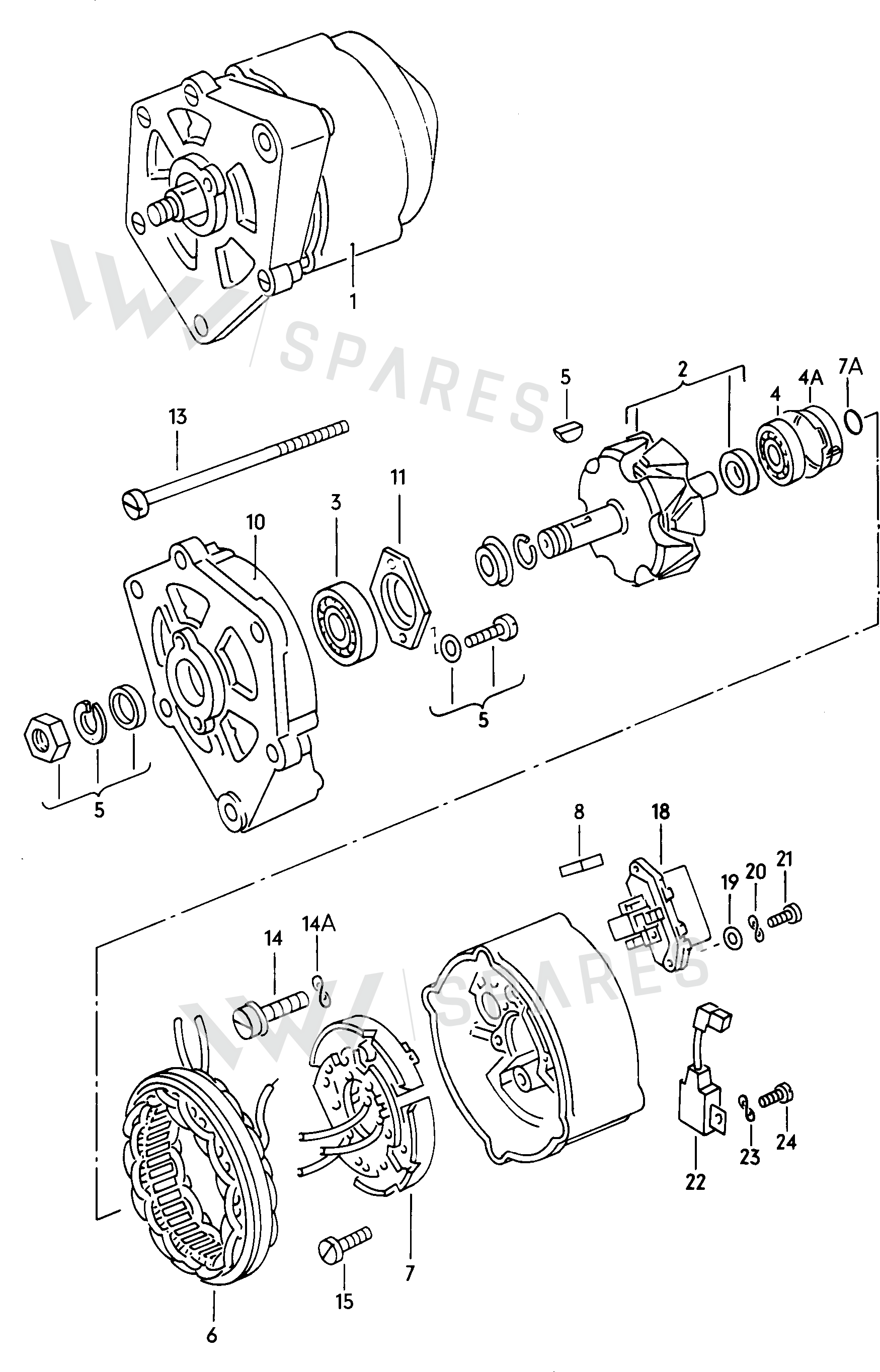

2 vehiclesAlternator — locate Alternator in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Alternator 035903017AX
- 1Alternator 060903017X
- 1Alternator 060903017AX
- 1Alternator 068903017NX
- 1Alternator 068903017PX
- 1Alternator 068903017SX
- 1Alternator 068903017CX
- 2Pole Rotor 068903213F
- 2Pole Rotor 069903213E
- 2Pole Rotor 074903213B
- 3Bearing 021903221D
- 3Bearing 021903221E
- 4ARing 049903223
- 5Repair Kit 028903320B
- 6Winding 049903351B
- 6Winding 036903351C
- 7Plate 036903359H
- 7Plate 075903359
- 7Plate 026903359
- 7ASeal Ring 063903509
- 7ASeal Ring 049903509
- 8Brush 049903515C
- 10Housing 026903537A
- 10Sign 049903537D
- 10Sign 056903537
- 10Sign 049903537B
- 11Plate 028903543
- 11Plate 059903543
- 12Spring N0127082
- 13Screw 037903555
- 14Screw N0141251
- 14Screw 049903555A
- 14AWasher N0122213
- 18Regulator 068903803DX
- 18Regulator 068903803D
- 19Washer N0115227
- 22Condenser 056903291
- 23Washer N0122224
- 24Screw N0107042
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| LT, LT 4x4 (28-55) | 1982-1989 | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Vanagon | 1985-1987 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Alternator is fitted on: LT, LT 4x4 (28-55) 1982-1989; Vanagon 1985-1987.
