026103485D End Cap
- 026103485DThis pageNot stocked
Apr 2012 - 06B103485CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

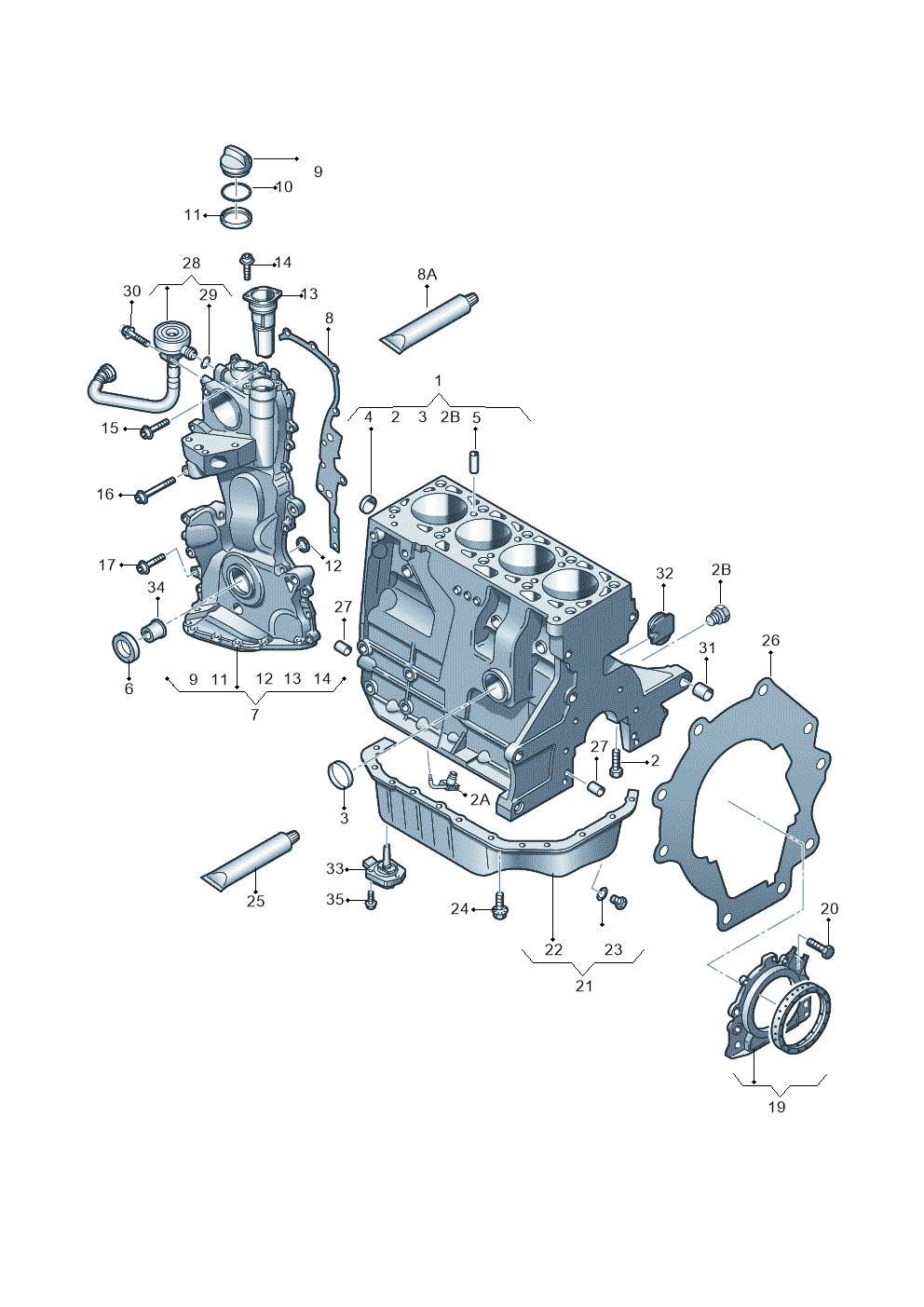

6 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Part 03C103011AS
- 1Crankcase 03C103011AR
- 2Bolt N91107801
- 2AVent 03C103157A
- 2BBolt N90813202
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210CP
- 7Case 03C109210CD
- 7Case 03C109210CE
- 7Case 03C109210CQ
- 8Seal 03C109287G
- 8APart D176501A1
- 9Cover 06B103485C
- 9Cover 03C103485B
- 10Seal 06A103483D
- 11Seal Ring 03C133287A
- 12Seal 03C109293
- 14Screw N91121101
- 14Bolt N90440706
- 15Screw N90500605
- 16Bolt N10655802
- 16Bolt N90712403
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N0902619
- 21Oil Sump 03C103603T
- 25Seal D176600A1
- 26Spacer Pl 03C103551H
- 26Spacer Pl 036103551R
- 27Part N0432072
- 31Sleeve 022103139B
- 33Oel Sensor 1J0907660C
- 34Bush 03C105159H
Vehicle fitment table6
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| golf estate | 2009-2013 | 9 | 1 | |
| jetta | 2008-2011 | 16 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| BORA-GP-FAW 07> | 2006- | 16, 22 | 1 | |
| BORA (FAW) | 2001-2006 | 16, 22 | 1 | |
| JETTA (FAW) 91> | 1991- | 30, 22, 20 | 1 | ABX,ACR,ANL |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 1J0 platform | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: golf estate 2009-2013; jetta 2008-2011; BORA-GP-FAW 07> 2006-; BORA (FAW) 2001-2006; JETTA (FAW) 91> 1991-; 1J0 platform.
