0271170211 Oil Cooler
- 0271170211This pageNot stocked
Apr 2011 - 068117021BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

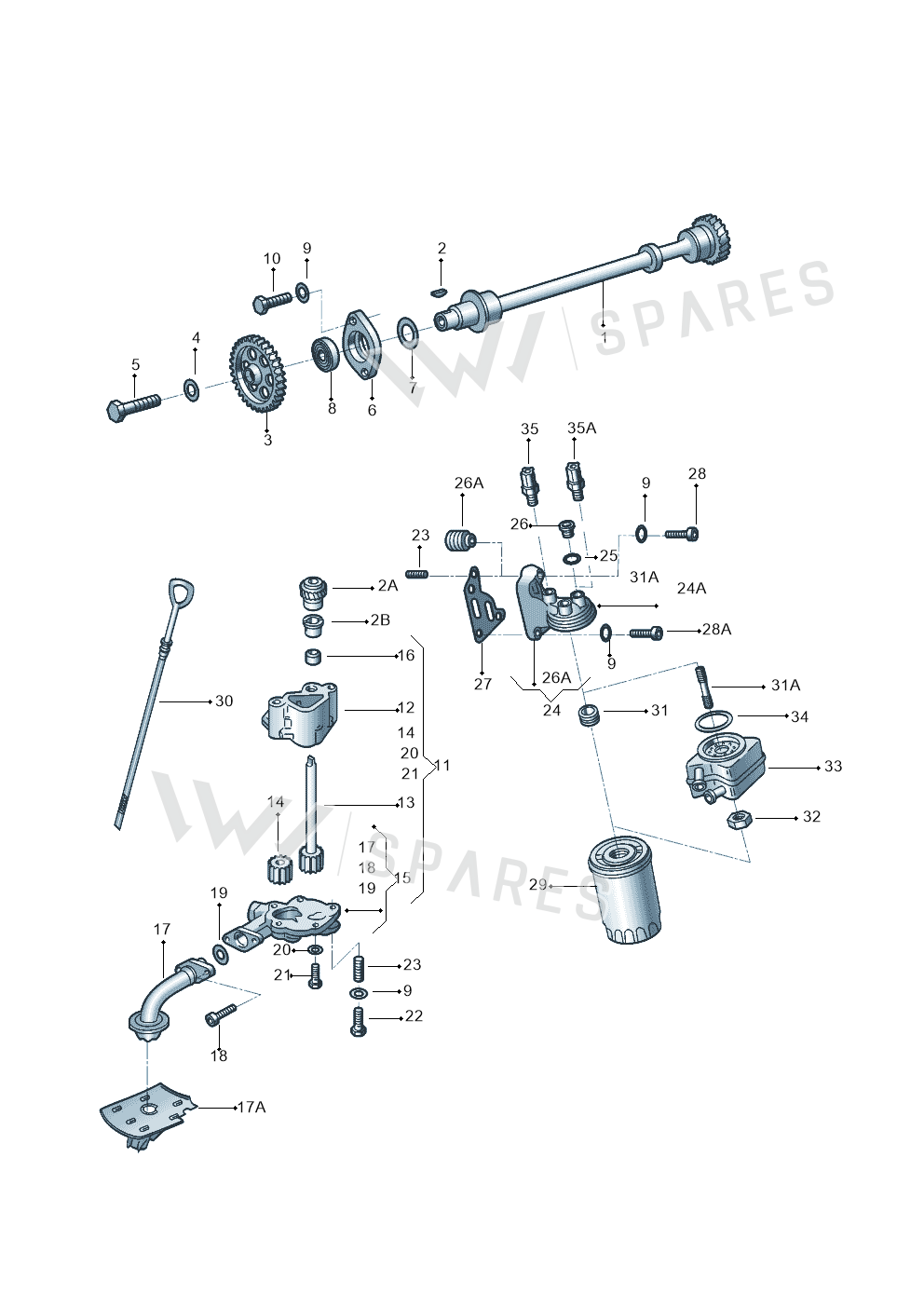

13 vehiclesOil Cooler — locate Oil Cooler in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Shaft 0271150172
- 1Shaft 0531150172
- 1Shaft 053115017C
- 1Shaft 0271150171
- 1Shaft 028115017E
- 2Spring N0127082
- 2BBush 056103541
- 3Part 049109111
- 3Part 049109111C
- 3Pulley 027109111G
- 3Pulley 028115021B
- 3Pulley 068115021A
- 4Washer 027109143
- 5Bolt N90256201
- 5Bolt N90634001
- 5Bolt N0101371
- 6Ring 056115033A
- 6Ring 027115033
- 7Seal Ring N90353501
- 8Seal 041103085
- 8Seal 026103085E
- 8Seal Washer 028103086A
- 9Washer N01224110
- 9Washer N0122283
- 10Bolt N0902785
- 10Bolt N01024212
- 10Bolt N01024222
- 11Oil Pump 026115105E
- 11Oil Pump 053115105C
- 11Oil Pump 026115105A
- 11Oil Pump 026115105F
- 11Oil Pump 0281151031
- 11Oil Pump 06811510512
- 12Housing 026115107B
- 13Shaft 026115115A
- 13Shaft 068115115H
- 14Gear 037115123
- 15Cover 0261151513
- 15Cover 026115151D
- 16Sleeve 053115167
- 17Pipe 041115251B
- 17APart 053103623
- 17ALock 041103623
- 18Screw 026103637A
- 18Screw 026103637
- 19Seal Ring N0282222
- 20Washer N0122265
- 21Bolt N0902811
Vehicle fitment table13
Other markets (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOL 2P/4P M.06> | 2005- | 33 | 1 | ||
| SAVEIRO M.06> | 2005- | 33 | 1 | ||
| Golf "BR.","USA"03>07 | 2002-2007 | 9, 12 | 1 | MR0 | |
| GOL 2P/4P | 2002-2006 | 33 | |||
| SAVEIRO | 2002-2006 | 33 | 1 | UQG,UDH+B0M | |
| PARATI 4P | 2002-2006 | 33 | 1 | UQG | D3Y |
| Golf BR/US | 2001-2002 | 9, 12 | 1 | ||
| Golf BR/US | 1999-2001 | 9, 12 | 1 | ||
| NOVA PARATI | 1995-2002 | 33 | |||
| NOVO GOL/SAVEIRO | 1994-2002 | 33 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 325 platform | 33 | ||||
| 701 platform | 8 | ||||
| 3B0 platform | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Cooler is fitted on: GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; Golf "BR.","USA"03>07 2002-2007; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; Golf BR/US 2001-2002; Golf BR/US 1999-2001; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 325 platform; 701 platform; 3B0 platform.
