028103101 Cylinder Block With Pistons
- Discontinued Apr 2022
- Current number
- Current number
- 028103101This pageNot stocked
Nov 1996
- Discontinued Apr 2022028103101DDiscontinued
Apr 2022 - Current number053115417ACurrent number
- Current number028115441CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

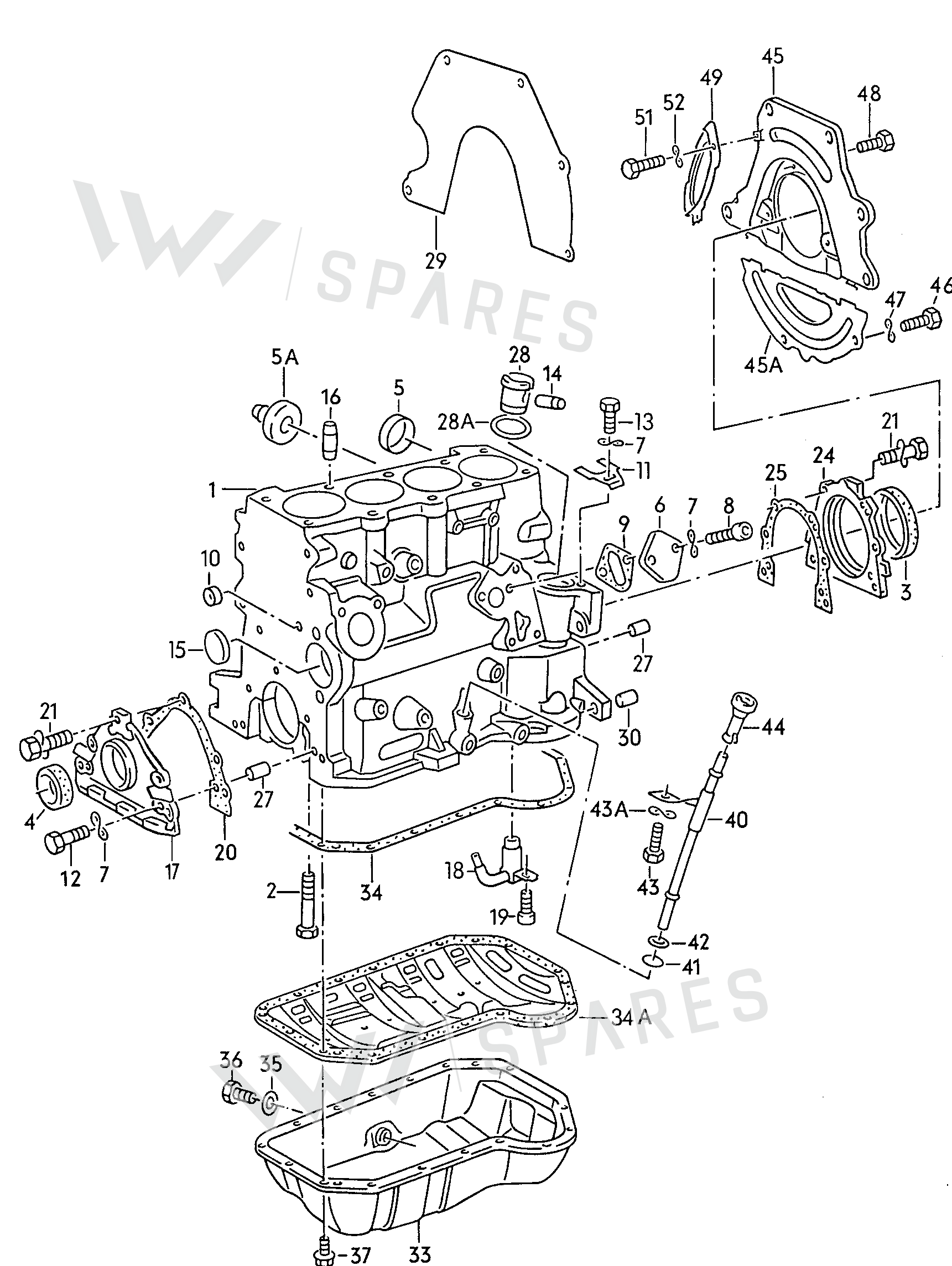

2 vehiclesCylinder Block With Pistons — locate Cylinder Block With Pistons in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Cylinder Block 028103101AC
- 1Cylinder Block 068103101Q
- 1Cylinder Block 028103101D
- 2Bolt N90130001
- 2Bolt N10263801
- 4Seal 068103085E
- 5Cover 036103113A
- 5AUnion 035103111B
- 6Cover 063103113
- 7Washer N01224110
- 8Screw N0147123
- 9Seal 028127311A
- 10Cover N01190710
- 12Bolt N01024016
- 14Rivet N0162011
- 14Bungs 056103117
- 18Vent 068103157D
- 19Screw N90241501
- 20Seal 026103161B
- 21Bolt N01021612
- 24Flange 068103171F
- 25Seal 026103181B
- 27Part N0432072
- 28Cover 068103113B
- 28ASeal Ring 056905261
- 30Sleeve 014301153
- 33Oil Sump 051103601
- 34Seal 044103609D
- 34ALock 037115220B
- 35Seal Ring N0138492
- 36Plug N90288901
- 37Bolt N90423402
- 37Bolt N90008401
- 40Tube 028103634
- 41Seal Ring N90032204
- 43Bolt N01021226
- 43AWasher N0122265
- 44Guide 036115636
- 45Cover 068103621E
- 45ACover 038103648A
- 46Bolt N0102279
- 47Washer N0122345
- 49Coverplate 038103648H
- 51Bolt N0102085
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Passat | 1989-1991 | 1 | 1 | 1Y |
| Audi 80/90 | 1989-1991 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block With Pistons is fitted on: Passat 1989-1991; Audi 80/90 1989-1991.
