028103383BK Cylinder Head Gasket (Metal)
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Order processing for VOLKSWAGEN typically takes 1-3 business days.
General delivery timeframes:
- VAG Group (Volkswagen, Audi, SEAT, Škoda): 1-3 business days
- BMW & Mercedes-Benz: 2-5 business days
- Other manufacturers: 3-7 business days
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

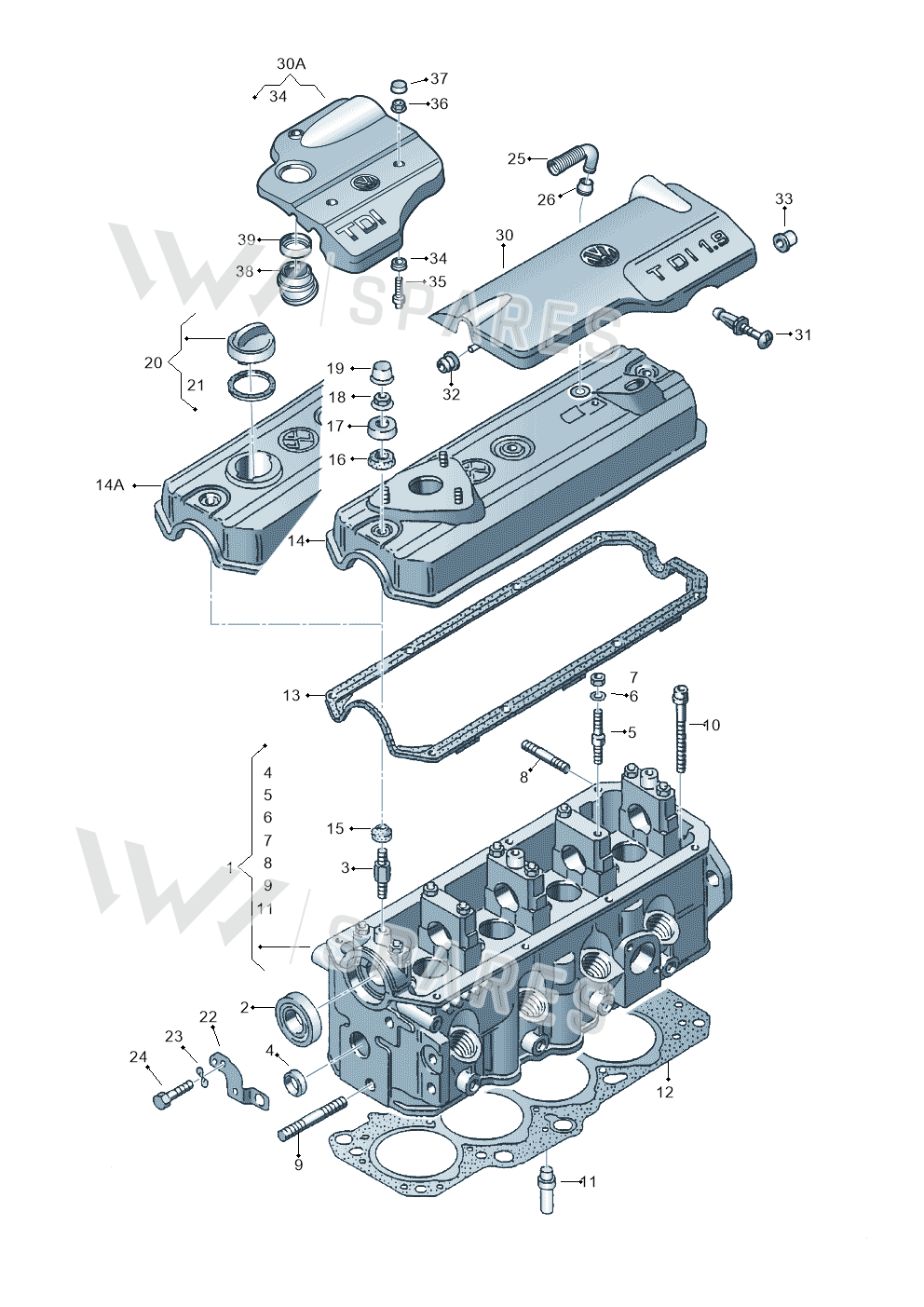

52 vehiclesCylinder Head Gasket (metal) — locate Cylinder Head Gasket (Metal) in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Cylinder Head 028103265BX
- 1Cylinder Head 028103265DX
- 1Cylinder Head 028103265EX
- 2Seal 068103085E
- 3Bolt 028103531B
- 4Cover N0119191
- 4Cover N0119142
- 5Bolt 056103397
- 6Washer N01155811
- 7Part N0110088
- 8Bolt N90188902
- 9Bolt N0144083
- 10Screw 068103384A
- 11Guide 056103419A
- 12Seal 028103383BH
- 12Seal 028103383BJ
- 13Seal 028103483G
- 13Seal 028103483H
- 14Cover 028103469E
- 14Cover 028103469L
- 15Seal Cone 028103532A
- 16Seal Plate 028103533
- 17Washer 028103536
- 18Part N90132603
- 19Part 028103534A
- 20Cover 06B103485B
- 21Seal 06A103483D
- 22R Bracket 038103941E
- 23Washer N01224110
- 24Bolt N0102336
- 25Bolt N0103506
- 30Cover 028103935A
Vehicle fitment table52
Europe (32)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CADDY-KOMBI/KASTENW. 06> | 2005- | 12 | 1 | ||
| POLO CLASSIC 06> | 2005- | 12 | 1 | ||
| POLO | 1999-2001 | 12 | X | AEF | T2V |
| caddy combi./del.van | 1998-2005 | 12 | 1 | 1Y | |
| CADDY PICKUP | 1996-2000 | 12 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 12 | 1 | 1Y,AAZ | |
| POLO CLASSIC/VARIANT | 1996-1999 | 12 | 1 | 1Y | |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 12 | 1 | AAZ | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 12 | 1 | 1Y,AAZ | |
| Golf | 1996-1997 | 12 | 1 | 1Y,AAZ | |
| Transporter 96 | 1996-1996 | 12 | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 12 | 1 | 1Y | |
| INCA (SEAT-VAN) | 1995-2003 | 12 | 1 | 1Y | |
| PICK UP | 1995-2001 | 12 | 1 | ||
| Polo Classic 96 | 1995-1996 | 12 | 1 | 1Y | |
| Golf 96 | 1995-1996 | 12 | 1 | 1Y,AAZ | |
| Golf Var./Vento 96 | 1995-1996 | 12 | 1 | 1Y,AAZ | |
| FELICIA | 1994-2001 | 12 | 1 | ||
| POLO | 1994-1999 | 12 | 1 | AEF | |
| Passat | 1994-1997 | 12 | 1 | AAZ | |
| Golf/Ecomatic 95 | 1994-1995 | 12 | 1 | AAZ,1Y | |
| Golf Var./Vento 95 | 1994-1995 | 12 | 1 | AAZ,1Y | |
| Audi 90 | 1993-1995 | 12 | 1 | AAZ | |
| Jetta GLX 94 | 1993-1994 | 12 | 1 | AAZ,1Y | |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 12 | 1 | 1Y,AAZ | |
| Audi 90 93 | 1992-1993 | 12 | 1 | AAZ | |
| TOLEDO SEAT | 1991-1996 | 12 | 1 | 1Y,AAZ | |
| GOLF/Ecomatic | 1991-1994 | 12 | 1 | AAZ,1Y | |
| Passat | 1991-1993 | 12 | 1 | ||
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 12 | 1 | ||
| Passat | 1989-1991 | 12 | 1 | ||
| Audi 80/90 | 1989-1991 | 12 |
Other markets (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 12 | 1 | 7KY | |
| GOL 2P/4P M.06> | 2005- | 12 | 1 | ||
| SAVEIRO M.06> | 2005- | 12 | 1 | ||
| PARATI M.06> | 2005- | 12 | 1 | ||
| GOL 2P/4P | 2002-2006 | 12 | 1 | ||
| SAVEIRO | 2002-2006 | 12 | 1 | ||
| PARATI 4P | 2002-2006 | 12 | 1 | ||
| Eurovan | 1998-2003 | 12 | 1 | ||
| Eurovan 98 | 1997-1998 | 12 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 12 | 1 | AAZ | |
| Eurovan | 1996-1997 | 12 | 1 | ||
| NOVA PARATI | 1995-2002 | 12 | 1 | 221 | |
| Eurovan F>>70-T 96 | 1995-1995 | 12 | 1 | ABL,1X | |
| NOVO GOL/SAVEIRO | 1994-2002 | 12 | |||
| Eurovan 95 | 1994-1995 | 12 | 1 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 12 | 1 | ||
| Eurovan | 1991-1994 | 12 | 1 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 12 | 1 | 1Y | ||
| 377 platform | 12 | 1 | 221 | ||
| 6K0 platform | 12 | 1 | 1Y |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head Gasket (Metal) is fitted on: CADDY-KOMBI/KASTENW. 06> 2005-; POLO CLASSIC 06> 2005-; POLO 1999-2001; caddy combi./del.van 1998-2005; CADDY PICKUP 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Transporter 96 1996-1996; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; PICK UP 1995-2001; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; FELICIA 1994-2001; POLO 1994-1999; Passat 1994-1997; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Audi 90 1993-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; Audi 90 93 1992-1993; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; Passat 1991-1993; DIES.-IND.-MOT.1,9>2,0 1990-2007; Passat 1989-1991; Audi 80/90 1989-1991; DIES.-IND.-MOT.1,9>2,0 08> 2007-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; Eurovan 1998-2003; Eurovan 98 1997-1998; Golf/Jetta "USA","Mex"97>99 1996-1998; Eurovan 1996-1997; NOVA PARATI 1995-2002; Eurovan F>>70-T 96 1995-1995; NOVO GOL/SAVEIRO 1994-2002; Eurovan 95 1994-1995; Golf/Jetta "USA","MEX"93>96 1992-1996; Eurovan 1991-1994; 6K0 platform; 377 platform.
