028103493T Air Hose
- 028103493Superseded
May 1997 - 028103493TThis pageDiscontinued
May 2025
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

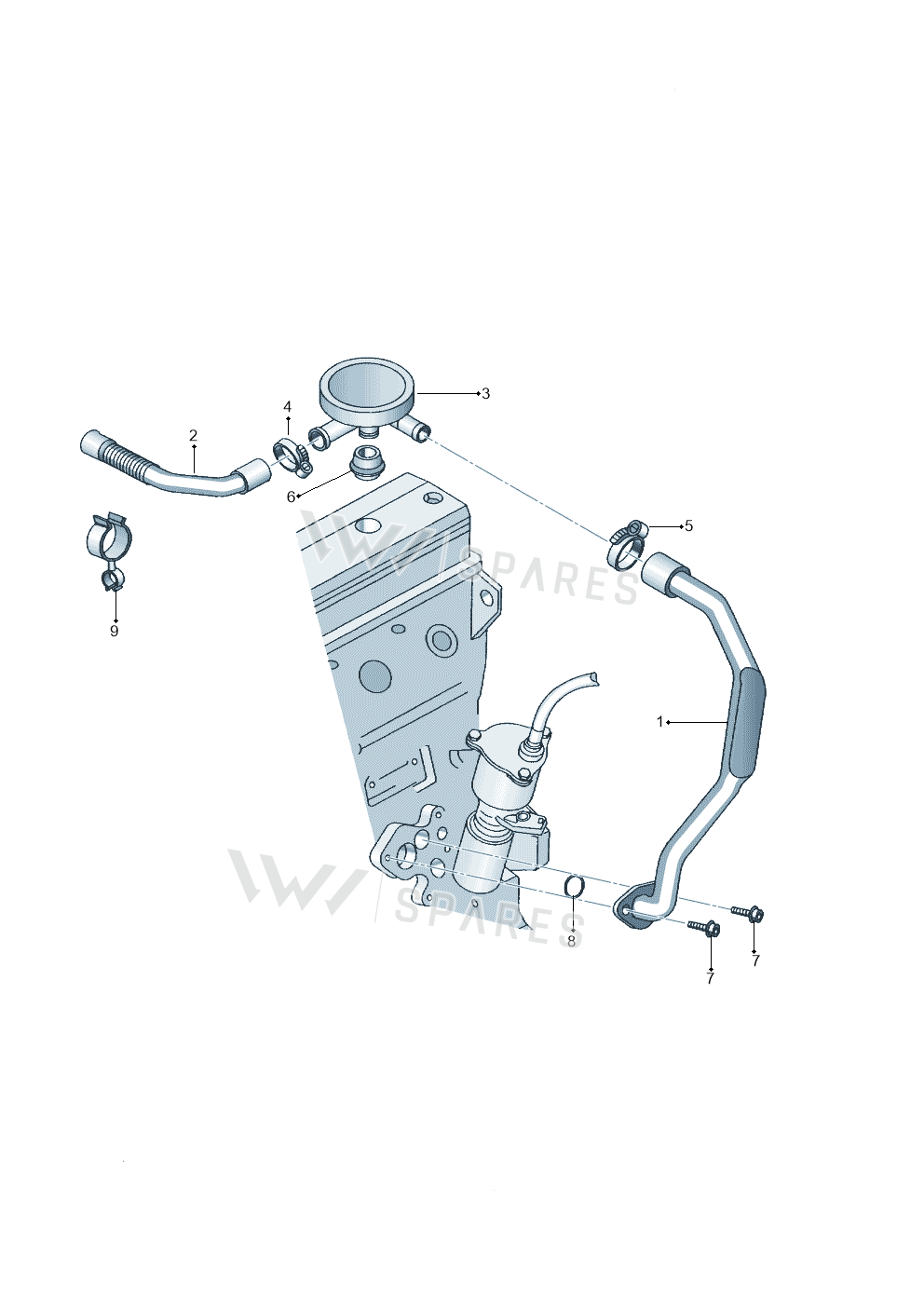

35 vehiclesAir Hose — locate Air Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly6
Vehicle fitment table35
Europe (23)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CADDY-KOMBI/KASTENW. 06> | 2005- | 2 | 1 | ||
| POLO CLASSIC 06> | 2005- | 2 | 1 | ||
| caddy combi./del.van | 1998-2005 | 2 | 1 | 1Y | |
| GOLF VAR./VENTO | 1996-1999 | 13 | 1 | 1Y,AEY | |
| POLO CLASSIC/VARIANT | 1996-1999 | 13 | 1 | AEY,AKW | |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 13 | 1 | 1Y | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 13 | 1 | AEY | |
| Golf | 1996-1997 | 13 | 1 | 1Y,AEY | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 13 | 1 | AEY,AHB,1Y | |
| INCA (SEAT-VAN) | 1995-2003 | 13 | 1 | AEY,AHB,1Y | |
| Polo Classic 96 | 1995-1996 | 13 | 1 | 1Y,AEY | |
| Golf 96 | 1995-1996 | 13 | 1 | 1Y,AEY | |
| Golf Var./Vento 96 | 1995-1996 | 13 | 1 | 1Y,AEY | |
| Golf/Ecomatic 95 | 1994-1995 | 13 | 1 | 1Y | |
| Golf Var./Vento 95 | 1994-1995 | 13 | 1 | 1Y | |
| Jetta GLX 94 | 1993-1994 | 13 | 1 | 1Y | |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 13 | 1 | 1Y,AAZ,AEY | |
| TOLEDO SEAT | 1991-1996 | 4 | 1 | 1Y | |
| GOLF/Ecomatic | 1991-1994 | 13 | 1 | 1Y | |
| Passat | 1991-1993 | 18 | 1 | 1Y | |
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 12 | 1 | 028:B,ADE, | |
| Passat | 1989-1991 | 18 | 1 | 1Y | |
| Audi 80/90 | 1989-1991 | 18 | 1 | 1Y |
Other markets (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 12 | 1 | ADG | 7KY |
| GOL 2P/4P M.06> | 2005- | 2 | 1 | ||
| SAVEIRO M.06> | 2005- | 2 | 1 | ||
| PARATI M.06> | 2005- | 2 | 1 | ||
| GOL 2P/4P | 2002-2006 | 2 | 1 | ||
| SAVEIRO | 2002-2006 | 2 | 1 | ||
| PARATI 4P | 2002-2006 | 2 | 1 | ||
| NOVA PARATI | 1995-2002 | 2 | 1 | 221 | |
| NOVO GOL/SAVEIRO | 1994-2002 | 2 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 2 | 1 | 1Y | ||
| 377 platform | 2 | 1 | 221 | ||
| 6K0 platform | 2 | 1 | 1Y |
Diagrams & fitment data powered by oemdiagrams.com
Air Hose is fitted on: CADDY-KOMBI/KASTENW. 06> 2005-; POLO CLASSIC 06> 2005-; caddy combi./del.van 1998-2005; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; Passat 1991-1993; DIES.-IND.-MOT.1,9>2,0 1990-2007; Passat 1989-1991; Audi 80/90 1989-1991; DIES.-IND.-MOT.1,9>2,0 08> 2007-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 6K0 platform; 377 platform.
