028103638D Grommet
- 028103638DThis pageNot stocked
Feb 2009 - 028103638LDiscontinued
Apr 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

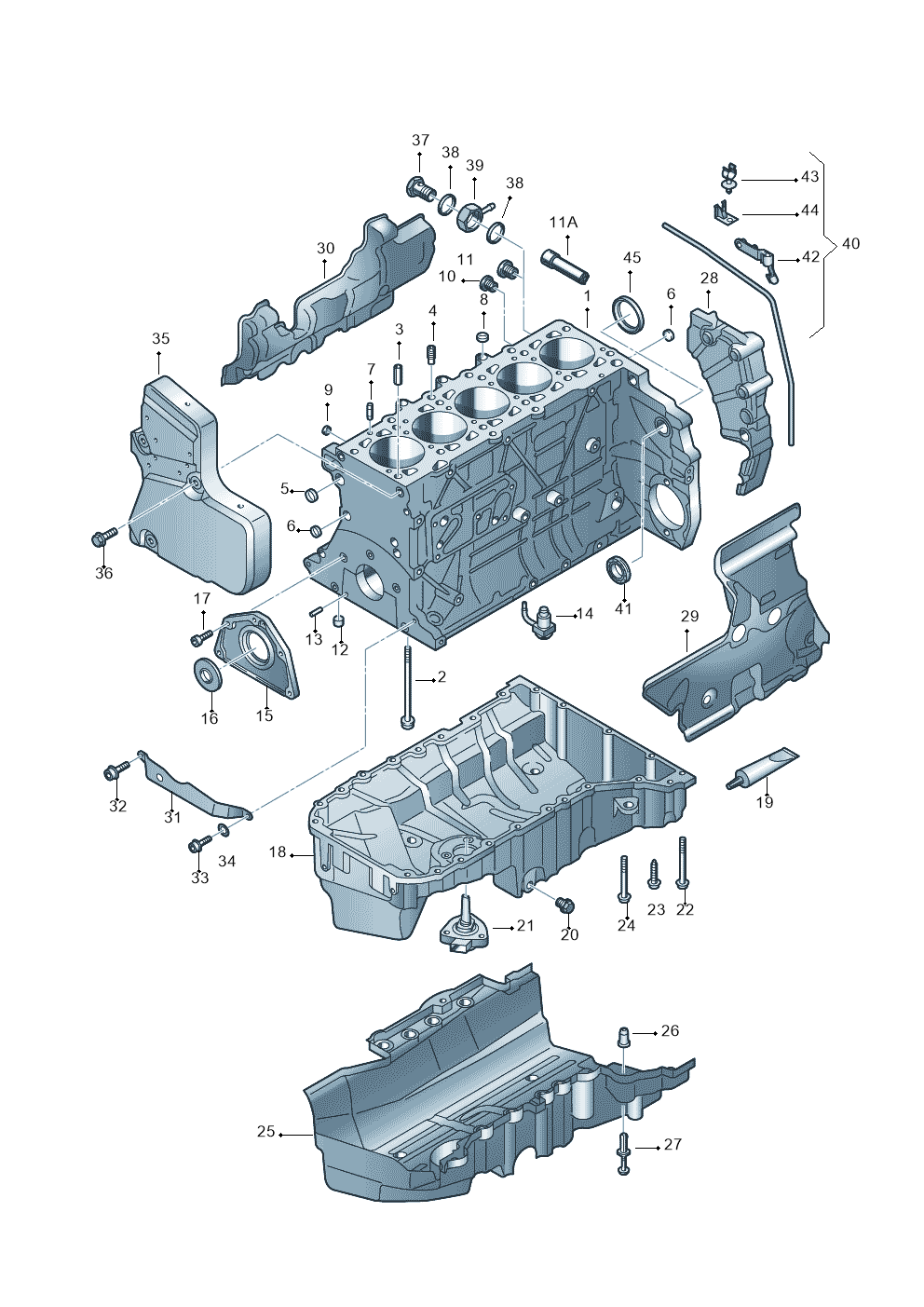

4 vehiclesGrommet — locate Grommet in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 2Screw 070103394
- 3Insert 070103136
- 4Valve 077103175B
- 5Cover N0119096
- 6Cover N01190310
- 7Part 026103139
- 8Cover N0119017
- 9Cover N0119185
- 10Bolt N90965401
- 11Screw N90971802
- 11AFilter 070121040A
- 12Sleeve 070103139
- 13Part N10478301
- 14Vent 070103157A
- 15Flange 070103153A
- 16Cover 070103189A
- 17Screw N10115306
- 18Part 070103603L
- 19Seal D176404A2
- 20Bolt N90813202
- 22Bolt N90977601
- 23Bolt N91115701
- 24Bolt N90977401
- 25Cover 070103800G
- 25Cover 070103800E
- 27Clip 070103733
- 27Spring Rivet 074103952
- 28Part Plate 070825245A
- 29Part Plate 070825246
- 30Part Plate 070825246B
- 38Seal Ring N0138487
- 40Hose 070121621
- 41Seal Washer 070903107
- 42Clip 070121136
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CAMPMOBILE(T5) | 2004-2006 | 26 | X | G0K,G0L,G1A,TM7,TN7,T85,T86 | |
| TRANSPORTER | 2003-2005 | 26 | X | D5Q,G0K,G0L,G1A,MM3,MS0 | |
| TRANSPORTER SYNCRO | 1996-2003 | 35 | 2 | ACV,AXL |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Eurovan | 1998-2003 | 35 | 2 | AJ |
Diagrams & fitment data powered by oemdiagrams.com
Grommet is fitted on: CAMPMOBILE(T5) 2004-2006; TRANSPORTER 2003-2005; TRANSPORTER SYNCRO 1996-2003; Eurovan 1998-2003.
