028109127S Toothed Belt Guard
- 028109127LNot stocked
Apr 1997 - 028109127SThis pageNot stocked
Mar 1998 - 028109127ABDiscontinued
Feb 2021
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

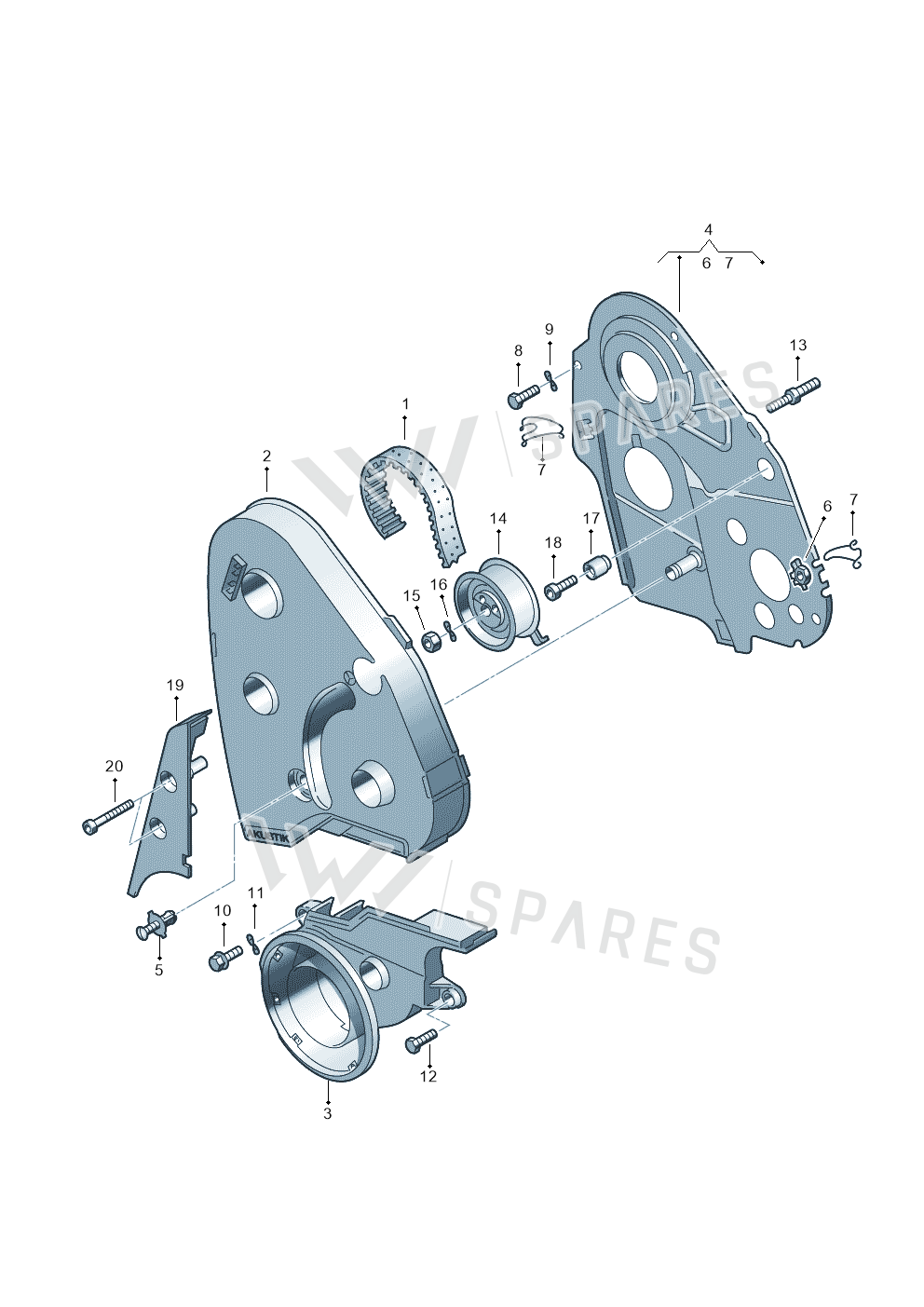

2 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Tooth Belt 028109119AA
- 1Tooth Belt 028109119P
- 2Protection 028109123AB
- 2Protection 028109123H
- 3Protection 028109127AB
- 5Bungs 028109132
- 7Clip 069109150
- 8Bolt N01021226
- 10Bolt N01021527
- 10Bolt N01021710
- 13Bolt N0144083
- 14Tens Roll 028109243F
- 14Tens Roll 028109243K
- 15Ut Hexagon Nut Self-locking Hexagon Nut N90074401
- 16Washer N01155811
- 17Roller 028109244
- 18Screw N0147172
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat | 1997-2000 | 3 | 1 |
| Audi A4 F>8D-W-.. | 1995-1997 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: Passat 1997-2000; Audi A4 F>8D-W-.. 1995-1997.
