028130115MX Injection Pump
- 028130109HSuperseded
Feb 1996 - 028130110HSuperseded
May 1998 - 028130115MSuperseded
Apr 2004 - 028130115MXThis pageDiscontinued
Feb 2018
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 6.52 kg
- Shipping size (L × W × H)
- 27 × 14 × 19.5 cm
- Country of origin
- Spain
- Customs (HS) code
- 84133020

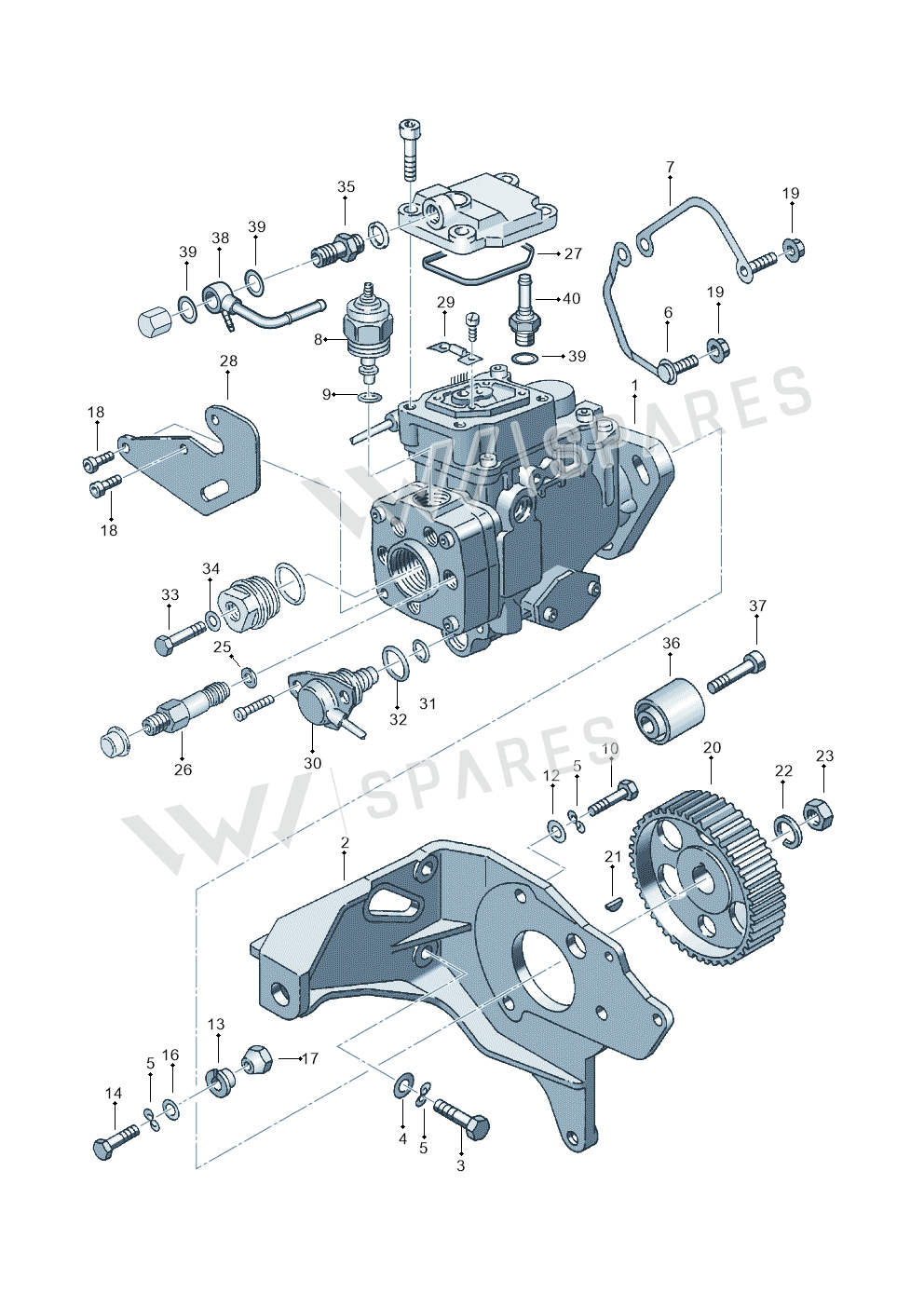

Parts diagram & fitment
27 vehiclesInjection Pump — locate Injection Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Pump 028130115M
- 2Console 028130147B
- 3Screw N10226002
- 5Washer N01224110
- 6Clamp 068130173B
- 7Clamp 068130174
- 8Cutoff 028130135F
- 9Seal 068130139
- 10Bolt N0102695
- 12Washer 111129720
- 13Bush 068130199
- 16Washer N90477301
- 17Part 068130197
- 19Ut Hexagon Nut Self-locking Hexagon Nut N0111849
- 21Spring N0127101
- 22Washer N0122333
- 25Seal Ring 068130787A
- 26Union 028130795G
- 27Seal Ring 028130717A
- 28Support 028130149B
- 29Temperature Sensor 028906040C
- 31Seal Ring 046130684
- 32Seal Ring 046130684A
- 34Seal Ring N0138075
- 35Valve 028130122B
- 36Roller 028109244
- 37Screw N0147172
Vehicle fitment table27
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/Avant | 1999-2001 | 1 | 1 | AFF,AHU | |
| GOLF CABRIO | 1998-2001 | 1 | 1 | AHU | M2K |
| Passat | 1997-2000 | 1 | 1 | AHU | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 1 | 1 | AFF,AHU | |
| ALHAMBRA | 1996-2000 | 1 | 1 | 1Z,AHU | |
| GOLF VAR./VENTO | 1996-1999 | 1 | 1 | 1Z,AHU | |
| POLO CLASSIC/VARIANT | 1996-1999 | 1 | 1 | AHU,1Z | |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 1 | 1 | AHU,1Z | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 1 | 1 | AHU,1Z | |
| Golf | 1996-1997 | 1 | 1 | 1Z,AHU | |
| Audi A6/Wagon F >4A-W | 1996-1997 | 1 | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 1 | 1 | AHU,1Z | |
| SHARAN/SYNCRO | 1995-2000 | 1 | 1 | 1Z,AHU | |
| Audi A4 F>8D-W-.. | 1995-1997 | 1 | 1 | 1Z,AFF,AHU | |
| Golf 96 | 1995-1996 | 1 | 1 | 1Z | |
| Golf Var./Vento 96 | 1995-1996 | 1 | 1 | 1Z | |
| Audi A6/Wagon 96 | 1995-1996 | 1 | 1 | ||
| Passat | 1994-1997 | 1 | 1 | 1Z,AHU | |
| Golf Cabrio | 1994-1996 | 1 | 1 | 1Z,AHU | |
| Golf/Ecomatic 95 | 1994-1995 | 1 | 1 | 1Z | |
| Golf Var./Vento 95 | 1994-1995 | 1 | 1 | 1Z | |
| Audi A6/Wagon 95 | 1994-1995 | 1 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 1 | 1 | 1Z,AHU | |
| Jetta GLX 94 | 1993-1994 | 1 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 1 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 1 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 1 | 1 | AHU |
Diagrams & fitment data powered by oemdiagrams.com
Injection Pump is fitted on: Audi A4/Avant 1999-2001; GOLF CABRIO 1998-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; ALHAMBRA 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; SHARAN/SYNCRO 1995-2000; Audi A4 F>8D-W-.. 1995-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Audi A6/Wagon 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Audi A6/Wagon 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; 6K0 platform.
