028131547C Seal
- 028131547CThis pageNot stocked
Oct 2000 - 038131547ANot stocked
May 2013 - 03L131547DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

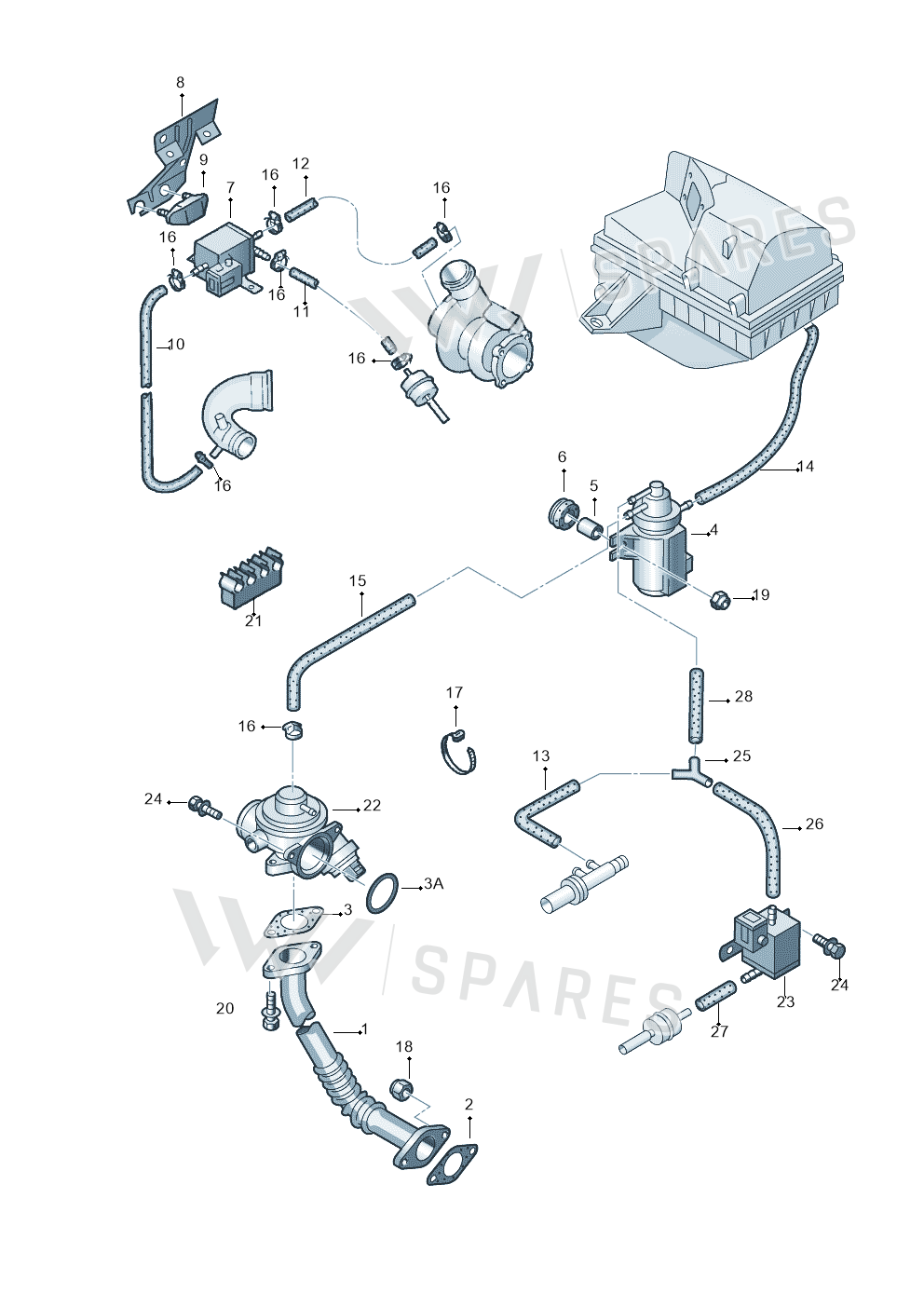

21 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Pipe 038131521
- 2Seal 038131547A
- 3Seal 069131547D
- 3ASeal Ring N90521601
- 4Converter 1J0906627
- 4Converter 1H0906627
- 5Spacer 052129734
- 6Grommet 046131887
- 7Valve 028906283N
- 8Retaining 1J0906483C
- 9Buffer 06A906300
- 16Clamp N0245281
- 17Cable Tie N90666101
- 18Collar Nut N90200201
- 19Collar Nut N90106302
- 22Valve 045131501C
- 23Valve 1J0906283C
- 23Valve 1J0906283A
- 24Screw N10115402
- 25Y-piece 056129971
Vehicle fitment table21
Europe (21)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta Wagon | 2001-2001 | 2, 4 | 1 |
| POLO | 1999-2001 | 5, 4 | 1 |
| GOLF CABRIO | 1998-2001 | 5 | 1 |
| Golf | 1998-2000 | 2, 4 | 1 |
| Passat syncro/4Motion | 1998-2000 | 5 | 1 |
| Passat | 1997-2000 | 9, 5 | 1 |
| ALHAMBRA | 1996-2000 | 5 | 1 |
| GOLF VAR./VENTO | 1996-1999 | 5 | 1 |
| Golf | 1996-1997 | 5 | 1 |
| SHARAN/SYNCRO | 1995-2000 | 5, 6 | 1 |
| Golf 96 | 1995-1996 | 5 | 1 |
| Golf Var./Vento 96 | 1995-1996 | 5 | 1 |
| Audi A6/Wagon 96 | 1995-1996 | 5 | 1 |
| POLO | 1994-1999 | 5, 4 | 1 |
| Passat | 1994-1997 | 5 | 1 |
| Golf Cabrio | 1994-1996 | 5 | 1 |
| Golf/Ecomatic 95 | 1994-1995 | 5 | 1 |
| Golf Var./Vento 95 | 1994-1995 | 5 | 1 |
| Golf/Var. syncro | 1993-1997 | 5 | 1 |
| Jetta GLX 94 | 1993-1994 | 5 | 1 |
| GOLF/Ecomatic | 1991-1994 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Jetta Wagon 2001-2001; POLO 1999-2001; GOLF CABRIO 1998-2001; Golf 1998-2000; Passat syncro/4Motion 1998-2000; Passat 1997-2000; ALHAMBRA 1996-2000; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; SHARAN/SYNCRO 1995-2000; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Audi A6/Wagon 96 1995-1996; POLO 1994-1999; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994.
