028133793B Y-Piece
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

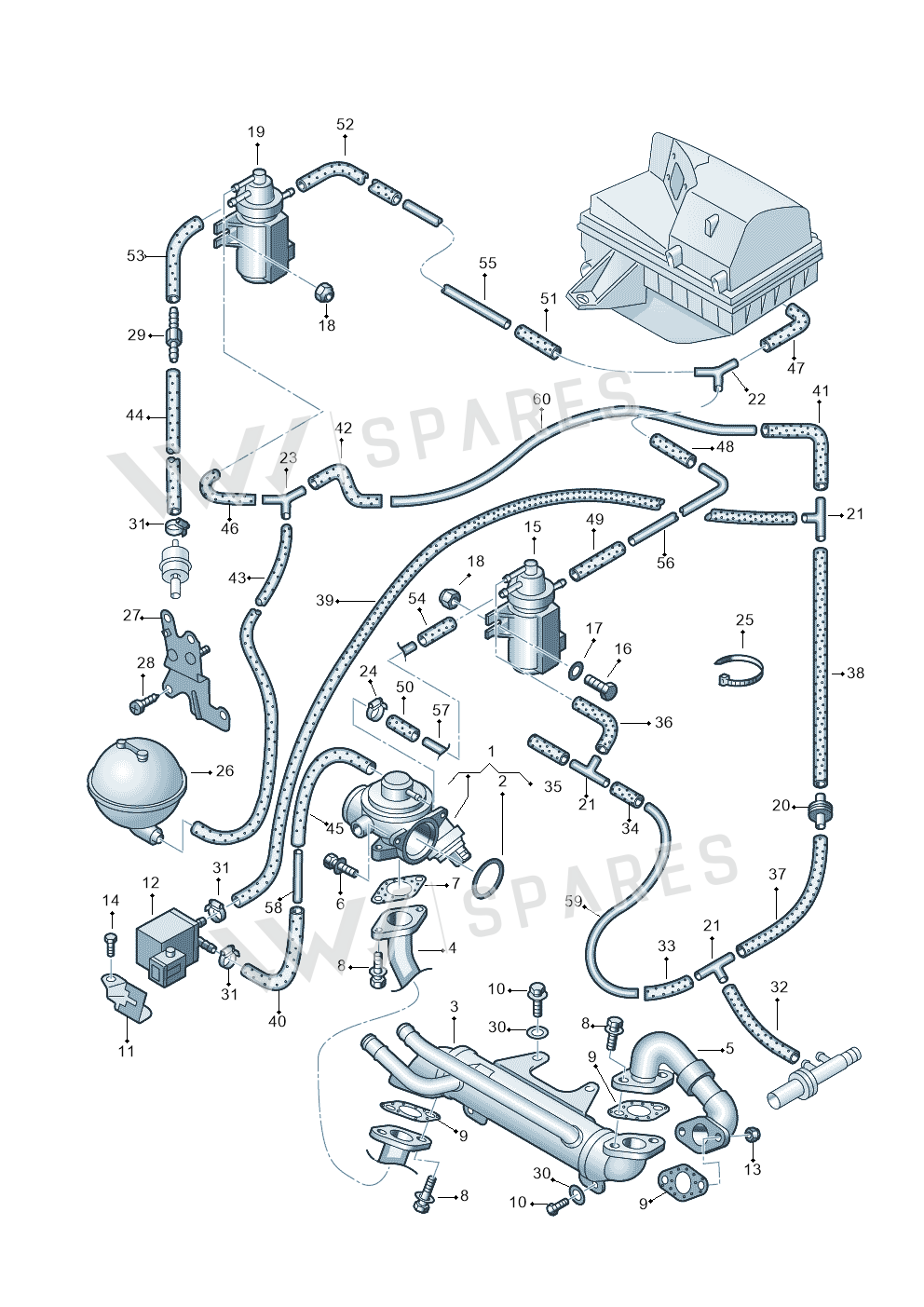

23 vehiclesY-piece — locate Y-Piece in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Valve 038131501AA
- 2Seal Ring N90927301
- 3Cooler 038131513H
- 4Pipe 038131521AJ
- 4Pipe 038131521BB
- 5Pipe 028131521AD
- 6Bolt N10124408
- 7Seal 069131547D
- 8Screw N90415403
- 9Seal 038131547A
- 10Screw N10114802
- 11Retaining 038131529H
- 12Valve 1J0906283A
- 13Collar Nut N90200201
- 14Screw N10308601
- 15Converter 1J0906627
- 16Bolt N01021710
- 17Washer N0115476
- 18Part N90132603
- 19Converter 1J0906627A
- 20Valve 046905291A
- 21Tpiece 2D0129737A
- 23Y-piece 056129971
- 24Clip N10310001
- 25Binder 4A0820199
- 25Cable Tie N90666101
- 26Damper 038129807
- 27Retainer 038129811
- 28Screw N0139681
- 29Connector Piece 028133793
- 31Clamp N10279301
- 36Hose 034133784L
- 45Hose 048133784H
Vehicle fitment table23
Europe (23)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 22 | 1 | ||
| SUPERB 02> | 2001- | 22 | 1 | ||
| Passat/4Motion/W8 | 2000-2002 | 22 | 1 | G0C,G0F,G0K,G0L,D3E,G0E,G0G,G0J,G0Q | |
| CORDOBA/VARIO | 1999-2002 | 23 | 1 | ||
| IBIZA | 1999-2002 | 23 | 1 | ||
| POLO CLASSIC/VARIANT | 1999-2001 | 23 | 1 | ||
| Audi A4/Avant | 1999-2001 | 22, 35 | 1 | ||
| Audi A4/Av.qu. | 1999-2001 | 22, 35 | 1 | ||
| GOLF CABRIO | 1998-2001 | 35 | 1 | M6N | |
| Passat syncro/4Motion | 1998-2000 | 22, 35 | 1 | ||
| Audi A6/Avant | 1997-2001 | 35, 22 | 1 | ||
| Passat | 1997-2000 | 22, 35 | 1 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 35 | 1 | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 35 | 1 | AFN | |
| GOLF VAR./VENTO | 1996-1999 | 35 | 1 | ||
| Golf | 1996-1997 | 35 | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 27 | 1 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 35 | 1 | ||
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 35 | 1 | AFN | |
| Golf 96 | 1995-1996 | 35 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 35 | 1 | ||
| Passat | 1994-1997 | 35 | 1 | ||
| Golf Cabrio | 1994-1996 | 35 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Y-Piece is fitted on: PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Passat/4Motion/W8 2000-2002; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; GOLF CABRIO 1998-2001; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996.
