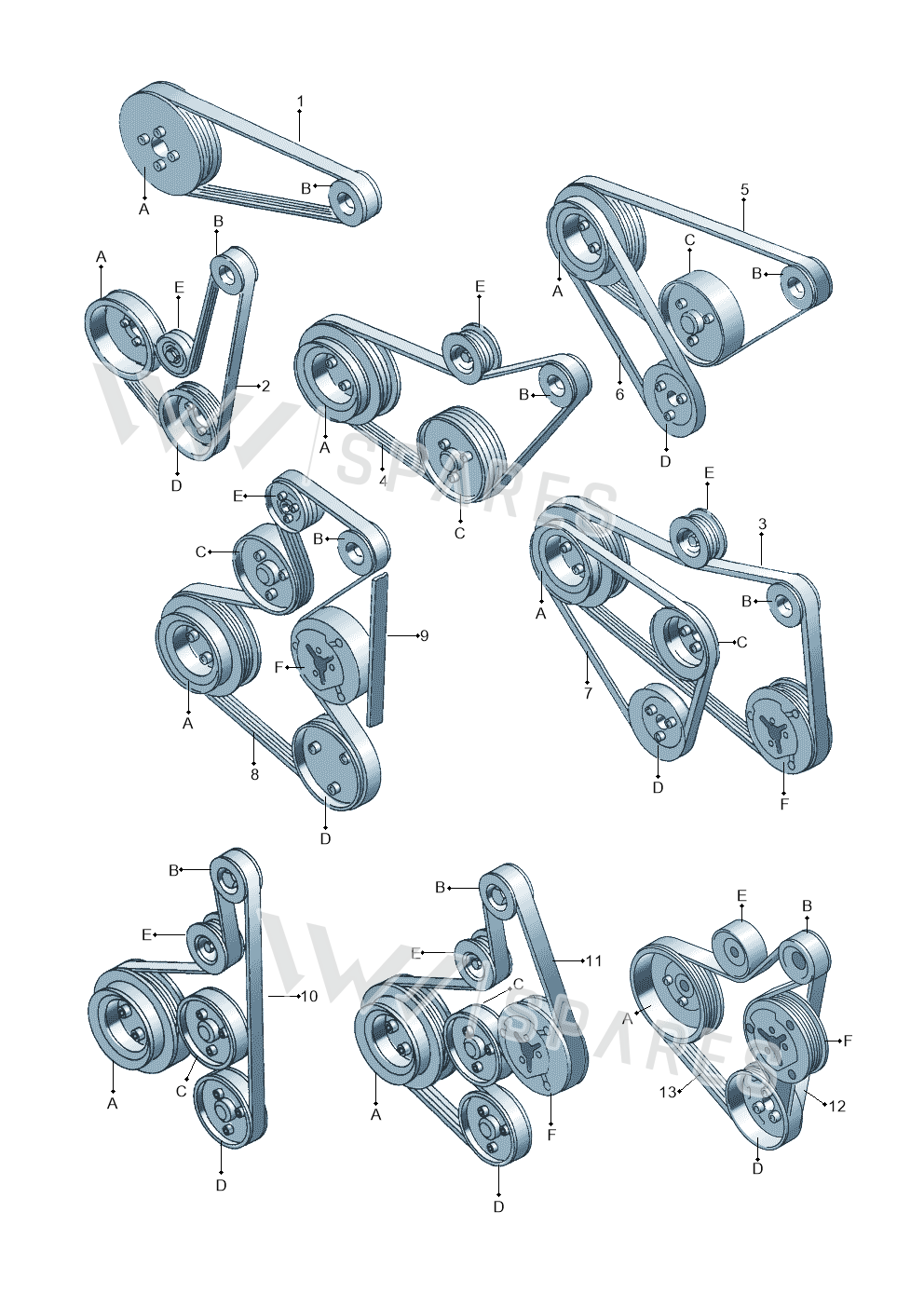

V-Belt exploded parts diagram — GOLF VAR./VENTO · 1996-1999, position 7
Exploded view
GOLF VAR./VENTO · 1996-1999 · position 7Full diagram ↓
028145271H

028145271H V-Belt

£6.09
£5.03 excl. VAT
Supersession roadoldest to newest
  1. 028145271HThis pageNot stocked
    Jan 1997
  2. 028145271LDiscontinued
    May 2020
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

12 vehicles

V-belt — locate V-Belt in the official exploded view and explore the surrounding assembly.

Parts in this assembly12
Vehicle fitment table12

Europe (12)

VehicleYearsPos.QtyRemark
GOLF VAR./VENTO1996-1999711Z,AAZ,AFN,
Golf1996-1997711Z,AAZ,AFN,
Golf 961995-1996711Z,AAZ,AFN,
Golf Var./Vento 961995-1996711Z,AAZ,AFN,
Passat1994-199771AAZ,1Z,AFN,
Golf/Ecomatic 951994-199571AAZ,1Z
Golf Var./Vento 951994-199571AAZ,1Z
Golf/Var. syncro1993-1997711Z,AHU
Jetta GLX 941993-19945, 71
GOLF/Ecomatic1991-19945, 71
Passat1991-199381
Passat1989-199151

Diagrams & fitment data powered by oemdiagrams.com

V-Belt is fitted on: GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Passat 1989-1991.
