028145771BF Oil Pipe
- 028145771AFNot stocked
Mar 1998 - 028145771AMNot stocked
Aug 1999 - 028145771BFThis pageDiscontinued
Feb 2021
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

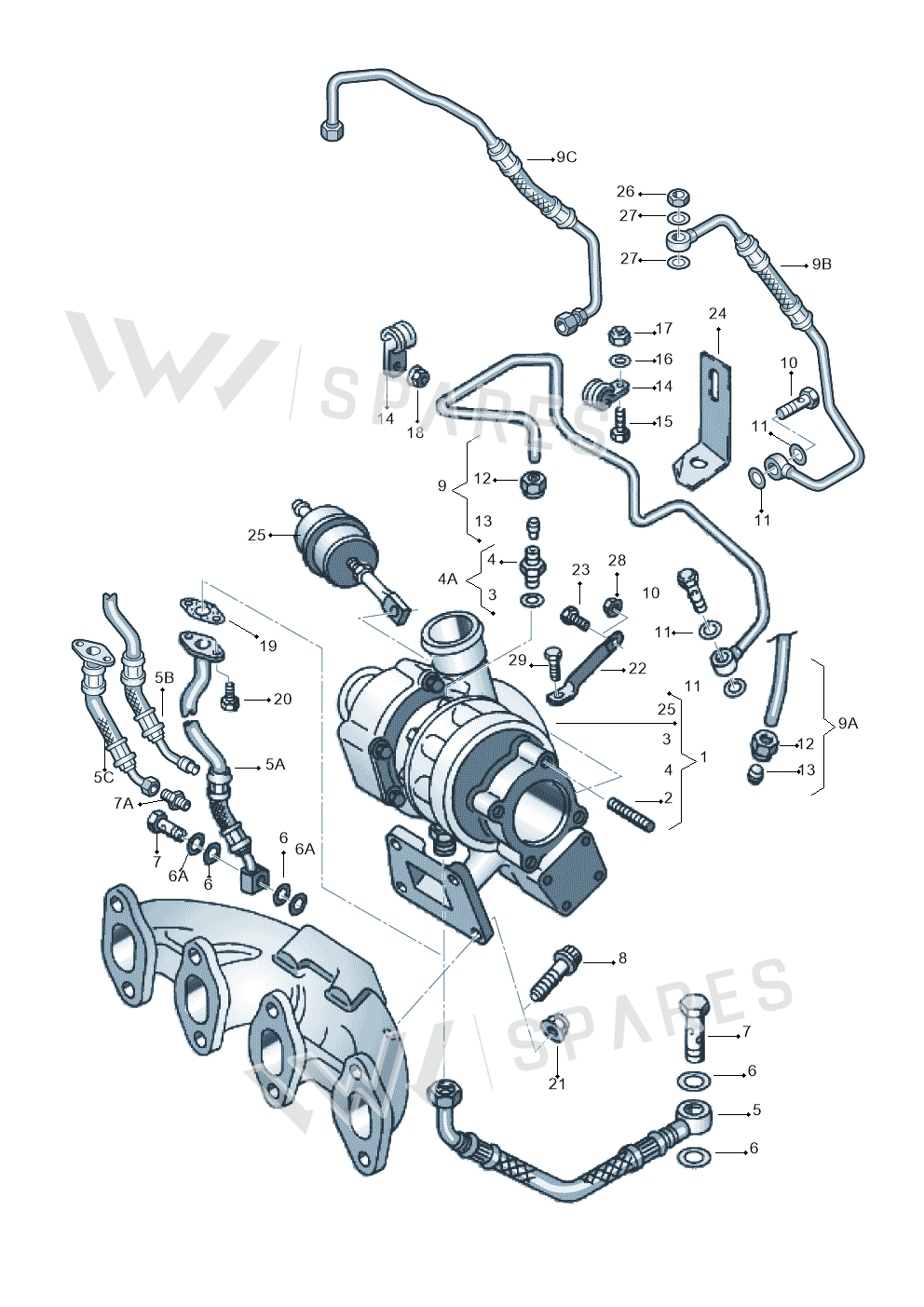

9 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Turbo 028145702
- 1Turbo 028145702X
- 1Turbo 028145702CX
- 2Bolt N0445145
- 4AUnion 028145786
- 5AOil Line 028145736AH
- 5AOil Line 028145736AF
- 6Seal Ring N0138326
- 7Screw N0210902
- 8Bolt 028145800
- 9Oil Pipe 028145771AB
- 9Oil Pipe 028145771BD
- 10Screw N0210715
- 10Screw N90651201
- 11Seal Ring N0138128
- 12Part N0210222
- 13Ring N0208292
- 14Clamp N0206093
- 15Bolt N01021527
- 16Washer N01152423
- 17Collar Nut N90175203
- 19Seal 028145757
- 20Bolt N90592703
- 21Collar Nut N90200201
- 22Support 028145535B
- 23Bolt N0102478
- 23Washer N0154013
- 24Bracket 028145859J
- 24Bracket 028145859A
- 24Bracket 028145859F
- 25Press Unit 028145716C
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi A4/Avant | 1999-2001 | 9 | 1 | AHH,AFN,AVG |
| Audi A4/Av.qu. | 1999-2001 | 9 | 1 | AFN,AVG |
| Passat syncro/4Motion | 1998-2000 | 9 | 1 | AFN,AVG |
| Audi A6/Avant | 1997-2001 | 9 | 1 | AFN,AVG |
| Passat | 1997-2000 | 9 | 1 | AFN,AHH,AVG |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 9 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 9 | 1 | AFN,AHH |
| Audi A4 F>8D-W-.. | 1995-1997 | 9 | 1 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 9 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pipe is fitted on: Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4/Avant F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997.
