02E398029A Repair Set For Multi-Coupling
- 02E398998Not stocked
Dec 2005 - 02E398029Not stocked
Aug 2007 - 02E398029AThis pageNot stocked
Mar 2012 - 02E398029BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

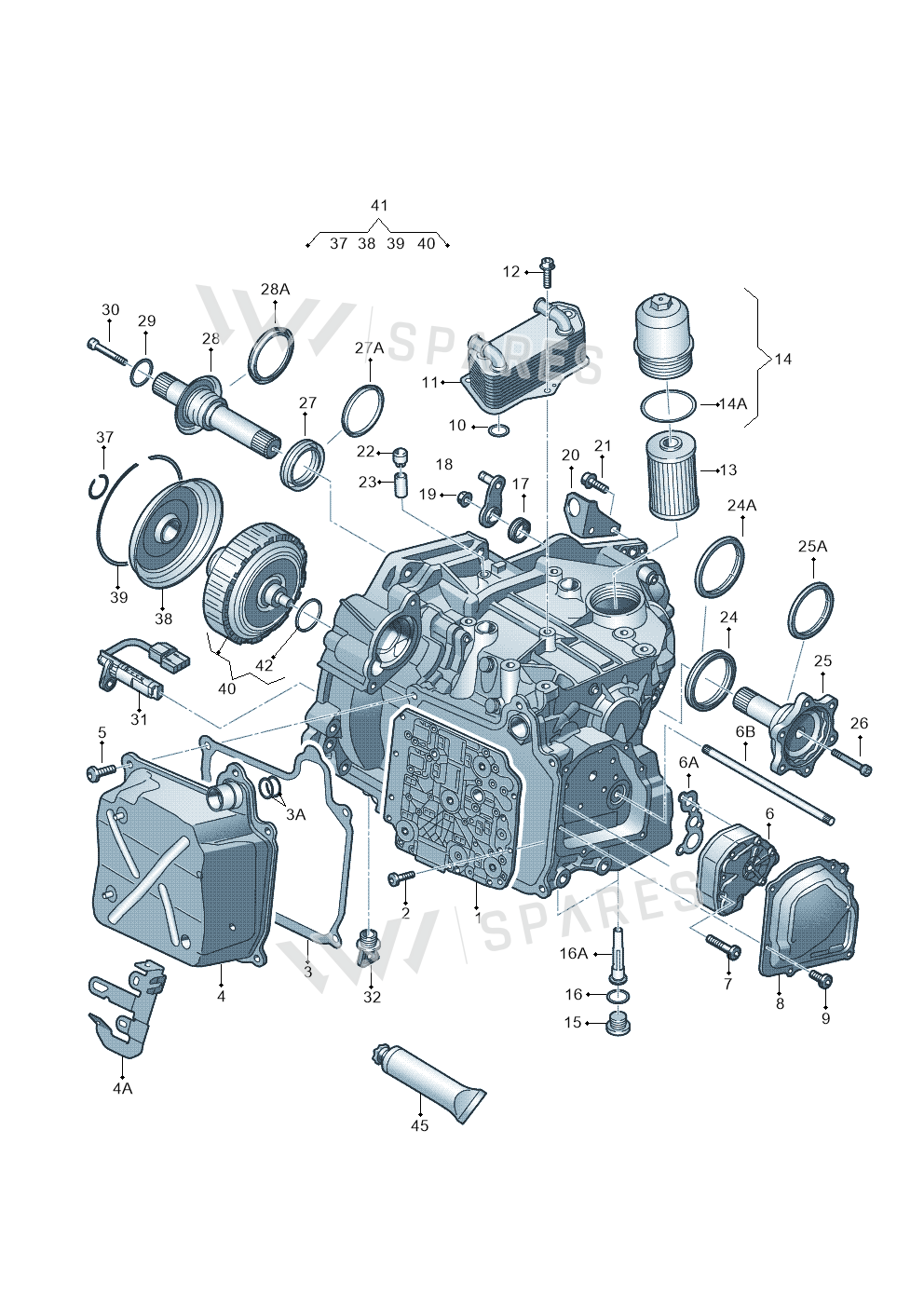

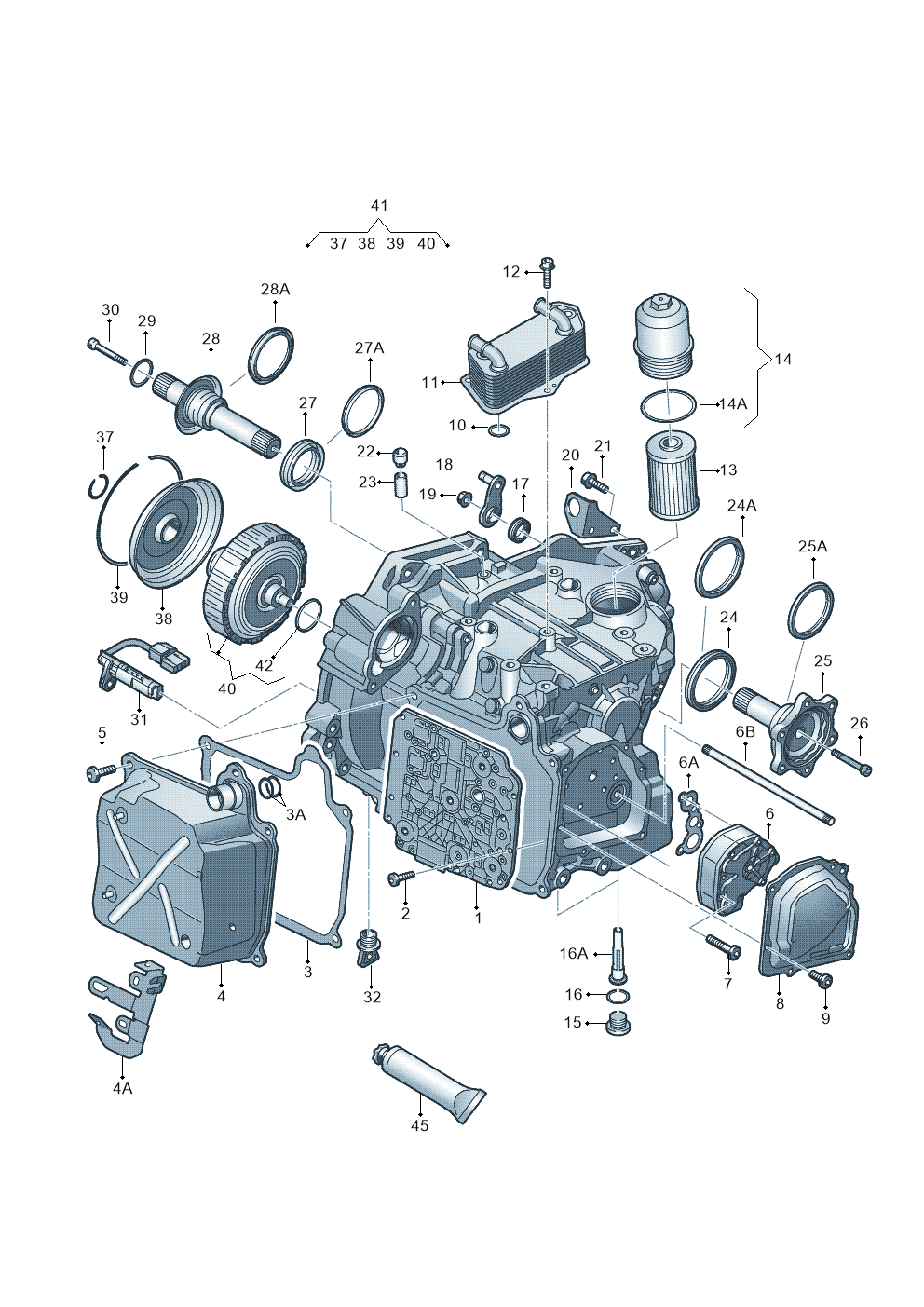

12 vehiclesRepair Set For Multi-coupling — locate Repair Set For Multi-Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Mechatron 02E325025AD
- 2Screw N10554005
- 3Seal 02E321371E
- 3ASeal Ring WHT001403
- 4Cover 02E325201D
- 4AR Bracket 1K0971858AS
- 5Screw N91032702
- 6Oil Pump 02E315105
- 6Part 02E315105A
- 6ASeal 02E321385A
- 6BShaft 02E323561C
- 7Screw N10562602
- 7ABolt N91109001
- 8Cover 02E315141
- 8Cover 02E315141A
- 9Bolt N10451405
- 10Seal Ring N91027901
- 11Oil Cooler 02E409061C
- 12Screw N90986102
- 13Filterelem 02E305051C
- 13AFilterelem 02E398051
- 14Housing 02E305047A
- 14ASeal Ring N91084501
- 15Screw N90215404
- 16Seal Ring N0438092
- 16AOil Pipe 02E321363C
- 17Seal 02A301227M
- 18Lever 02E321171E
- 19Collar Nut N90761102
- 20Abutment 02E321397D
- 22Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 23Pipe 010409847
- 24Seal Ring 02M301189B
- 24Seal Greas G052128A1
- 25FlanshaftLeft02E409343C
- 26Screw 02E409359
- 27Seal Washer 02Q409189
- 29Seal Ring 01M323255
- 37Ring 02E311321F
- 37Ring 02E311321G
- 37Ring 02E311321H
- 37Ring 02E311321J
- 37Ring 02E311321K
- 37Ring 02E311321L
- 37Ring 02E311321M
- 37Ring 02E311321N
- 37Ring 02E311321P
- 37Ring 02E311321Q
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| jetta | 2008-2011 | 41 | 1 | |
| Audi TT Coupe/Roadster 08> | 2007- | 41 | 1 | G1A |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 41 | 1 | G1A |
| GOLF VARIANT 07> | 2007- | 41 | 1 | |
| ALTEA 07> | 2006- | 41 | ||
| JETTA 06> | 2005- | 41 | 1 | |
| New Beetle 06> | 2005- | 41 | 1 | |
| LEON 06> | 2005- | 41 | ||
| Audi A3/S3/quattro | 2005-2007 | 41 | 1 | G1A |
| OCTAVIA/COMBI/4X4 04> | 2004- | 41 | 1 | |
| Audi TT Coupe/Roadster | 2002-2006 | 41 | 1 | G0R |
| New Beetle | 2001-2005 | 41 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Repair Set For Multi-Coupling is fitted on: jetta 2008-2011; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; GOLF VARIANT 07> 2007-; ALTEA 07> 2006-; JETTA 06> 2005-; New Beetle 06> 2005-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; OCTAVIA/COMBI/4X4 04> 2004-; Audi TT Coupe/Roadster 2002-2006; New Beetle 2001-2005.
