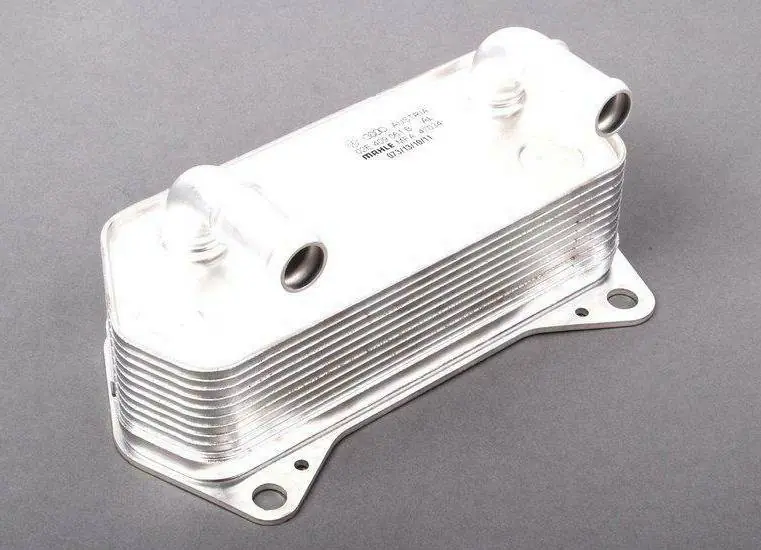

Genuine OEM Audi Transmission Oil Cooler, part number 02E409061B. This essential heat exchanger is designed to reduce the temperature of the transmission fluid, preventing overheating and ensuring the transmission operates efficiently. It is integrated into the transmission system. Weighing approximately 0.60 kg, its precise fin design and robust construction are crucial for effective heat dissipation and maintaining transmission health, a performance characteristic best delivered by genuine OEM components.
Catalogue entry: OIL COOLER QZN,SGJ,SXZ.
Fitted with: N91027901 SEAL. RING, 02E409061D OIL COOLER, N90986102 SCREW.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Austria
- Customs (HS) code
- 87089135
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18.7 × 8.7 × 7.2 cm
- Shipping weight
- 0.6 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Gearbox codes
- PBK, PQC, PQT, QZM, QZN, SET, SFM, SGJ, SXM, SXZ
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
80 vehiclesOil Cooler — locate 02E409061B Audi Transmission Oil Cooler | Drivetrain in the official exploded view and explore the surrounding assembly.
