02M409053G Final Drive Gearbox
- 02M409053BNot stocked
Sep 2000 - 02M409053ENot stocked
Oct 2001 - 02M409053GThis pageNot stocked
Nov 2004 - 02M409053QCurrent · not stocked
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

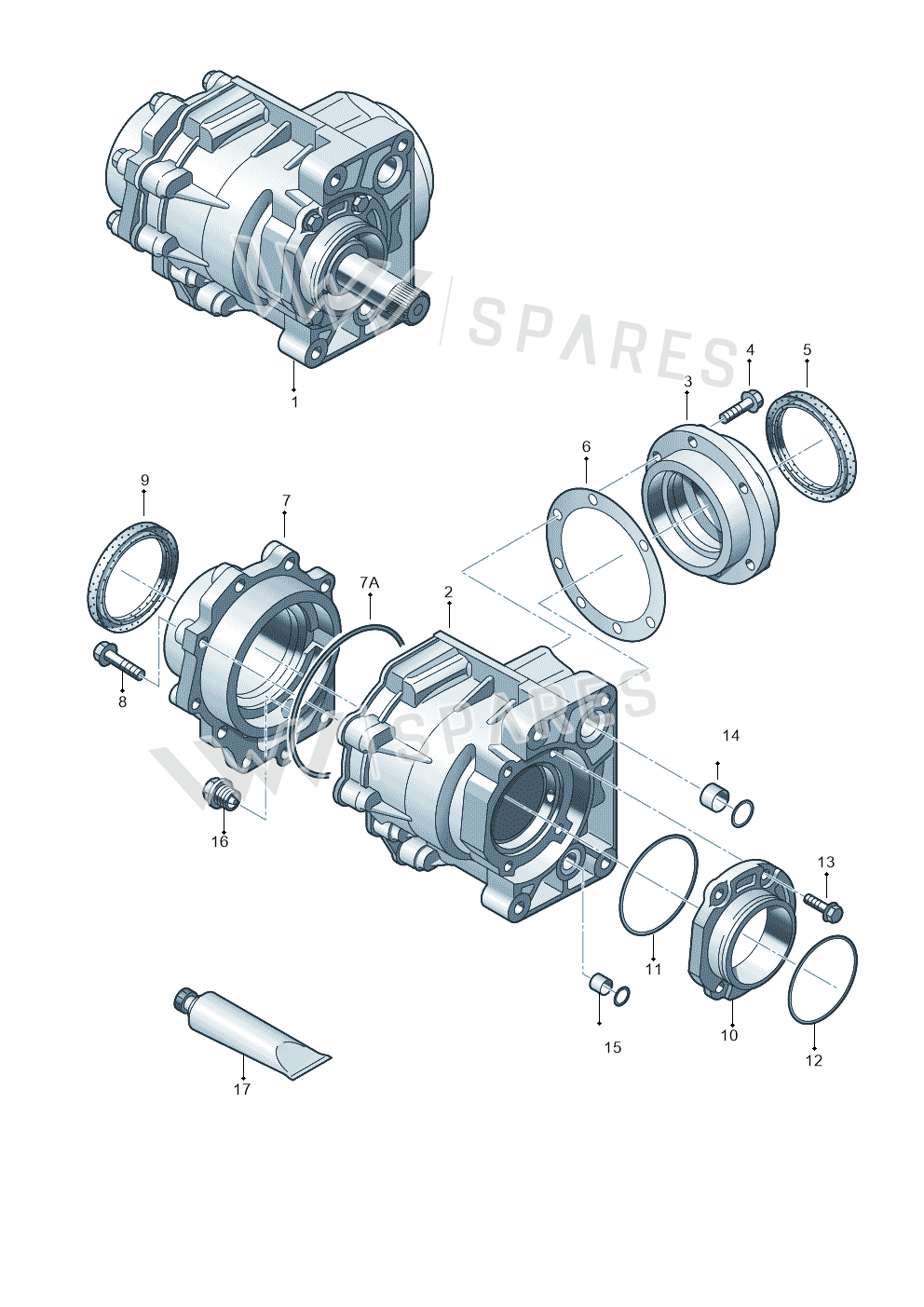

7 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Part 02M409053Q
- 2Housing 02M409107A
- 3Pinion 02M409126A
- 4Bolt N10315601
- 5Seal Washer 09A409400
- 6Washer 02M409114A
- 6Washer 02M409114AA
- 6Washer 02M409114AB
- 6Washer 02M409114B
- 6Washer 02M409114C
- 6Washer 02M409114D
- 6Washer 02M409114E
- 6Washer 02M409114F
- 6Washer 02M409114G
- 6Washer 02M409114H
- 6Washer 02M409114J
- 6Washer 02M409114K
- 6Washer 02M409114L
- 6Washer 02M409114M
- 6Washer 02M409114N
- 6Washer 02M409114P
- 6Washer 02M409114Q
- 6Washer 02M409114R
- 6Washer 02M409114S
- 6Washer 02M409114T
- 6Washer 02M409114
- 7Cover 02M409148A
- 7ASeal Ring N90443001
- 8Washer N0154026
- 8Bolt N10241603
- 8Stud N90832901
- 10Cover 02M409173
- 11Seal Ring 02M409637
- 13Bolt N10128106
- 16Screw 02M409057
- 17Seal Comp AMV18820003
Vehicle fitment table7
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi TT Coupe/Roadster | 2002-2006 | 1 | 1 | FMN | G0L |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 1 | 1 | ESW,FEK,FEL, | |
| Jetta Wagon 02 | 2001-2002 | 1 | 1 | FEK,FEM,FEL, | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 1 | 1 | ||
| Audi TT Coupe/Roadster | 1999-2002 | 1 | 1 | FHC,FHB,FHA, | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 1 | 1 | FHA,FHB,FHC |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: Audi TT Coupe/Roadster 2002-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; AUDI A3/S3/QUATTRO 2000-2003; Audi TT Coupe/Roadster 1999-2002; AUDI A3/S3/QUATTRO 1996-2000; 1J0 platform.
