Target · Diagram
Find this reference above

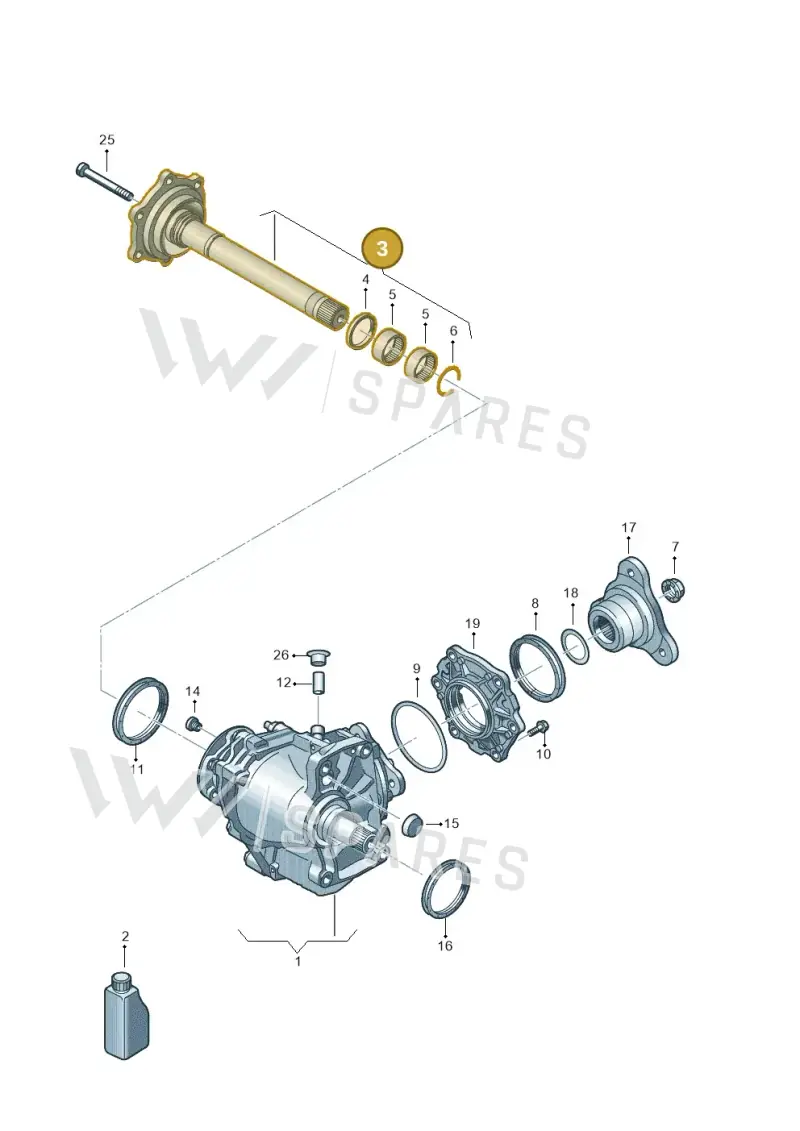

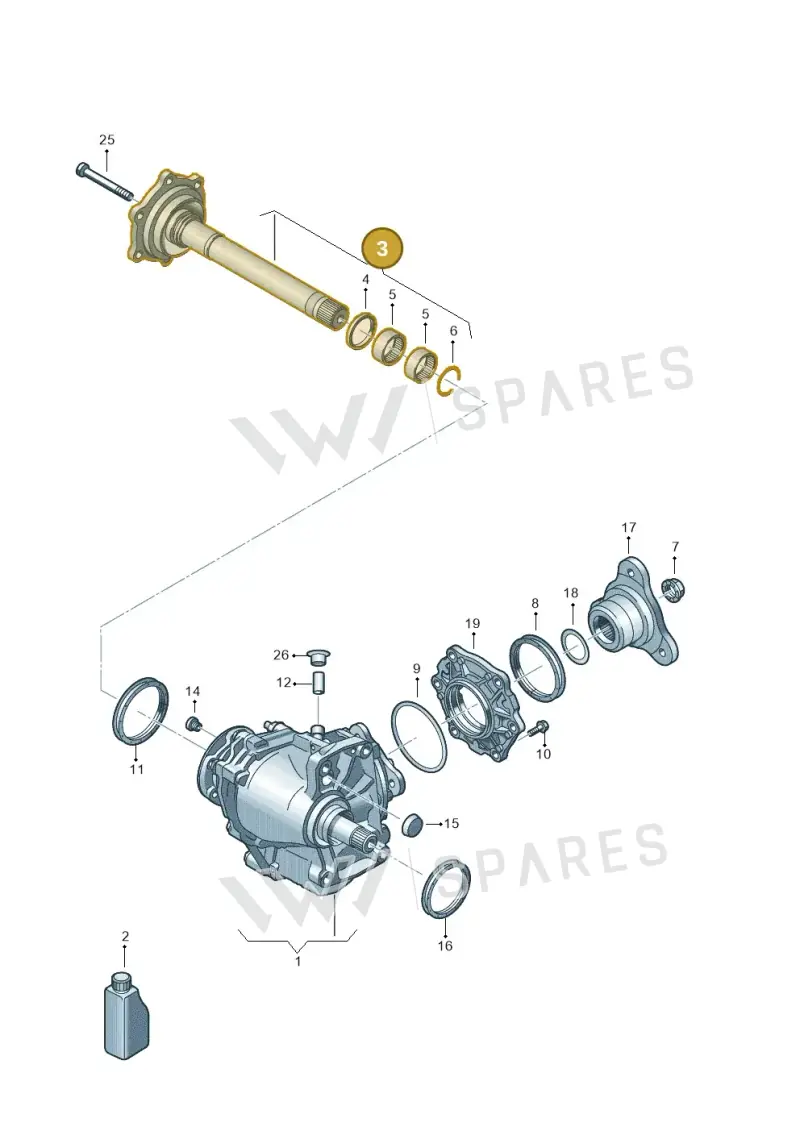

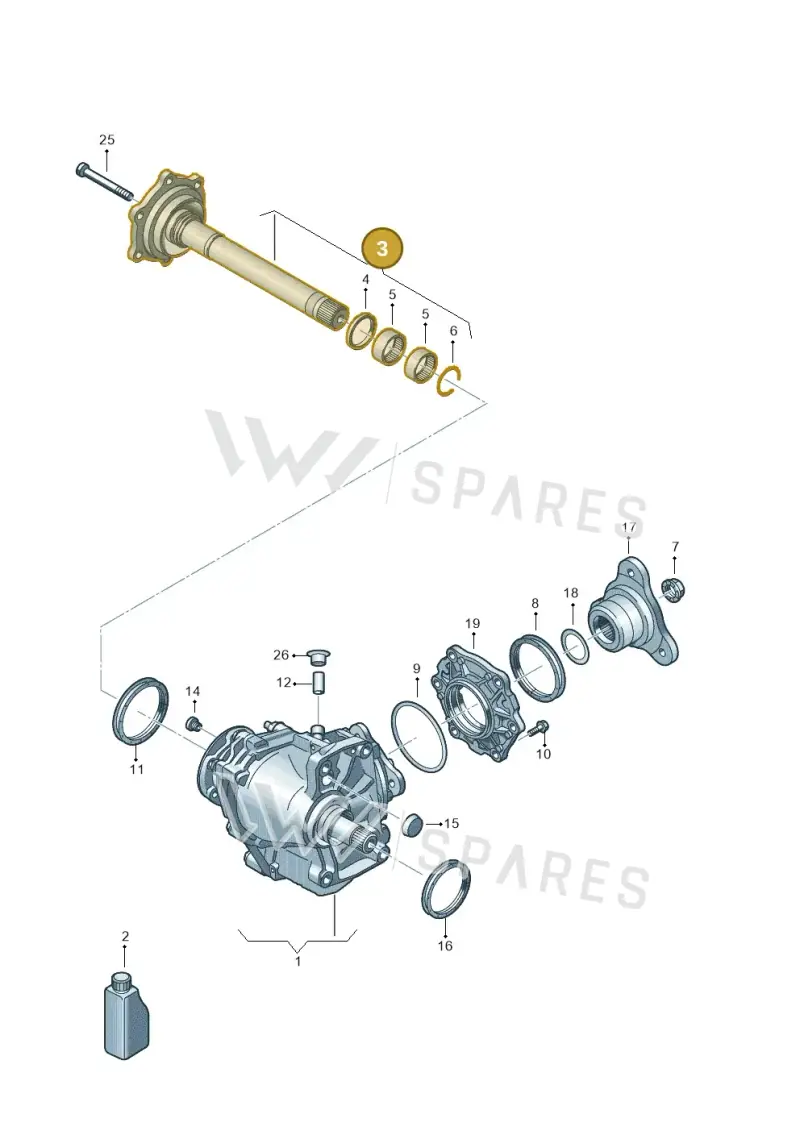

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM VAG Flanged Shaft, part number 02M409351A. This flanged shaft is a critical component within the final drive gearbox assembly. It transmits power from the differential to the wheels. The diagram shows this part as a shaft with a flange at one end, designed to connect to other drivetrain components. Genuine OEM parts are essential for the drivetrain to ensure precise fit, correct material strength, and long-term durability under load.
Catalogue entry: FLANSHAFT.
Fitted with: 02D525596F SEAL, 02J409359 SCREW.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Austria
- Customs (HS) code
- 87085091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34.8 × 11.3 × 11.3 cm
- Shipping weight
- 2.25 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
48 vehiclesFlanged Shaft — locate 02M409351A VAG Flanged Shaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Gearbox 0CN409053AR
- 2Axle Oil G052145S2
- 4Seal Ring 02M409464
- 5Sleeve 012409139A
- 6Circlip 012409419
- 7Part N90443801
- 8Seal 02D525596F
- 9Seal Ring N90357001
- 10Bolt N10128110
- 12Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover N01191410
- 16Seal 09A409529C
- 17Flange 0FV409273A
- 25Screw 02J409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 014301485
Compatible / alternative parts(12)
Vehicle fitment table48
Europe (44)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 3 | 1 | ||
| Kodiaq | 2018-2022 | 3 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 3 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 3 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 3 | 1 | ||
| Karoq | 2017-2022 | 3 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 3 | 1 | ||
| golf 2.0 | 2016-2020 | 3 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 3 | 1 | ||
| Audi A3 Cabrio | 2016-2020 | 3 | 1 | ||
| Leon ST Stylance | 2016-2020 | 3 | 1 | ||
| Superb Combi | 2015-2024 | 3 | 1 | ||
| caddy kombi | 2015-2020 | 3 | 1 | ||
| Passat saloon | 2014-2024 | 3 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 14 | 1 | G0L | |
| Yeti | 2013-2017 | 14 | 1 | G0L | |
| superb | 2013-2015 | 14 | 1 | G0L | |
| Altea XL Reference | 2013-2013 | 14 | 1 | ||
| Tiguan 4Motion | 2011-2018 | 14 | 1 | ||
| Passat CC | 2011-2016 | 14 | 1 | G0L | |
| Audi Q3 quattro | 2011-2015 | 14 | 1 | G0L | |
| Golf | 2011-2013 | 14 | 1 | G0L | |
| Caddy Maxi Kombi | 2010-2015 | 14 | 1 | ||
| Passat saloon | 2010-2015 | 14 | 1 | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 14 | 1 | G0L | |
| Altea XL Reference | 2010-2013 | 14 | 1 | ||
| golf estate | 2009-2013 | 14 | 1 | ||
| Yeti | 2009-2013 | 14 | 1 | G0L | |
| Audi A3 Sportback | 2008-2013 | 14 | 1 | G0L | |
| superb comfort | 2008-2013 | 14 | 1 | G0L | |
| octavia ambiente | 2008-2013 | 14 | 1 | G0L | |
| Passat CC | 2008-2012 | 14 | 1 | G0L | |
| golf 2.0 | 2008-2011 | 14 | 1 | G0L | |
| passat estate | 2008-2011 | 14 | 1 | G0L | |
| caddy panel van | 2008-2010 | 14 | 1 | G0L | |
| GOLF VARIANT 07> | 2007- | 14 | 1 | ||
| Passat/4Motion 08 | 2007- | 14 | 1 | G0L | |
| Audi TT Coupe/Roadster 08> | 2007- | 14 | 1 | G0L | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 14 | 1 | G0L | |
| ALTEA 07> | 2006- | 14 | 1 | ||
| Passat/4Motion | 2005-2007 | 14 | 1 | G0L | |
| Audi A3/S3/quattro | 2005-2007 | 14 | 1 | G0L | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 14 | 1 | G0L | |
| GOLF | 2003-2005 | 14 | 1 | FUQ,FWZ | G0L |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 3 | 1 | ||
| Golf/Rabbit 08> | 2007- | 14 | 1 | G0L | |
| POLO HATCH "ZA"06> | 2005- | 3 | 1 | ||
| Golf/Rabbit | 2005-2007 | 14 | 1 | G0L |
