02Q409021F Differential
- 02Q409021FThis pageNot stocked
Apr 2007 - 02Q409021NNot stocked
Feb 2010 - 02Q409021BACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

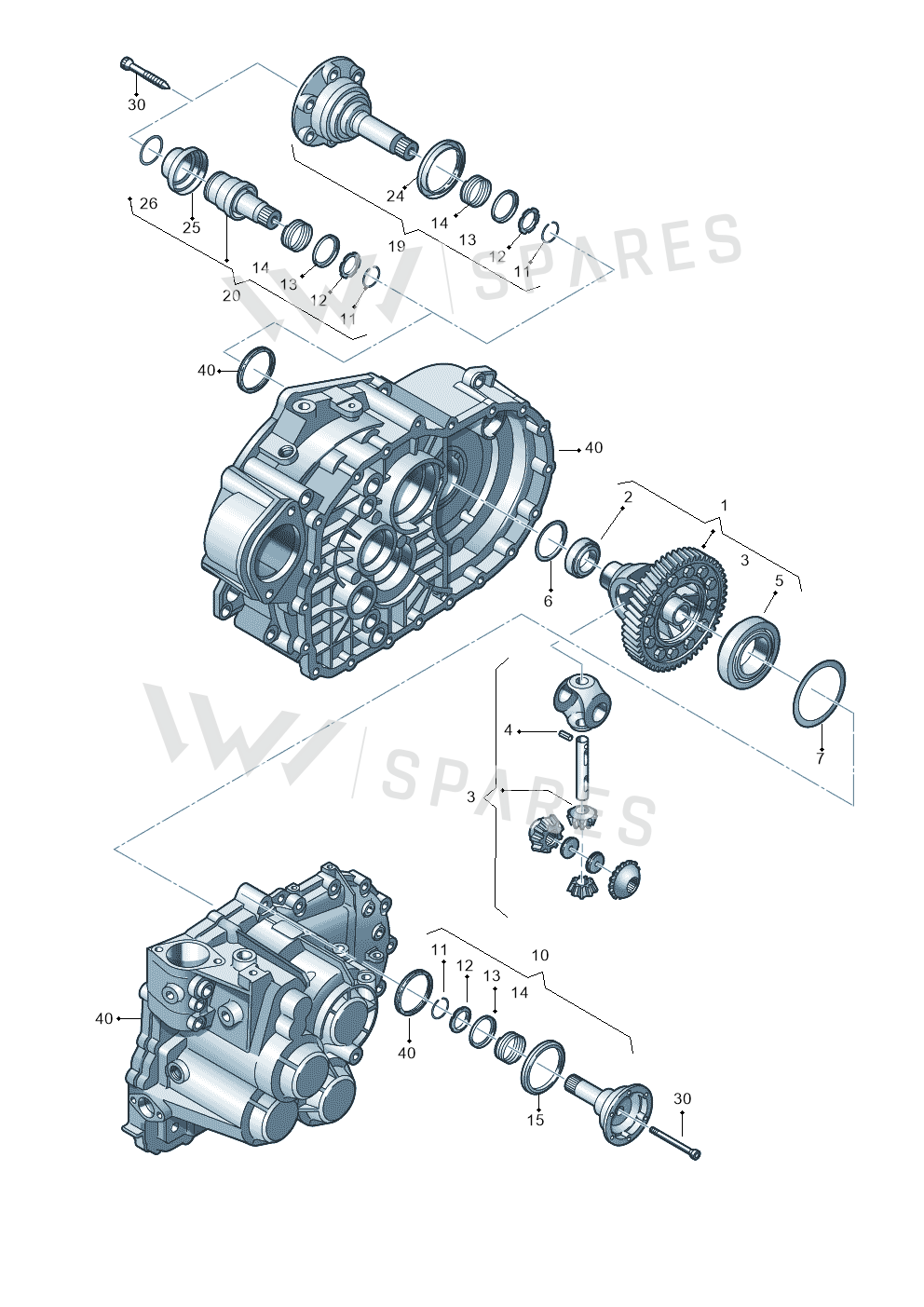

9 vehiclesDifferential — locate Differential in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Gearbox 02Q409021BA
- 1Gearbox 02Q409021A
- 2Mounting 02M517185A
- 3Diff Pinio 02Q498081B
- 4Sleeve N90973701
- 5Mounting 002517185M
- 6Seal Plate 02Q409208
- 7Shims 02B498210
- 10FlanshaftLeft02M409343D
- 11Ring N90635301
- 12Ring 02M409374A
- 13Washer 02M409378A
- 14Press Spring 084409379
- 15Ring 02M409375
- 19FlanshaftRight02Q409344B
- 24Ring 02Q409375A
- 25Ring 02Q409375
- 26Seal Ring 01M323255
- 30Screw 02J409359
Vehicle fitment table9
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 1 | 1 | HVS,JLT,JMA | |
| GOLF PLUS 05> | 2005- | 1 | 1 | G0K | |
| LEON 06> | 2005- | 1 | 1 | HDU,HVS,JLT, | |
| Passat/4Motion | 2005-2007 | 1 | 1 | HVS,JMA | G0K |
| Audi A3/S3/quattro | 2005-2007 | 1 | 1 | HVS,JMA | G0K |
| TOURAN | 2005-2006 | 1 | 1 | ||
| TOLEDO 05> | 2004- | 1 | 1 | HDU,JMA,JLT, | |
| TOURAN | 2003-2005 | 1 | 1 | HDU | G0K |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 | 1 | HVS,JMA | G0K |
Diagrams & fitment data powered by oemdiagrams.com
Differential is fitted on: ALTEA 07> 2006-; GOLF PLUS 05> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; TOURAN 2003-2005; Golf/Rabbit 2005-2007.
