Product overview

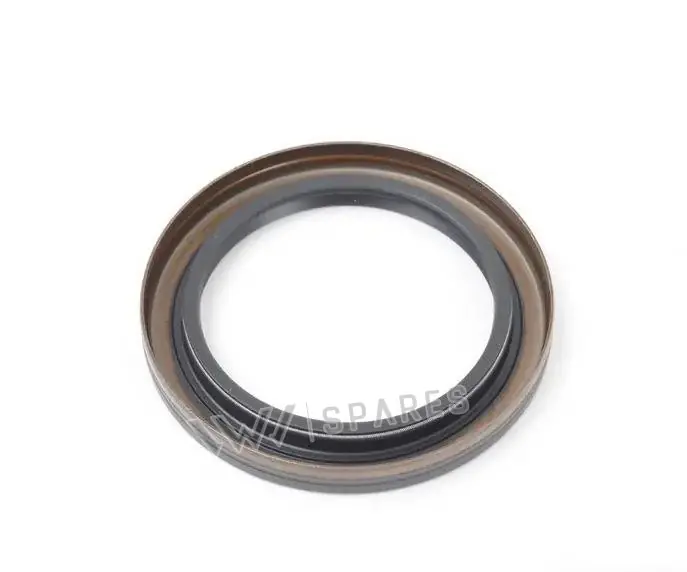

Genuine OEM Audi Axle Flange Seal, part number 02Q409189A. This component is a critical sealing ring designed to prevent fluid leakage from the axle flange. It is typically installed at the front axle. Constructed from durable rubber and metal, it measures approximately 0.072m in diameter. Using a genuine OEM seal ensures a precise fit and the correct material properties to withstand operating temperatures and pressures, preventing fluid loss and contamination of critical drivetrain components.
Catalogue entry: SEAL.WASHE 54X73X8.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Hungary
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7.2 × 7.2 × 0.8 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 54x73x8
- Gearbox codes
- PNS, PZR, PZS, QFE, RBQ, SFR, SFV, SFW, SFX, SGA, SGD, SYK, SYL, SYP, SYS, SYT, SZA, TGB, THY, TTJ, UNX, VDR, VDS, VDT
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

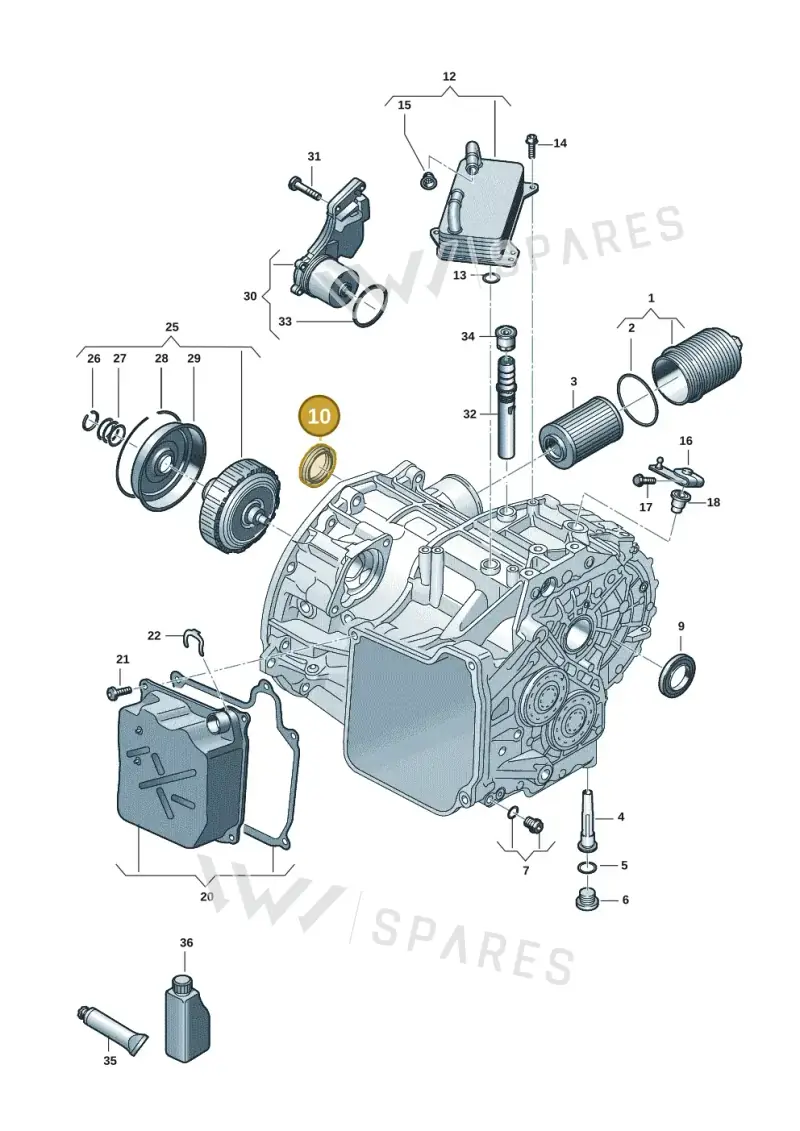

Parts diagram & fitment
43 vehiclesRadial Shaft Seal — locate 02Q409189A Audi Axle Flange Seal | Front in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Housing 0BH325159
- 2Seal Ring N91084501
- 3Filterelem 0GC325183A
- 3Filterelem 0GC325183D
- 4Oil Pipe 0GC321363
- 5Seal Ring N0438092
- 6Screw N90215404
- 7Bolt N90965401
- 9Seal Washer 0BH409400E
- 12Oil Cooler 0GC317019F
- 13Seal Ring WHT008226
- 14Screw N91048802
- 15Filterelem 0GC317093
- 16Lever 0BH321171
- 17Bolt N90441603
- 18Seal Ring 095321182B
- 20Cover 0GC325201L
- 21Screw N91032702
- 22Clip 0BH325147
- 25Rep Set 0GC398029K
- 26Ring 0BH311321
- 27Shims 0BH398008
- 28Ring 0BH301859A
- 29Cover 0GC301205D
- 30Drive 0GC927373M
- 31Bolt N10632102
- 32Pipe 0GC301047D
- 33Seal Ring 0GC927115
- 35Grease G000100
- 35Seal Greas G055128A1
- 35Grease G060735A2
- 36Il Dual Clutch Transmission Fluid Dual Clutch G055529A2
Compatible / alternative parts(12)
Vehicle fitment table43
Europe (38)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2024- | 10 | 1 | ||
| passat estate | 2023- | 10 | 1 | ||
| Tiguan 2.0 | 2023- | 10 | 1 | ||
| Superb Combi | 2023- | 10 | 1 | ||
| Formentor TSI CUPRA | 2020- | 10 | 1 | UNX,VDS | |
| Caddy Maxi Kombi | 2020-2024 | 10 | 1 | ||
| Leon style | 2019- | 10 | 1 | TGB,TTJ,VDR, | |
| Golf 2.0 BlueMotion | 2019-2024 | 10, 24 | 1 | ||
| Octavia | 2019-2024 | 24, 10 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 10 | 1 | ||
| Tarraco FR | 2018-2024 | 10 | 1 | ||
| Kodiaq | 2018-2022 | 3, 24 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 10, 24 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 10 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 10 | 1 | ||
| Arteon | 2017-2023 | 10 | 1 | ||
| Karoq | 2017-2022 | 10 | 1 | ||
| Octavia | 2017-2020 | 24, 34 | 1 | ||
| Ateca Style | 2016- | 24 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 10 | 1 | ||
| Kodiaq | 2016-2024 | 10, 3 | 1 | ||
| golf 2.0 | 2016-2020 | 10, 30 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 27, 34 | 1 | ||
| Audi A3 Cabrio | 2016-2020 | 27 | 1 | G1A | |
| Leon ST Stylance | 2016-2020 | 41 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 27, 34 | 1 | G1A | |
| Superb Combi | 2015-2024 | 10 | 1 | ||
| caddy kombi | 2015-2020 | 10, 38 | 1 | ||
| Passat saloon | 2014-2024 | 10, 30 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 34 | 1 | ||
| Audi A1 Sportback | 2014-2018 | 3 | 1 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 30 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 30 | 1 | QHM,SFX | |
| superb | 2013-2015 | 3 | 1 | ||
| Octavia | 2012-2017 | 41 | 1 | ||
| Leon ST Stylance | 2012-2016 | 3 | 1 | PNS | |
| Passat CC | 2008-2012 | 27 | 1 | ||
| OCTAVIA/COMBI/4X4 04> | 2004- | 3 | 1 | KNP,KNQ,KNS, |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Taos 1.4 | 2021-2023 | 10 | 1 | ||
| Taos 1.4 | 2020-2024 | 10 | 1 | ||
| Jetta 1.4 | 2017-2024 | 24, 30 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2022 | 10, 38 | 1 | ||
| POLO HATCH "ZA"06> | 2005- | 24, 30 | 1 |
