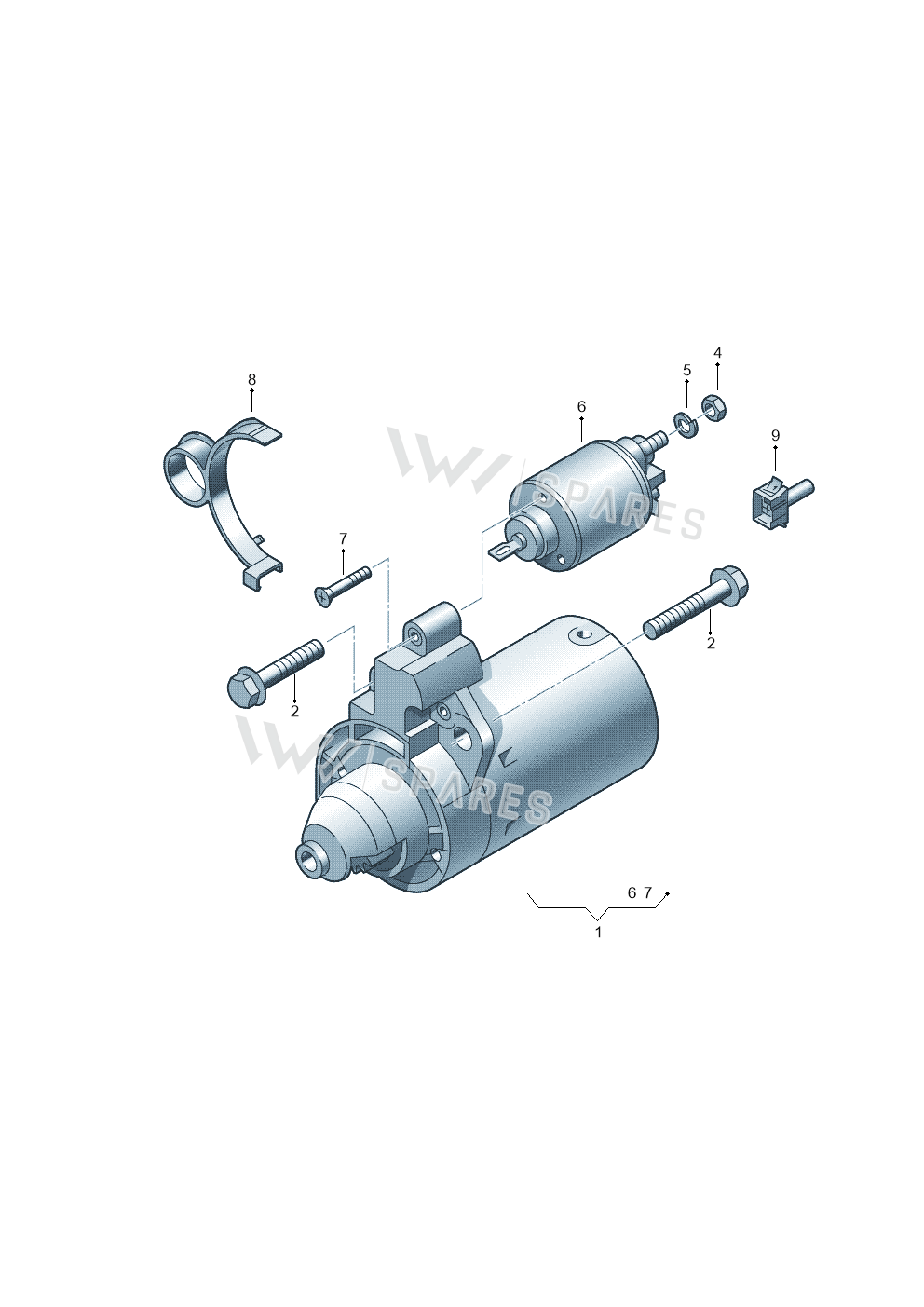

Solenoid Switch exploded parts diagram — Toledo Reference · 2015-2019, position 6
Exploded view
Toledo Reference · 2015-2019 · position 6Full diagram ↓
02Z911287A

02Z911287A Solenoid Switch

£184.30
£152.31 excl. VAT
Supersession roadoldest to newest
  1. 02Z911287AThis pageNot stocked
    Jul 2017
  2. 0AM911287BCurrent · not stocked
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

41 vehicles

Solenoid Switch — locate Solenoid Switch in the official exploded view and explore the surrounding assembly.

Parts in this assembly37
Vehicle fitment table41

Europe (39)

VehicleYearsPos.QtyRemarkPR
Toledo Reference2015-20196BOSCH02
Yeti2013-20176
Altea XL Reference2013-20136
Polo2012-20147
Ibiza Reference2012-20126
Tiguan 4Motion2011-20187
new beetle2011-20167
new beetle cabriolet2011-20167
Golf Cabriolet2011-20167
Passat CC2011-20167
transp. caravelle2011-20157
transp. dropside2011-20157
California Camper2011-20157
Audi Q3 quattro2011-20156
Golf Plus2011-20147
Golf2011-20137
Ibiza Reference2011-20126
Sharan Blue Motion2010-20157
Caddy Maxi Kombi2010-20157
Touran 2.02010-20157
Passat saloon2010-20157
Audi A1 Sportback2010-20156
Altea XL Reference2010-20136
Alhambra Stylance2010-20136
Leon Stylance2010-20126
Yeti2009-20136
Polo2009-20127
Golf Plus 1.62009-20117
Scirocco 2.02008-20146
Audi A3 Sportback2008-20136
superb comfort2008-20135
Passat CC2008-20126
golf 2.02008-20116
passat estate2008-20116
Ibiza Reference2008-20116BOSCH
EOS 2.02008-20106
TIGUAN 08>2007-6
ALTEA 07>2006-6
LEON 06>2005-6

Other markets (1)

VehicleYearsPos.QtyRemarkPR
DIES.-IND.-MOT.1,9>2,0 08>2007-6, 717KY

Platform / generic diagrams (1)

VehicleYearsPos.QtyRemarkPR
06A platform617KY

Diagrams & fitment data powered by oemdiagrams.com

Solenoid Switch is fitted on: Toledo Reference 2015-2019; Yeti 2013-2017; Altea XL Reference 2013-2013; Polo 2012-2014; Ibiza Reference 2012-2012; Tiguan 4Motion 2011-2018; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Passat CC 2011-2016; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Audi Q3 quattro 2011-2015; Golf Plus 2011-2014; Golf 2011-2013; Ibiza Reference 2011-2012; Sharan Blue Motion 2010-2015; Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Passat saloon 2010-2015; Audi A1 Sportback 2010-2015; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Leon Stylance 2010-2012; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; superb comfort 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; Ibiza Reference 2008-2011; EOS 2.0 2008-2010; TIGUAN 08> 2007-; ALTEA 07> 2006-; LEON 06> 2005-; DIES.-IND.-MOT.1,9>2,0 08> 2007-; 06A platform.
