036103101BF Cylinder Block
- 036103101BENot stocked
Oct 2006 - 036103101BFThis pageDiscontinued
Feb 2026
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

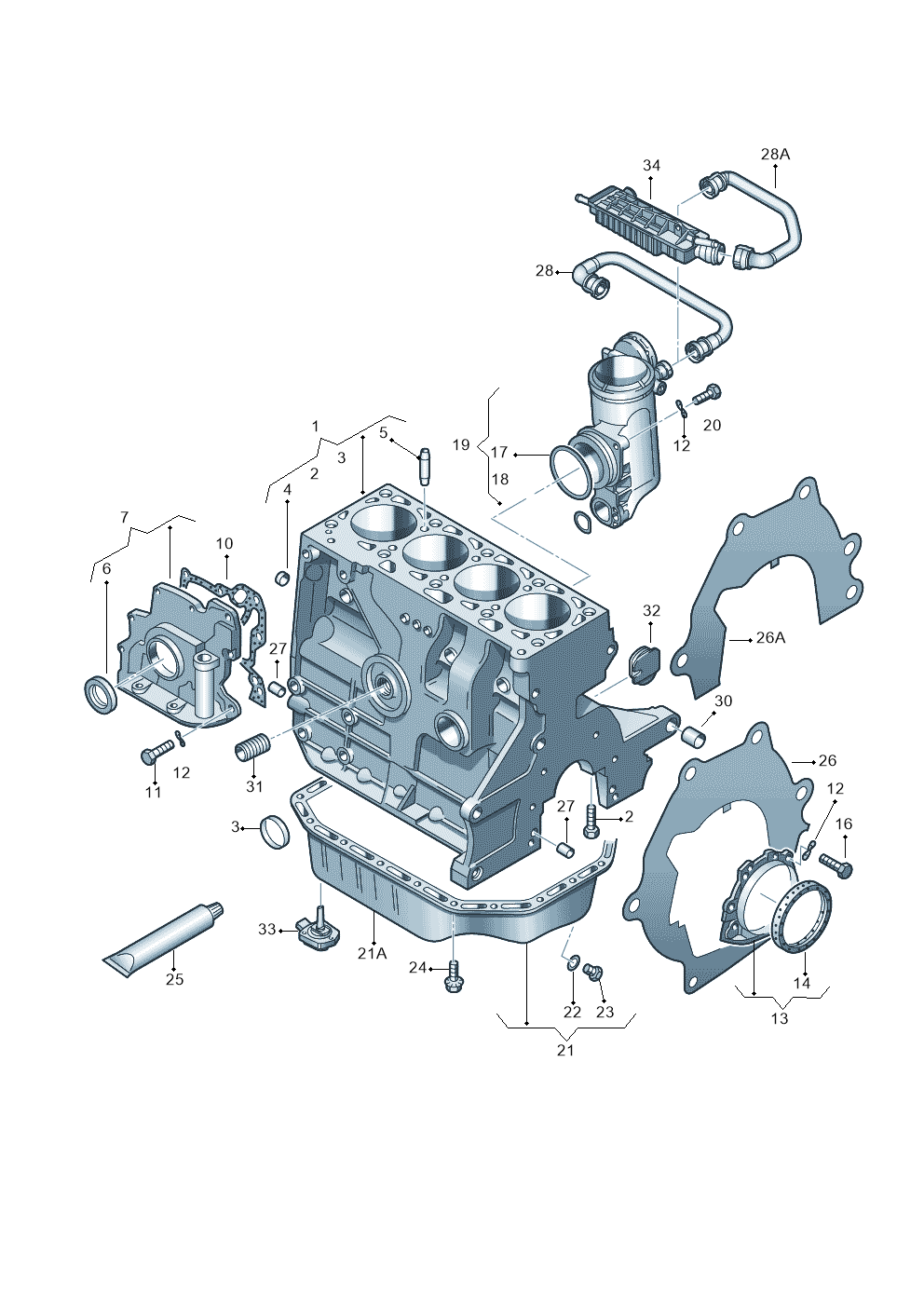

22 vehiclesCylinder Block — locate Cylinder Block in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Cylinder Block 036103101BH
- 3Cover 036103113
- 3Cover 036103113A
- 4Cover 03C103113
- 4Cover N0119096
- 5Part 026103139
- 6Seal 036103085H
- 10Seal 032103161K
- 13Flange 030103171S
- 13Flange 036103171B
- 16Bolt N90842402
- 17Seal Ring N90617501
- 18Seal Ring 036103677
- 19Separator 036103464AH
- 20Screw N10432603
- 21AOil Sump 032103603AB
- 21AOil Sump 036103601AM
- 23Bolt N90813202
- 24Screw N10248003
- 24Screw N90500605
- 25Seal D176600A1
- 26Spacer Pl 036103551S
- 26ASpacer Pl 036103551K
- 27Part N0432072
- 28Hose 036103493CP
- 28AHose 036103493EC
- 32Bungs 030103037D
Vehicle fitment table22
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| octavia ambiente | 2008-2013 | 1 | 1 | BUD | D4W |
| GOLF PLUS 05> | 2005- | 1 | 1 | BCA | MN7 |
| POLO | 2005- | 1 | 1 | BKY | |
| New Beetle 06> | 2005- | 1 | 1 | MN7 | |
| New Beetle Cabrio. 06> | 2005- | 1 | 1 | ||
| IBIZA 06> | 2005- | 1 | 1 | BKY | |
| CORDOBA 06> | 2005- | 1 | 1 | BKY | |
| CADDY | 2004- | 1 | 1 | BCA | MN7 |
| OCTAVIA/COMBI/4X4 04> | 2004- | 1 | 1 | BCA | |
| FABIA/COMBI 05> | 2004- | 1 | 1 | BKY | |
| GOLF | 2003-2005 | 1 | 1 | MN7 | |
| CORDOBA/SE241 | 2002-2005 | 1 | 1 | BKY | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 1 | 1 | AHW,AXP,BCA | |
| POLO | 2001-2005 | 1 | 1 | BKY | |
| IBIZA | 2001-2005 | 1 | 1 | BKY | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 1 | 1 | ||
| FABIA/COMBI | 1999-2004 | 1 | 1 | G0C,G0K | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 1 | 1 | AHW,APE,AXP |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 | 1 | BCA | MN7 |
| POLO CLASSIC "CN"03>06 | 2003-2006 | 1 | 1 | PR: | |
| POLO "CN"02>06 | 2002-2006 | 1 | 1 | ||
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 1 | 1 | BBY |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block is fitted on: octavia ambiente 2008-2013; GOLF PLUS 05> 2005-; POLO 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; CADDY 2004-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; GOLF 2003-2005; CORDOBA/SE241 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; IBIZA 2001-2005; OCTAVIA/COMBI/4X4 01> 2000-; FABIA/COMBI 1999-2004; TOLEDO/LEON/LEON-4 1998-2001; Golf/Rabbit 2005-2007; POLO CLASSIC "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006.
