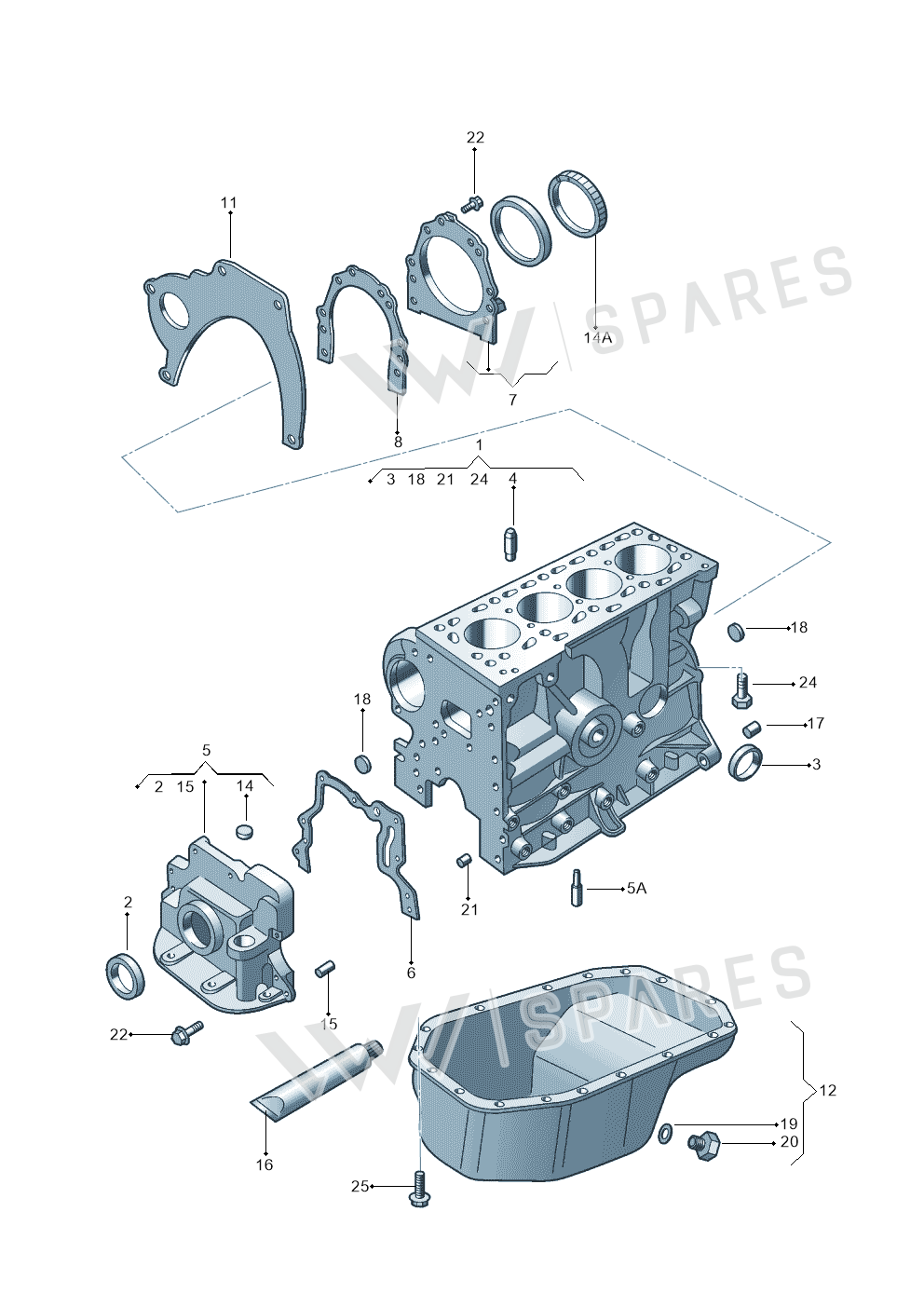

Engine Oil Sump exploded parts diagram — FOX 04> · 2003-, position 12 — FOX 04> · 2003- · position 12Full diagram ↓

036103601AF

036103601AF Engine Oil Sump

Name: 036103601AF Engine Oil Sump
Brand: Volkswagen
SKU: 036103601AF
Price: 142.36 GBP
Availability: Discontinued

£142.36

£117.65 excl. VAT

Supersession roadoldest to newest

036103601AF
Not stocked Apr 2007
You are here
036103601AL
Discontinued Feb 2026

036103601AFThis pageNot stocked
Apr 2007
036103601ALDiscontinued
Feb 2026

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Engine Oil Sump — locate Engine Oil Sump in the official exploded view and explore the surrounding assembly.

Parts in this assembly22

Vehicle fitment table3

Europe (1)

Vehicle	Years	Pos.	Qty	Remark	PR
FOX 04>	2003-	12	1		TB0,T97

Other markets (2)

Vehicle	Years	Pos.	Qty	Remark	PR
POLO-BRASIL	2002-2006	12, 9	1		G0C
POLO LIM.(SEDAN) "BR"	2002-2006	9	1	BLM	G0C
