036107065AT Piston Complete
- 036107065TNot stocked
May 2003 - 036107065ALNot stocked
Jun 2002 - 036107065ATThis pageNot stocked
Dec 2006 - 036107065AT001Discontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

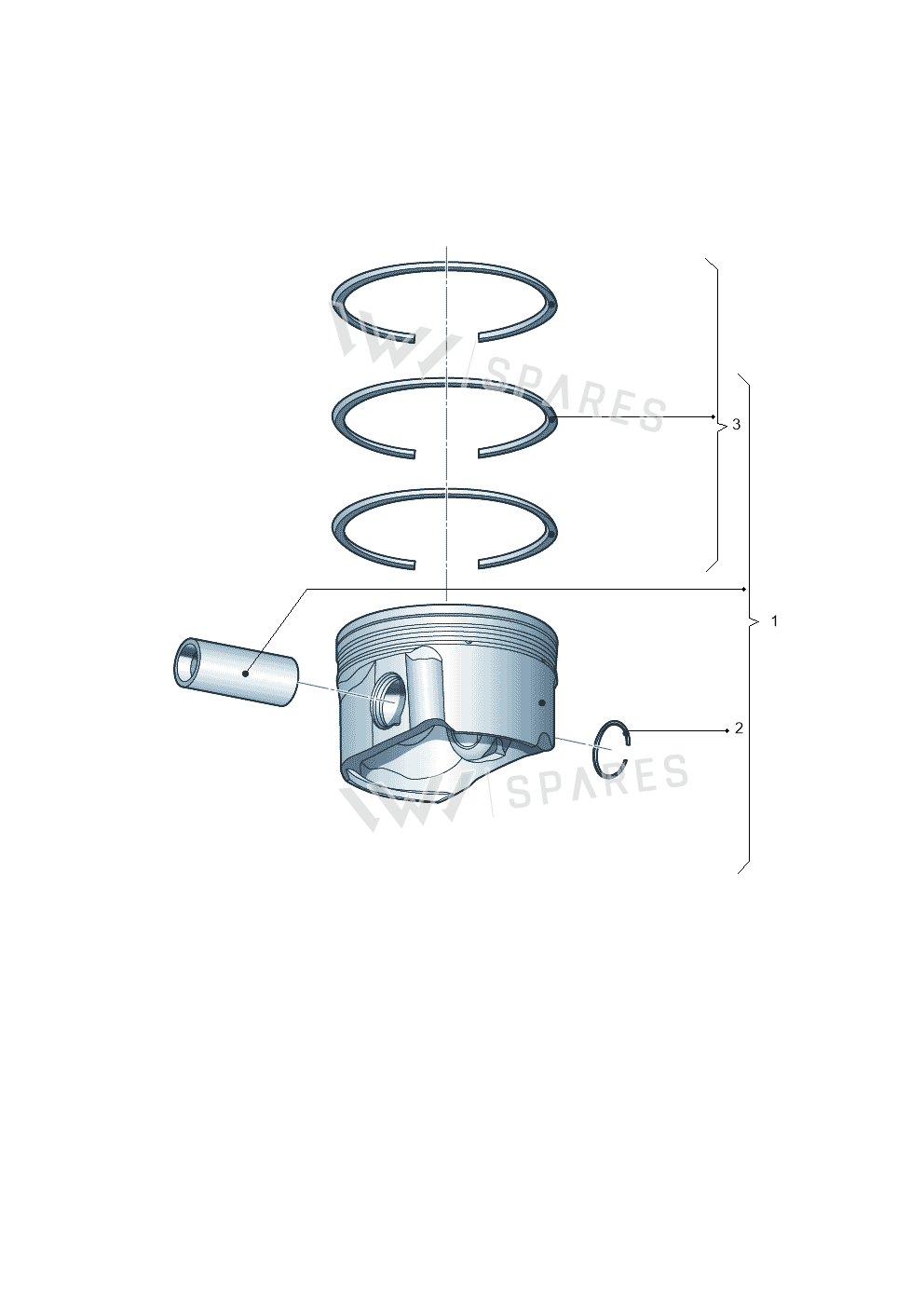

32 vehiclesPiston Complete — locate Piston Complete in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Piston 038107065GA
- 1Piston 038107065GB
- 1Piston 038107065GN
- 1Piston 038107065GP
- 1Piston 038107065JM
- 1Piston 038107065LC
- 1Piston 038107065LD
- 1Piston 038107065LH
- 1Piston 06A107065BA
- 1Piston 06A107065BT
- 1Piston 06A107065N
- 1Piston 06B107065N
- 1Piston 038107065JL
- 1Piston 07K107065F
- 2Circlip N10133301
- 2Circlip N90454001
- 2Circlip 06A107441
- 3Piston Ring 030198151F
- 3Piston Ring 06A198151F
- 3Piston Ring 06B198151A
- 3Piston Ring 06B198151B
- 3Piston Ring 038198151
- 3Piston Ring 038198151A
- 3Piston Ring 06D198151A
Vehicle fitment table32
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Beetle 06> | 2005- | 1 | 4 | BCA | MN7 |
| New Beetle Cabrio. 06> | 2005- | 1 | 4 | BCA | |
| New Beetle Cabrio. | 2003-2005 | 1 | 4 | BCA | MN7 |
| LUPO/3L TDI | 2003-2005 | 1 | 4 | ||
| Jetta/Wagon | 2002-2006 | 1 | X | ||
| CORDOBA/SE241 | 2002-2005 | 1 | 4 | BBY | MN7 |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 1 | 4 | BCA,AHW,AXP | MN7 |
| POLO | 2001-2005 | 1 | X | ||
| New Beetle | 2001-2005 | 1 | 4 | BCA | |
| IBIZA | 2001-2005 | 1 | 4 | BBY | MN7 |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 1 | X | ||
| Jetta Wagon 02 | 2001-2002 | 1 | X | ||
| Jetta Wagon | 2001-2001 | 1 | |||
| OCTAVIA/COMBI/4X4 01> | 2000- | 1 | 4 | BCA,AXP | MN7 |
| AUDI A2 | 2000-2005 | 1 | 4 | AUA,BBY | T1Q |
| FABIA/COMBI | 1999-2004 | 1 | 4 | AUA,BBY | T1Q |
| CORDOBA/VARIO | 1999-2002 | 1 | 4 | AUA | |
| IBIZA | 1999-2002 | 1 | 4 | AUA,APE | |
| POLO CLASSIC/VARIANT | 1999-2001 | 1 | 4 | AUA | |
| POLO | 1999-2001 | 1 | X | ||
| LUPO/3L TDI | 1998-2003 | 1 | |||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 1 | 4 | AXP | |
| Golf | 1998-2000 | 1 | |||
| AROSA | 1997-2003 | 1 | 4 | AHW | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 1 | 4 | AUA | |
| INCA (SEAT-VAN) | 1995-2003 | 1 | 4 | AUA |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 1 | X | ||
| POLO CLASSIC "CN"03>06 | 2003-2006 | 1 | 4 | PR:0GU:BCC | MN7 |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 1 | X | ||
| POLO "CN"02>06 | 2002-2006 | 1 | 4 | PR:0GU:BCC | |
| POLO-BRASIL | 2002-2006 | 1 | 4 | BBY | MN7 |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 1 | 4 | BBY |
Diagrams & fitment data powered by oemdiagrams.com
Piston Complete is fitted on: New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; New Beetle Cabrio. 2003-2005; LUPO/3L TDI 2003-2005; Jetta/Wagon 2002-2006; CORDOBA/SE241 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; New Beetle 2001-2005; IBIZA 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A2 2000-2005; FABIA/COMBI 1999-2004; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; LUPO/3L TDI 1998-2003; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AROSA 1997-2003; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC "ZA"03>05 2003-2005; POLO "CN"02>06 2002-2006; POLO-BRASIL 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006.
