036115251AD Suction Line
- 036115251ADThis pageNot stocked
May 2007 - 036115251AJCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

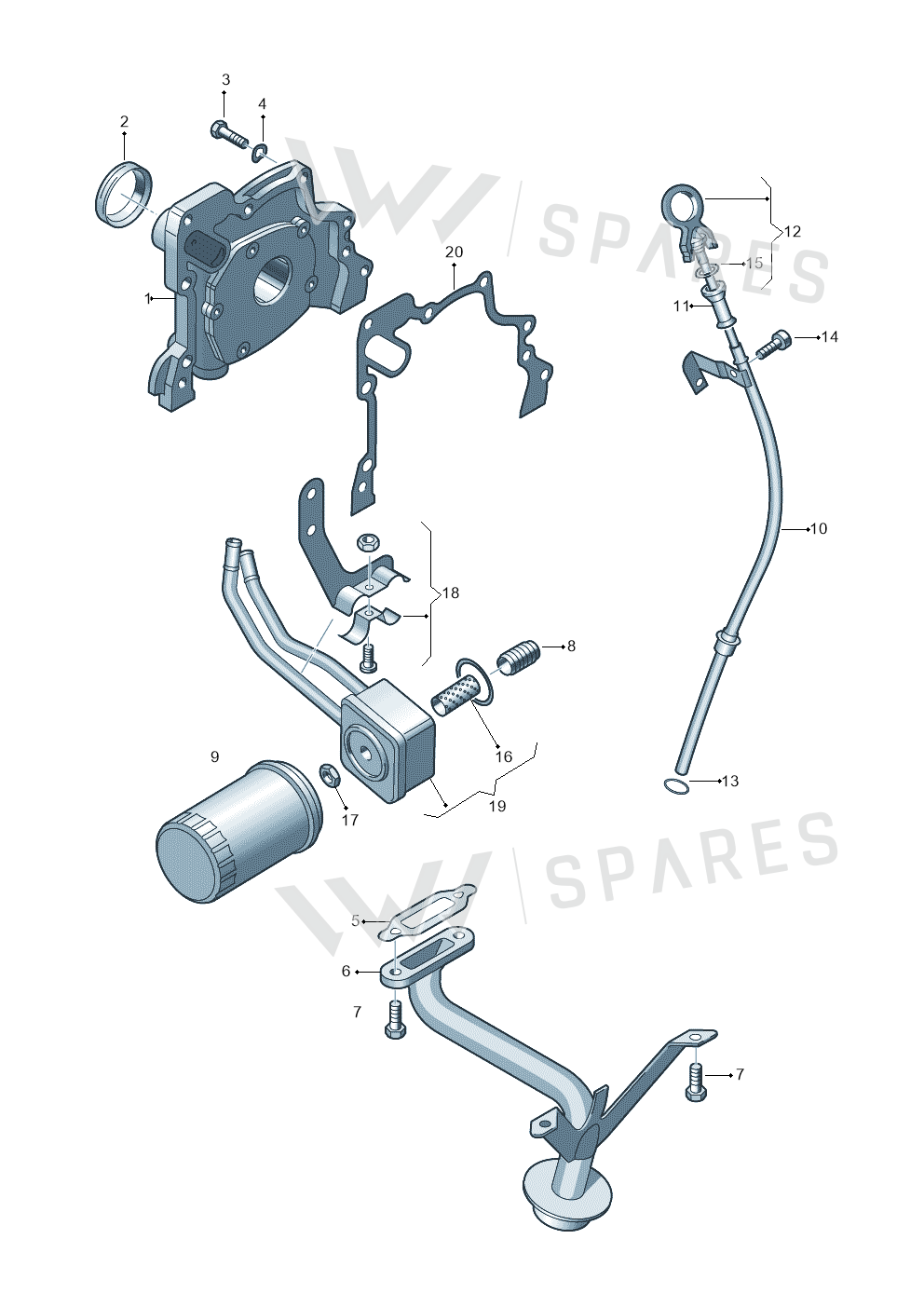

32 vehiclesSuction Line — locate Suction Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Oil Pump 036115105D
- 2Seal 036103085H
- 3Bolt N0102228
- 4Washer N0122265
- 5Seal 036115111
- 6Pipe 036115251AJ
- 6Pipe 036115251T
- 6Pipe 036115251AE
- 7Bolt N0902619
- 8Union 059115721
- 9Oil Filter 030115561AB
- 10Tube 036115629AP
- 10Tube 036115629P
- 10Tube 036115629K
- 10Tube 036115629AN
- 11Guide 030115636A
- 12Oil Dipsti 030115611R
- 13Seal Ring N90032204
- 14Screw N01471015
- 15Seal Ring 030115444
- 20Seal 032103161K
Vehicle fitment table32
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Roomster | 2010-2015 | 6 | 1 | QG0 | |
| Fabia Scout | 2010-2014 | 6 | 1 | QG0 | |
| ALTEA 07> | 2006- | 6 | 1 | TT1 | |
| ROOMSTER 06> | 2006- | 6 | 1 | QG0 | |
| FABIA/COMBI NF 07> | 2006- | 6 | 1 | QG0 | |
| FOX M.05> | 2005- | 6 | 1 | ||
| GOLF PLUS 05> | 2005- | 6 | 1 | BCA | MN7 |
| POLO | 2005- | 6 | 1 | G0C,T1Q | |
| New Beetle 06> | 2005- | 6 | 1 | MN7,T1Q,0GG | |
| New Beetle Cabrio. 06> | 2005- | 6 | 1 | MN7,T1Q,0GG | |
| LEON 06> | 2005- | 6 | 1 | TT1 | |
| IBIZA 06> | 2005- | 6 | 1 | G0C,QG0,T1Q | |
| CORDOBA 06> | 2005- | 6 | 1 | G0C,T1Q | |
| CADDY | 2004- | 6 | 1 | MN7 | |
| TOLEDO 05> | 2004- | 6 | 1 | TT1 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 6 | 1 | BCA | |
| FABIA/COMBI 05> | 2004- | 6 | 1 | BKY | |
| FOX 04> | 2003- | 6 | 1 | AQZ,BJE,BNX | TB0,T97 |
| New Beetle Cabrio. | 2003-2005 | 6 | 1 | MN7,T1Q | |
| GOLF | 2003-2005 | 6 | 1 | MN7 | |
| CORDOBA/SE241 | 2002-2005 | 6 | 1 | BBY | |
| POLO | 2001-2005 | 6 | 1 | G0C,T1Q | |
| New Beetle | 2001-2005 | 6 | 1 | MN7,T1Q | |
| IBIZA | 2001-2005 | 6 | 1 | BBY | |
| AUDI A2 | 2000-2005 | 6 | 1 | T1Q | |
| FABIA/COMBI | 1999-2004 | 6 | 1 | BKY |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO HATCH "BR."07> | 2006- | 6 | 1 | BLM | |
| POLO SEDAN "BR."07> | 2006- | 6 | 1 | BLM | G0C |
| Golf/Rabbit | 2005-2007 | 5 | 1 | ||
| POLO CLASSIC "CN"03>06 | 2003-2006 | 6 | 1 | G0C,MN7,7GF | |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 6 | 1 | T1Q | |
| POLO "CN"02>06 | 2002-2006 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Suction Line is fitted on: Roomster 2010-2015; Fabia Scout 2010-2014; ALTEA 07> 2006-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; FOX M.05> 2005-; GOLF PLUS 05> 2005-; POLO 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; CADDY 2004-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; FOX 04> 2003-; New Beetle Cabrio. 2003-2005; GOLF 2003-2005; CORDOBA/SE241 2002-2005; POLO 2001-2005; New Beetle 2001-2005; IBIZA 2001-2005; AUDI A2 2000-2005; FABIA/COMBI 1999-2004; POLO HATCH "BR."07> 2006-; POLO SEDAN "BR."07> 2006-; Golf/Rabbit 2005-2007; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC "ZA"03>05 2003-2005; POLO "CN"02>06 2002-2006.
