036905715 Ignition Coil With Spark Plug Connector
- 036905100ANot stocked
Apr 2002 - 036905100BNot stocked
Jan 2003 - 036905100DNot stocked
Oct 2003 - 036905715This pageNot stocked
Mar 2005 - 036905715ANot stocked
Sep 2006 - 036905715GNot stocked
Feb 2019 - 036905715HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

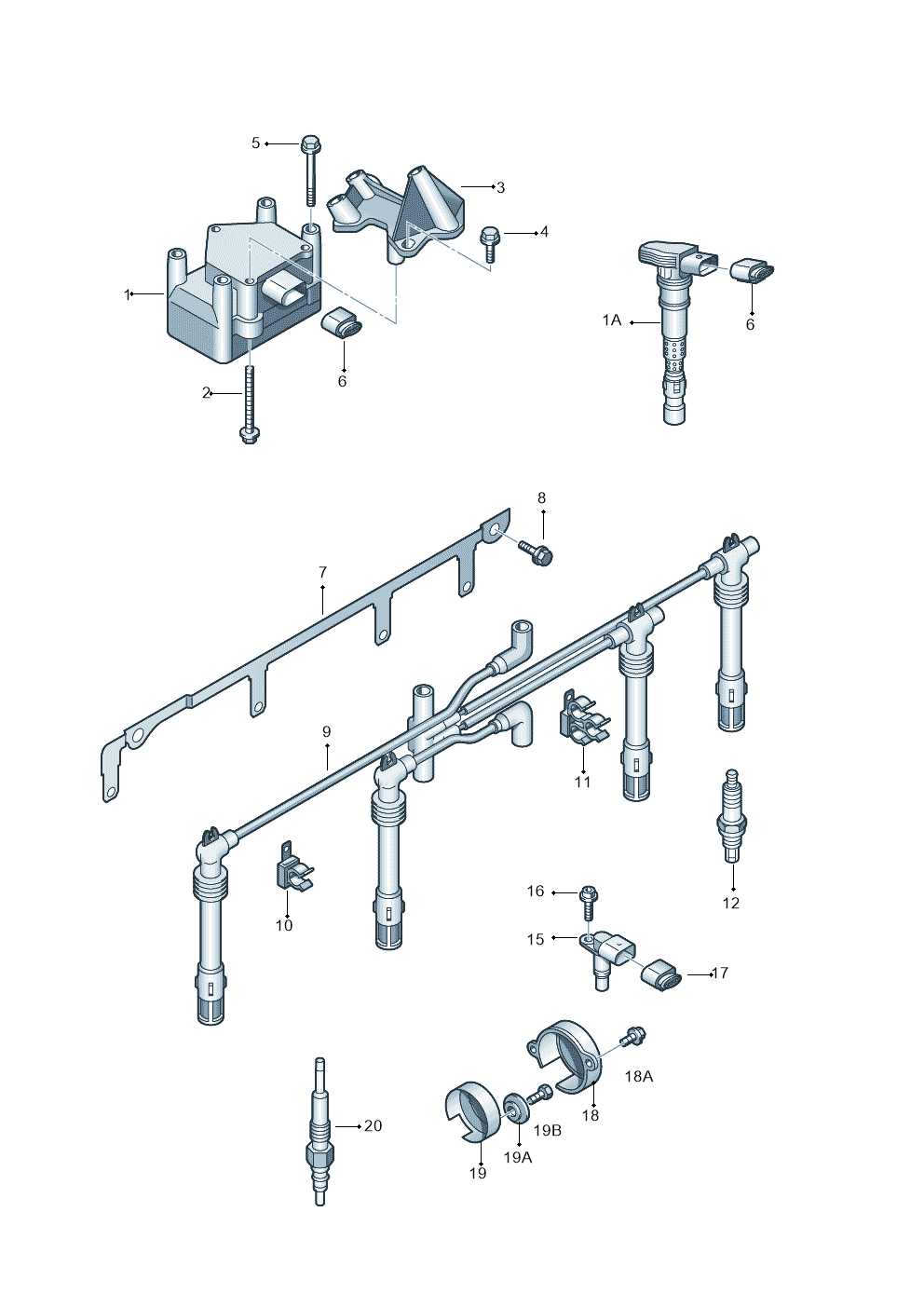

5 vehiclesIgnition Coil With Spark Plug Connector — locate Ignition Coil With Spark Plug Connector in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Transform 032905106B
- 1APart 036905715G
- 1AIgnit Coil 022905715B
- 1AIgnit Coil 07K905715F
- 2Bolt N10622101
- 3Bracket 06A903103
- 4Bolt N90945002
- 6Housing 1J0973724
- 6Housing 4B0973724
- 7Bracket 06A905131C
- 8Part N91073301
- 9Igni Leads 06A905409P
- 9Cable 06A905430AJ
- 9Cable 06A905430AP
- 9Cable 06A905430AQ
- 9Cable 06A905430AH
- 10Bracket 050905471
- 11Bracket 050905471A
- 12Spark Plug 101000041AC
- 12Spark Plug 101000068AA
- 12Spark Plug 101000033AA
- 12Spark Plug 06H905611
- 12Spark Plug 101905620
- 12Spark Plug 06H905601A
- 12Spark Plug 101905606A
- 12Spark Plug 101905610A
- 15Sender 030907601E
- 15Valve 03C906455A
- 15Sender 06B905163A
- 15Hallsensor 06A905161A
- 15Sender 06C905163B
- 15Sender 07L905163A
- 16Part N91096701
- 16Part N10248003
- 16Screw N10115404
- 16Bolt N10196103
- 16Bolt N10451405
- 16Bolt N91132201
- 17Part 1J0973702
- 17Part 3D0973703
- 17Housing 1J0973723
- 20Glow Plug N10579802
- 20Glow Plug N10579805
- 20Glow Plug N10591602
- 20Glow Plug N10591603
- 20Glow Plug N10591608
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3/S3/quattro | 2005-2007 | 1A | 4 | BAG,BLF,BLP | T72 |
| New Beetle | 2001-2005 | 6 | 4 | T1Q | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 6 | 4 | BCA,AZD,BAD, | |
| Jetta Wagon 02 | 2001-2002 | 6 | 4 | BCA,AZD,BAD, | |
| AUDI A2 | 2000-2005 | 8, 1 | 4 | T1Q |
Diagrams & fitment data powered by oemdiagrams.com
Ignition Coil With Spark Plug Connector is fitted on: Audi A3/S3/quattro 2005-2007; New Beetle 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; AUDI A2 2000-2005.
