036906031A Injection Valve
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 34 g
- Shipping size (L × W × H)
- 5 × 3.2 × 2 cm
- Country of origin
- Spain
- Customs (HS) code
- 84099100

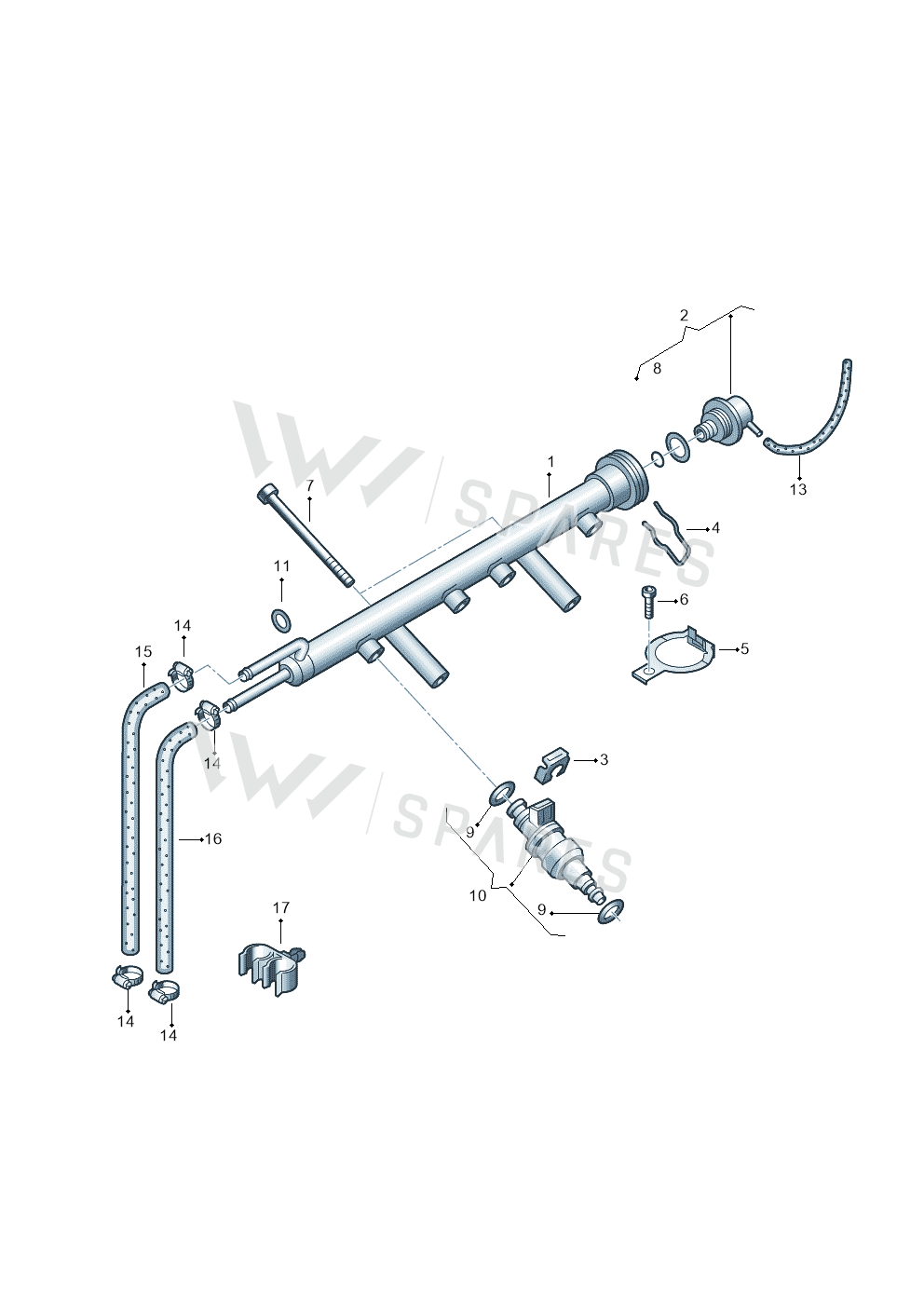

Parts diagram & fitment
11 vehiclesInjection Valve — locate Injection Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Rail 036133320B
- 2Regulator 037133035C
- 2Regulator 036133035A
- 3Clip 036133047
- 4Clip 037133047A
- 5Clip 036133048
- 6Screw N90427501
- 7Screw N10248801
- 7Screw N10227803
- 8Gask Set 037198031
- 9Seal Ring 035906149A
- 10Valve 030906031E
- 10Valve 032906031A
- 11Seal Ring 032133557
- 14Clamp N90686701
- 15Part 030133723P
- 15Fuel Line 036133321A
- 16Part 030133699P
- 16Fuel Line 032133699P
- 17Retainer N10269501
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta Wagon | 2001-2001 | 10 | 4 | ATN,AUS | D3H |
| CORDOBA/VARIO | 1999-2002 | 10 | 4 | AQQ,AUB | |
| IBIZA | 1999-2002 | 10 | 4 | AQQ,AUB | |
| POLO | 1999-2001 | 10 | 4 | AFK | G0B,G0C,G0E,G0J,M64 |
| LUPO/3L TDI | 1998-2003 | 10 | 4 | AFK | M64 |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 10 | 4 | AUS | |
| Golf | 1998-2000 | 10 | 4 | ATN,AUS | |
| AROSA | 1997-2003 | 10 | 4 | AFK | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 10 | 4 | AFH | |
| POLO | 1994-1999 | 10 | 4 | AFH |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TYPE 2 "ZA" | 1995-2003 | 10 | 5 |
Diagrams & fitment data powered by oemdiagrams.com
Injection Valve is fitted on: Jetta Wagon 2001-2001; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO 1999-2001; LUPO/3L TDI 1998-2003; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AROSA 1997-2003; IBIZA/CORDOBA/VARIO 1996-1999; POLO 1994-1999; TYPE 2 "ZA" 1995-2003.
