037109101B Camshaft
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

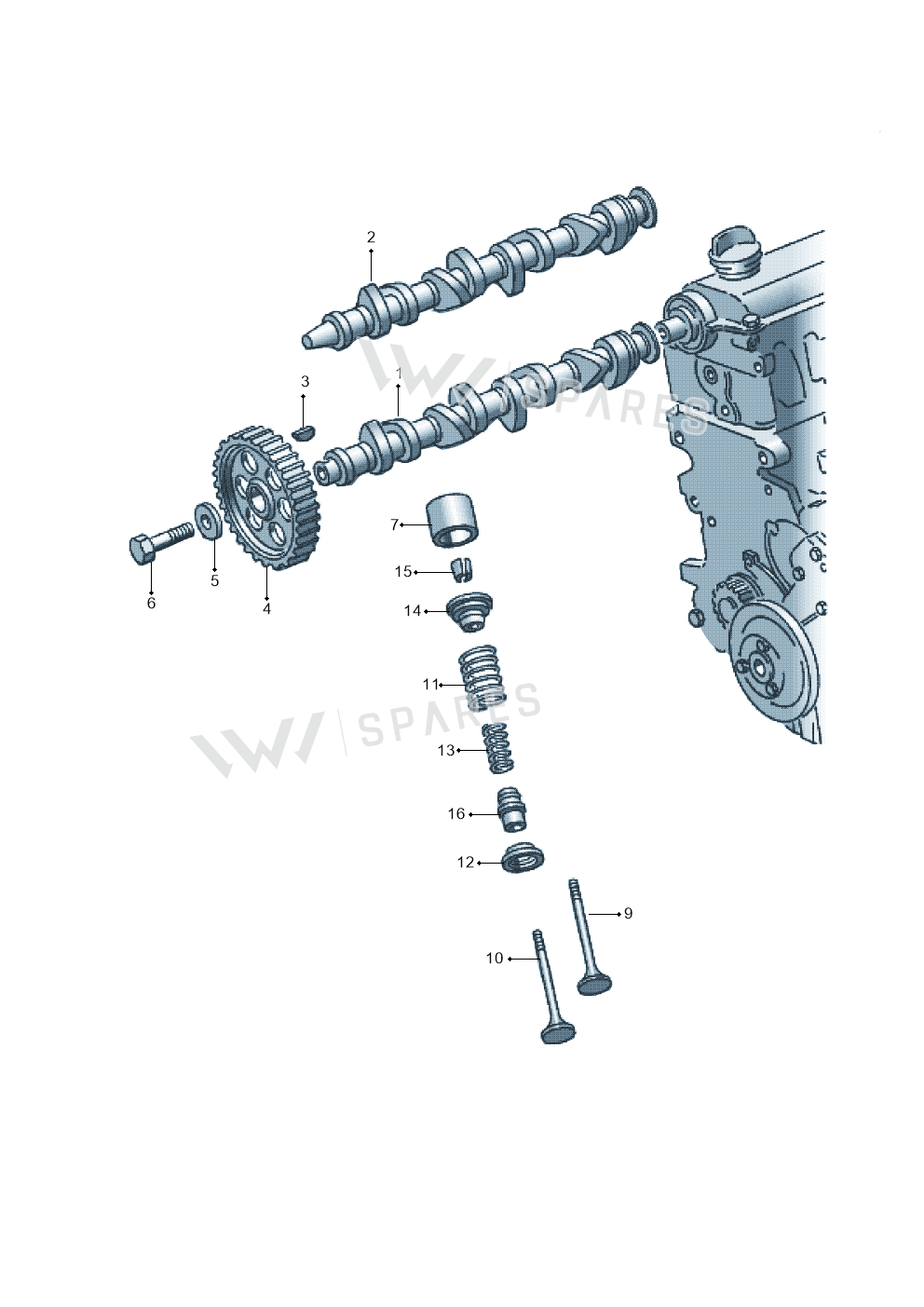

15 vehiclesCamshaft — locate Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Camshaft 026109101M
- 1Camshaft 028109101F
- 1Camshaft 048109101D
- 1Camshaft 050109101A
- 1Camshaft 026109101A
- 3Spring N0127082
- 4Pulley 069109111
- 4Pulley 049109111C
- 6Bolt N90502102
- 6Bolt N0101371
- 7Tappets 034109309AD
- 7Tappets 050109309J
- 9Valve 048109601E
- 9Valve 078109601B
- 9Valve 028109601D
- 10Valve 048109611B
- 10Valve 028109611G
- 10Valve 046109611F
- 11Spring 038109623D
- 11Spring 078109623C
- 11Spring 028109623B
- 12Springseat 056109629A
- 13Spring 078109633A
- 13Spring 028109633A
- 14Springseat 078109641C
- 14Springseat 049109641A
- 14Springseat 021109641C
- 15Cotter Pin 113109651A
- 15Cotter Pin 021109651
- 16Seal 026109675
- 16Seal 027109675
Vehicle fitment table15
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALHAMBRA | 1996-2000 | 1 | 1 | ADY | |
| SHARAN/SYNCRO | 1995-2000 | 1 | 1 | ADY | |
| Golf 96 | 1995-1996 | 1 | 1 | ADY | |
| Golf Var./Vento 96 | 1995-1996 | 1 | 1 | ADY | |
| Passat | 1994-1997 | 1 | 1 | ADY,AEP | |
| Golf Cabrio | 1994-1996 | 1 | 1 | ADY | |
| Passat Var.syncro | 1994-1996 | 1 | 1 | ADY | |
| Golf/Ecomatic 95 | 1994-1995 | 1 | 1 | ADY | |
| Golf Var./Vento 95 | 1994-1995 | 1 | 1 | ADY | |
| Corrado | 1989-1995 | 1 | 1 | ADY | |
| TIPO 2 (MEX) | 1971-2001 | 1 | 1 | ACB |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CITI GOLF "ZA"M.96> | 1996- | 1 | 1 | AFX | M8P |
| POLO CLASS./PL. "ZA" | 1996-2003 | 1 | 1 | AFX,AFV |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 1 | 1 | USD | ||
| 377 platform | 1 | 1 | 543 |
Diagrams & fitment data powered by oemdiagrams.com
Camshaft is fitted on: ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Corrado 1989-1995; TIPO 2 (MEX) 1971-2001; CITI GOLF "ZA"M.96> 1996-; POLO CLASS./PL. "ZA" 1996-2003; 6K0 platform; 377 platform.
