038103101AE Cylinder Block With Pistons
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

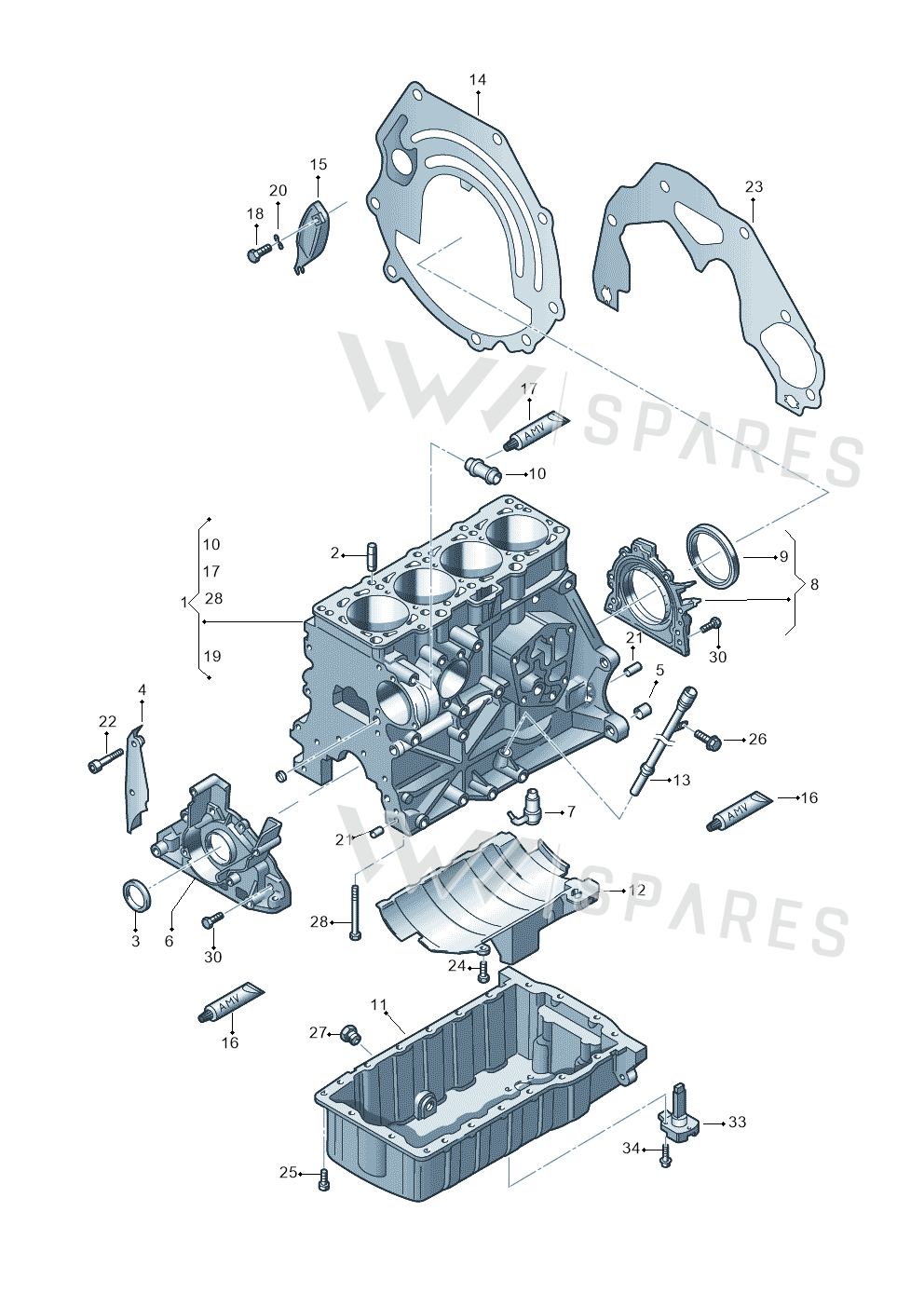

10 vehiclesCylinder Block With Pistons — locate Cylinder Block With Pistons in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Crankcase 038103011BF
- 2Sleeve 028103039A
- 3Seal 038103085E
- 5Sleeve 022103139
- 6Flange 038103153D
- 7Vent 038103157B
- 8Flange 06A103171A
- 11Oil Sump 038103603N
- 12Lock 06B103623P
- 13Tube 06D103634E
- 14Cover 06A103645
- 16Seal D176404A2
- 19Cover N01190710
- 21Part N10617101
- 23Cover 038103647A
- 23Cover 038103648G
- 25Bolt N90735603
- 25Bolt N90735604
- 26Bolt N10104501
- 26Bolt N91096701
- 27Bolt N90813202
- 28Bolt N90130001
- 30Bolt N90945002
- 34Screw N91065201
Vehicle fitment table10
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Beetle 06> | 2005- | 1 | 1 | D3W | |
| New Beetle Cabrio. 06> | 2005- | 1 | 1 | ||
| New Beetle Cabrio. | 2003-2005 | 1 | 1 | ||
| Jetta/Wagon | 2002-2006 | 1 | 1 | AXR | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 1 | 1 | AXR | MS7 |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 1 | 1 | AXR | T5X |
| Jetta Wagon 02 | 2001-2002 | 1 | 1 | AXR | T5X |
| OCTAVIA/COMBI/4X4 01> | 2000- | 1 | 1 | AXR | MS7 |
| AUDI A3/S3/QUATTRO | 2000-2003 | 1 | 1 | AXR | T5X |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 1 | 1 | AXR |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block With Pistons is fitted on: New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; New Beetle Cabrio. 2003-2005; Jetta/Wagon 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A3/S3/QUATTRO 2000-2003; Golf 'R32' n. "USA" 2004-2004.
