038109147A Toothed Belt Guard
- 038109147AThis pageNot stocked
Jan 2003 - 038109147DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

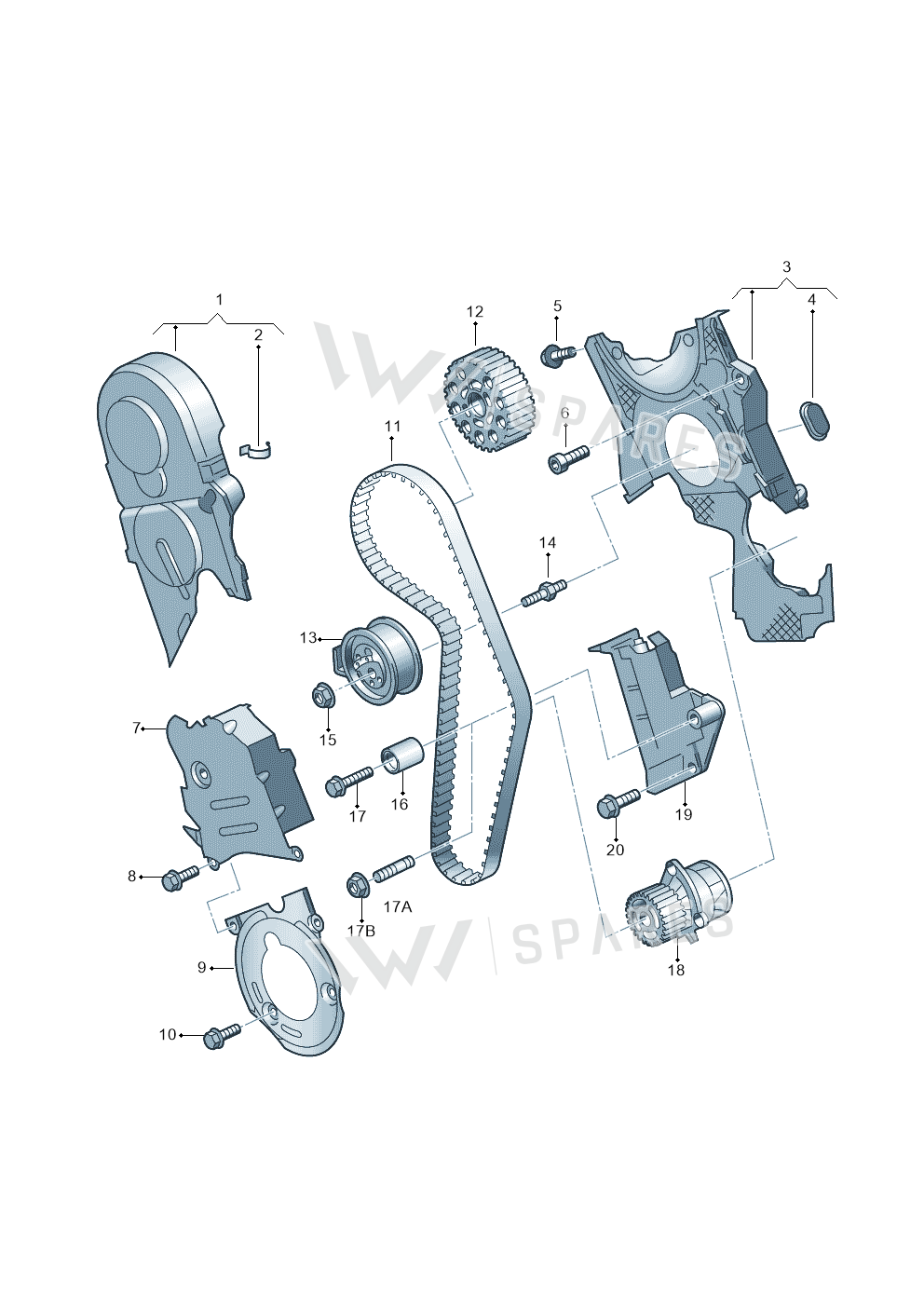

8 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Protection 045109107F
- 2Clip 026109150A
- 3Cover 045109145F
- 4Bungs 1E0971904
- 5Bolt N10082907
- 6Screw N0147791
- 7Protection 038109147D
- 9Protection 038109175
- 11Tooth Belt 038109119P
- 13Tens Roll 045109243C
- 14Bolt N90905502
- 15Collar Nut 038109454A
- 16Roller 045109244A
- 17Bolt N0195313
- 19B Tensionr 045109479B
- 20Bolt N90945002
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A4/S4/Av./qu. | 2001-2004 | 7 | 1 | T5X,T9J |
| Audi A6/Wagon/quattro | 2001-2004 | 7 | 1 | D3E |
| Passat/4Motion/W8 | 2000-2002 | 7 | 1 | T5X,T9J |
| Audi A4/Avant | 1999-2001 | 7 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 7 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 7 | 1 | |
| Audi A6/Avant | 1997-2001 | 7 | 1 | |
| Passat | 1997-2000 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Passat/4Motion/W8 2000-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000.
