038129969B Heat Shield
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

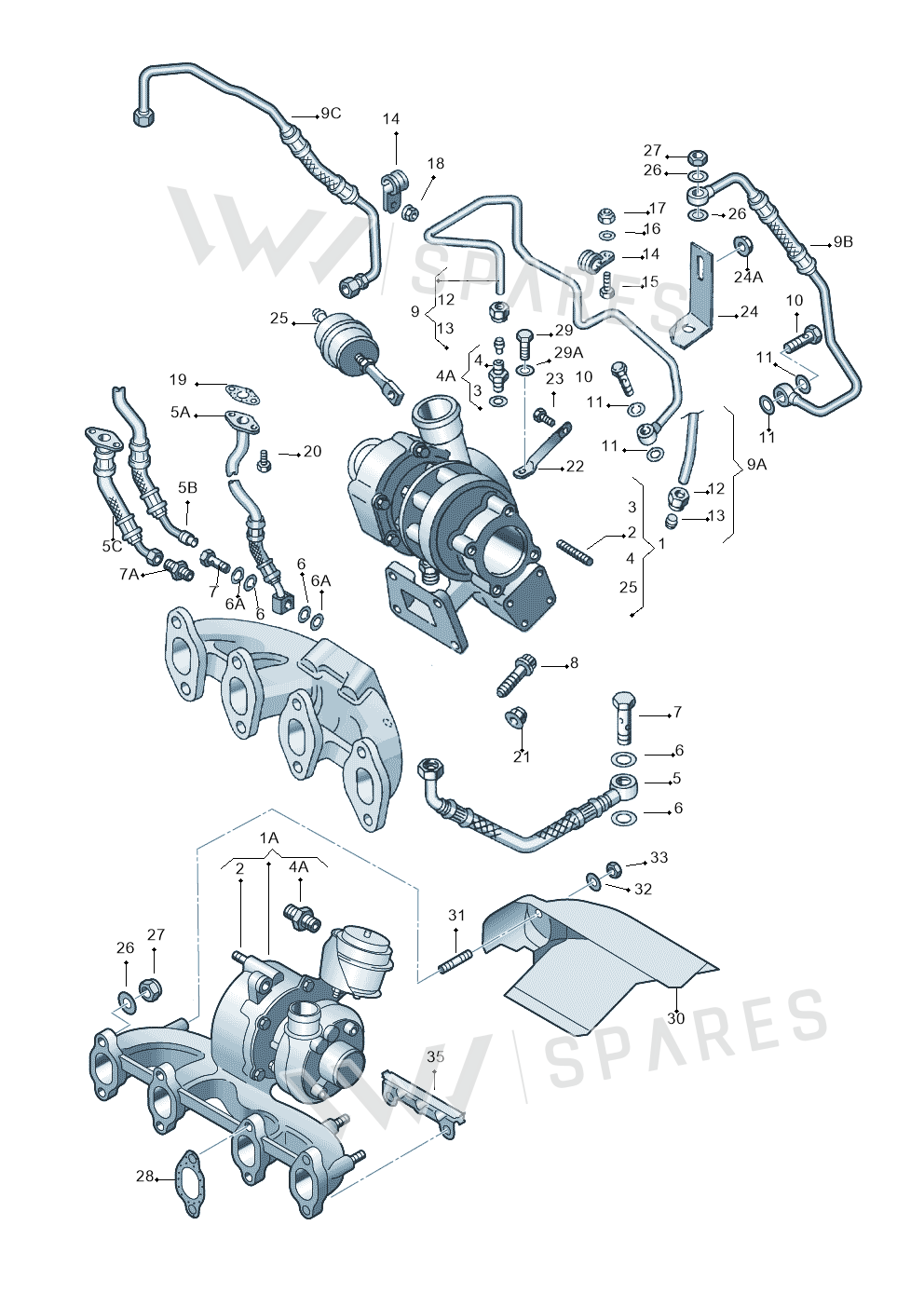

49 vehiclesHeat Shield — locate Heat Shield in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1ATurbo 03G253014R
- 1ATurbo 03G253016KX
- 2Bolt N0445145
- 3Bracket 037253047
- 4AUnion 028145786
- 5COil Line 028145736AJ
- 6Seal Ring N0138326
- 7AUnion N90837101
- 8Bolt 028145800
- 9Oil Pipe 038145771AH
- 10Screw N0210717
- 11Seal Ring N0138123
- 12Part N0210222
- 13Ring N0208292
- 14Clamp N0206093
- 15Bolt N10082912
- 17Collar Nut N90175205
- 19Seal 028145757
- 20Bolt N90592703
- 21Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 22Support 038145535E
- 23Bolt N0102478
- 26Washer N90095501
- 28Seal 028129589B
- 29Part N10197201
Vehicle fitment table49
Europe (38)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo | 2008-2009 | 30 | 1 | TA4 | |
| POLO | 2005- | 30 | 1 | ||
| IBIZA 06> | 2005- | 3 | 1 | AMF | |
| CORDOBA 06> | 2005- | 3 | 1 | AMF | |
| FABIA/COMBI 05> | 2004- | 3 | 1 | ||
| LUPO/3L TDI | 2003-2005 | 8 | 1 | AMF | T0U |
| AROSA | 2003-2004 | 8 | 1 | ||
| Jetta/Wagon | 2002-2006 | 16 | 1 | AHF,ASV | |
| CORDOBA/SE241 | 2002-2005 | 3 | 1 | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 16 | 1 | AHF,ASV | |
| POLO | 2001-2005 | 3, 30 | 1 | ||
| New Beetle | 2001-2005 | 16, 30 | 1 | ALH | MD1 |
| IBIZA | 2001-2005 | 3, 30 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 16 | 1 | AHF,ASV,AJM, | |
| Jetta Wagon 02 | 2001-2002 | 16 | 1 | AHF,ASV,AJM, | |
| Jetta Wagon | 2001-2001 | 16 | 1 | AHF,AJM,AUY, | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 16 | 1 | ASV,AHF,ALH | |
| AUDI A2 | 2000-2005 | 30 | 1 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 16 | 1 | AHF,ASV | |
| FABIA/COMBI | 1999-2004 | 3 | 1 | ||
| CORDOBA/VARIO | 1999-2002 | 16, 13 | 1 | ALH,ASV | |
| IBIZA | 1999-2002 | 16, 13 | 1 | ALH,ASV | |
| POLO CLASSIC/VARIANT | 1999-2001 | 16, 13 | 1 | ALH,ASV | |
| POLO | 1999-2001 | 8 | 1 | ||
| Audi A4/Avant | 1999-2001 | 6 | 1 | AJM | |
| Audi A4/Av.qu. | 1999-2001 | 6 | 1 | ||
| LUPO/3L TDI | 1998-2003 | 8 | 1 | AMF | M6F |
| New Beetle | 1998-2001 | 16, 30 | 1 | ALH | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 16 | 1 | ||
| Golf | 1998-2000 | 16 | 1 | AHF,AJM,AUY, | |
| Passat syncro/4Motion | 1998-2000 | 6, 7 | 1 | ATJ | |
| AROSA | 1997-2003 | 8 | 1 | ||
| Audi A6/Avant | 1997-2001 | 6 | 1 | AJM | |
| Passat | 1997-2000 | 6, 13 | 1 | AJM,ATJ | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 16 | 1 | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 16 | 1 | AHF,ASV | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 16, 13 | 1 | ||
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 26 | 1 |
Other markets (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 26, 23 | 1 | 7KY | |
| POLO CLASSIC "ZA"05> | 2005- | 30 | 1 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 16 | 1 | AHF,ASV | |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 3, 30 | 1 | ||
| Golf "BR.","USA"03>07 | 2002-2007 | 16, 30 | 1 | "PR | |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 3, 30 | 1 | M6F | |
| Jetta USA | 2001-2005 | 16, 30 | 1 | MD1 | |
| Golf BR/US | 2001-2002 | 16, 30 | 1 | ||
| AUDI A3-BRASIL. | 2000-2005 | 16 | 1 | ||
| Golf BR/US | 1999-2001 | 16, 30 | 1 | ||
| Jetta "USA"99>01 | 1998-2001 | 16, 30 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Shield is fitted on: Polo 2008-2009; POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; LUPO/3L TDI 2003-2005; AROSA 2003-2004; Jetta/Wagon 2002-2006; CORDOBA/SE241 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; New Beetle 2001-2005; IBIZA 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A2 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; FABIA/COMBI 1999-2004; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; LUPO/3L TDI 1998-2003; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Passat syncro/4Motion 1998-2000; AROSA 1997-2003; Audi A6/Avant 1997-2001; Passat 1997-2000; AUDI A3/S3/QUATTRO 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; CADDY-KOMBI/KASTEN 1995-2003; DIES.-IND.-MOT.1,9>2,0 1990-2007; DIES.-IND.-MOT.1,9>2,0 08> 2007-; POLO CLASSIC "ZA"05> 2005-; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "ZA"03>05 2003-2005; Golf "BR.","USA"03>07 2002-2007; POLO LIM.(SEDAN) "BR" 2002-2006; Jetta USA 2001-2005; Golf BR/US 2001-2002; AUDI A3-BRASIL. 2000-2005; Golf BR/US 1999-2001; Jetta "USA"99>01 1998-2001.
