038131055F Vacuum Hose
- 038131051AQNot stocked
- 038131055FThis pageNot stocked
Jul 2006 - 038131055BBDiscontinued
May 2021
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

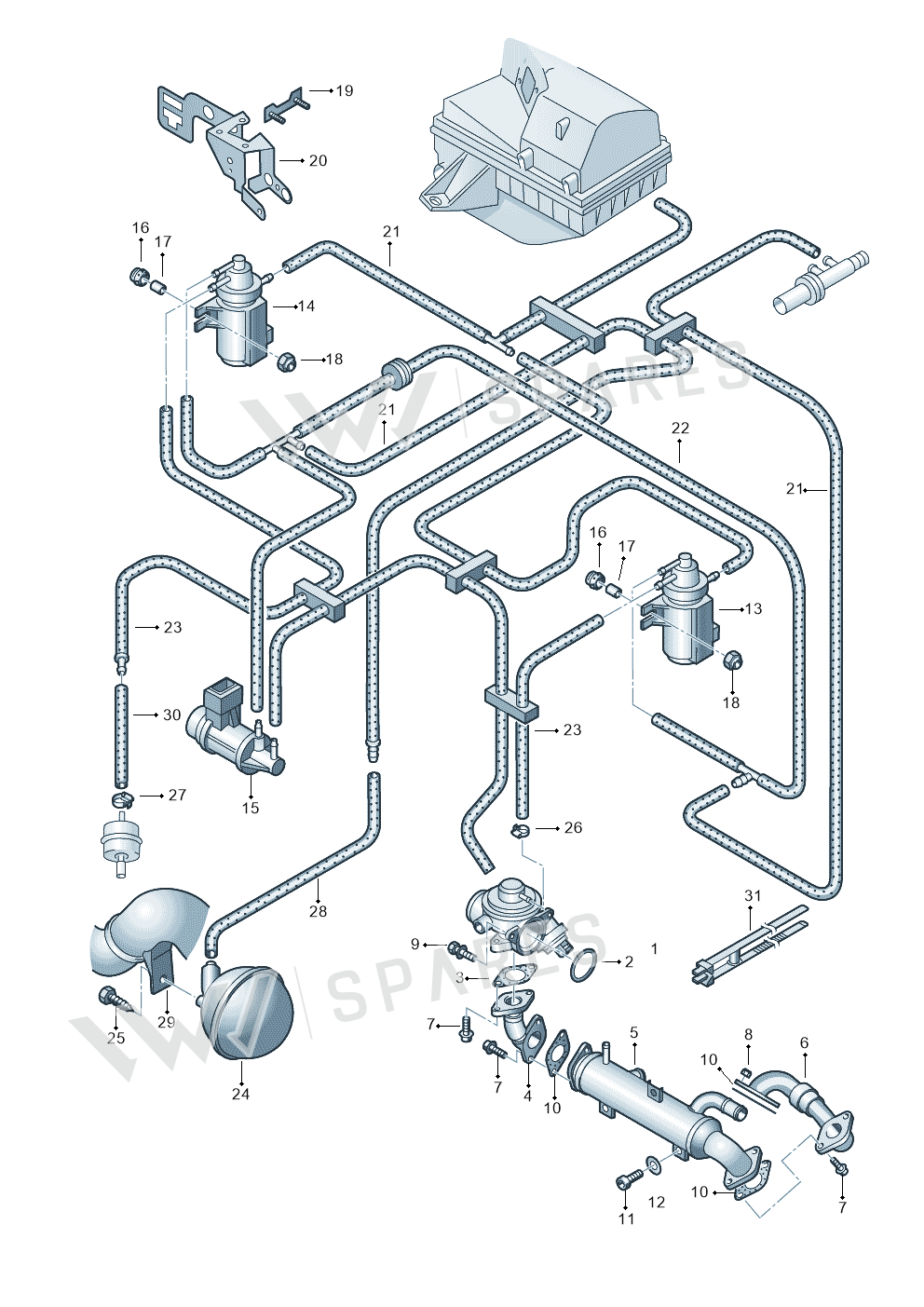

8 vehiclesVacuum Hose — locate Vacuum Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Valve 038131501T
- 2Seal Ring N90927301
- 3Seal 069131547D
- 4Pipe 038131521AD
- 4Pipe 038131521AT
- 5Cooler 038131513G
- 6Pipe 038131521AE
- 7Screw N90415403
- 8Collar Nut N90200201
- 9Screw N10227803
- 10Seal 038131547A
- 11Screw N01470210
- 12Washer N01152423
- 13Converter 1J0906627
- 14Converter 1J0906627B
- 15Valve 1J0906283C
- 16Grommet 046131887
- 17Spacer 052129734
- 18Collar Nut N0150825
- 19Plate 046130405
- 21Hose 038131055G
- 23Hose 038131055E
- 24Damper 038129807
- 25Screw N10614401
- 26Clip N10310001
- 27Clamp N10279301
- 28Hose 038131605AL
- 31Binder 4A0820199
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 2001-2006 | 22, 31 | 1 | ASZ |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 22, 31 | 1 | |
| Jetta Wagon 02 | 2001-2002 | 22, 31 | 1 | |
| Jetta Wagon | 2001-2001 | 22 | 1 | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 22, 31 | 1 | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 22 | 1 | |
| Golf | 1998-2000 | 22 | 1 | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Vacuum Hose is fitted on: TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A3/S3/QUATTRO 2000-2003; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000.
