03C103011BP Crankcase Housing
- 03C103011BPThis pageNot stocked
Sep 2018 - 03C103011CDCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

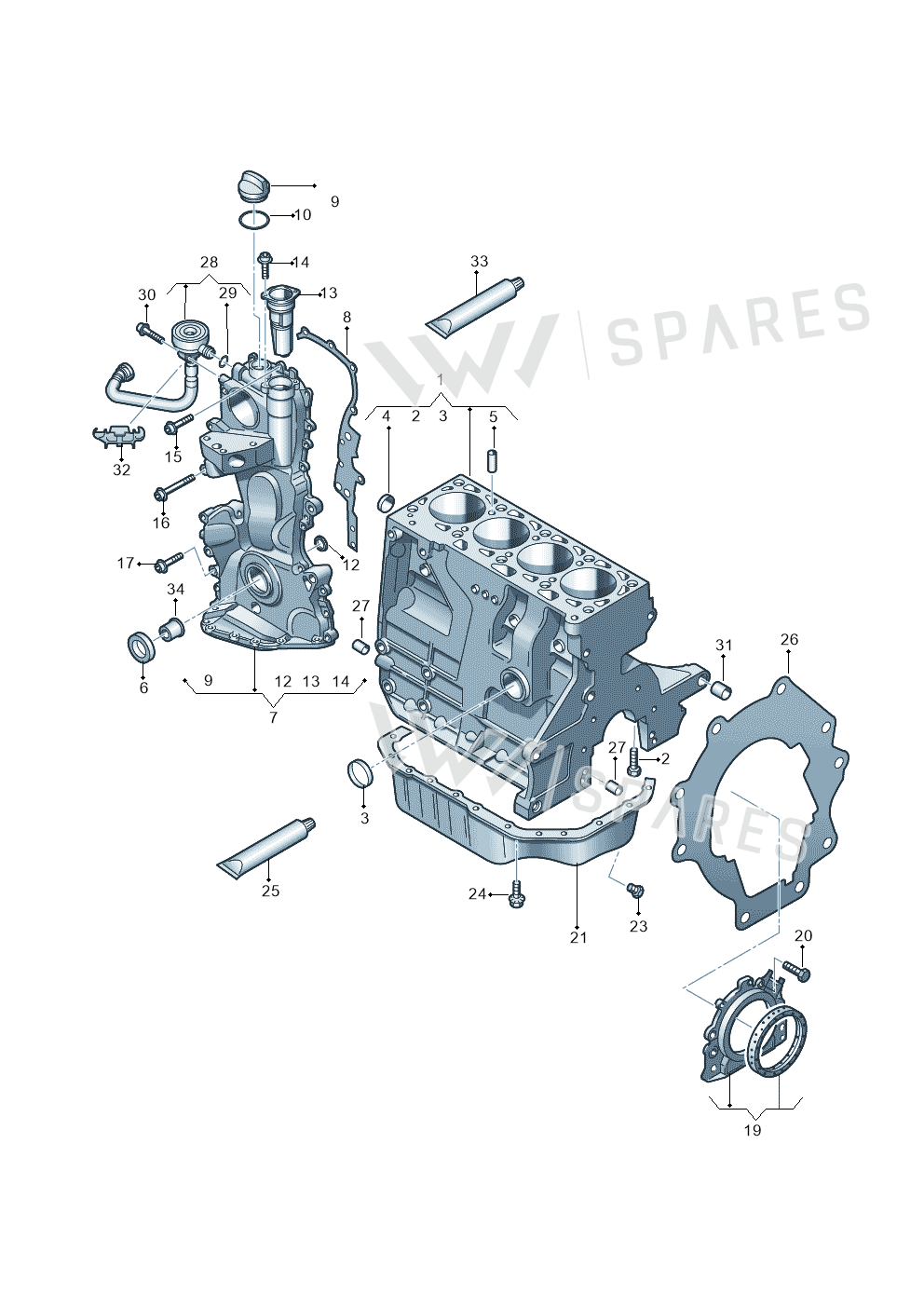

10 vehiclesCrankcase Housing — locate Crankcase Housing in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Cylinder Block 03C103101AA
- 2Bolt N91107801
- 3Cover 036103113A
- 3Cover 03C103113
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210BT
- 8Seal 03C109287G
- 9Cover 04E103485A
- 10Seal 06A103483D
- 12Seal 03C109293
- 13Separator 03C103464D
- 14Bolt N91096702
- 14Bolt N10653201
- 15Screw N90500605
- 15Screw N91096901
- 16Bolt N10655802
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N90842402
- 20Screw N91099101
- 21Oil Sump 03C103601BJ
- 21Oil Sump 03C103601BP
- 23Bolt N90813202
- 24Screw N10248003
- 25Seal D176600A1
- 26Spacer Pl 03C103551L
- 26Spacer Pl 03C103551A
- 27Part N0432072
- 28Valve 03C103201K
- 29Seal Ring N90613201
- 30Bolt N91089601
- 31Sleeve 022103139B
- 32Bracket 03C103733A
- 33Seal D176501A1
Vehicle fitment table10
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo | 2012-2014 | 1 | ||
| jetta | 2010-2014 | 1 | 1 | |
| Polo | 2009-2014 | 1 | ||
| Fabia Ambiente | 2009-2013 | 1 | 1 | D3H |
| Polo | 2009-2012 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo | 2014-2022 | 1 | ||
| Polo Vivo | 2014-2017 | 1 | ||
| Polo 1.6 | 2013-2022 | 1 | ||
| Rapid Ambition | 2011-2021 | 1 | 1 | D3H |
| Polo Vivo | 2010-2014 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Crankcase Housing is fitted on: Polo 2012-2014; jetta 2010-2014; Polo 2009-2014; Fabia Ambiente 2009-2013; Polo 2009-2012; Polo 2014-2022; Polo Vivo 2014-2017; Polo 1.6 2013-2022; Rapid Ambition 2011-2021; Polo Vivo 2010-2014.
