03C103101M Cylinder Block
- 03C103101KNot stocked
Mar 2007 - 03C103101MThis pageNot stocked
Feb 2011 - 03C103101NNot stocked
Sep 2010
- Current number03C103101TCurrent number
- Current numberN90853902Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

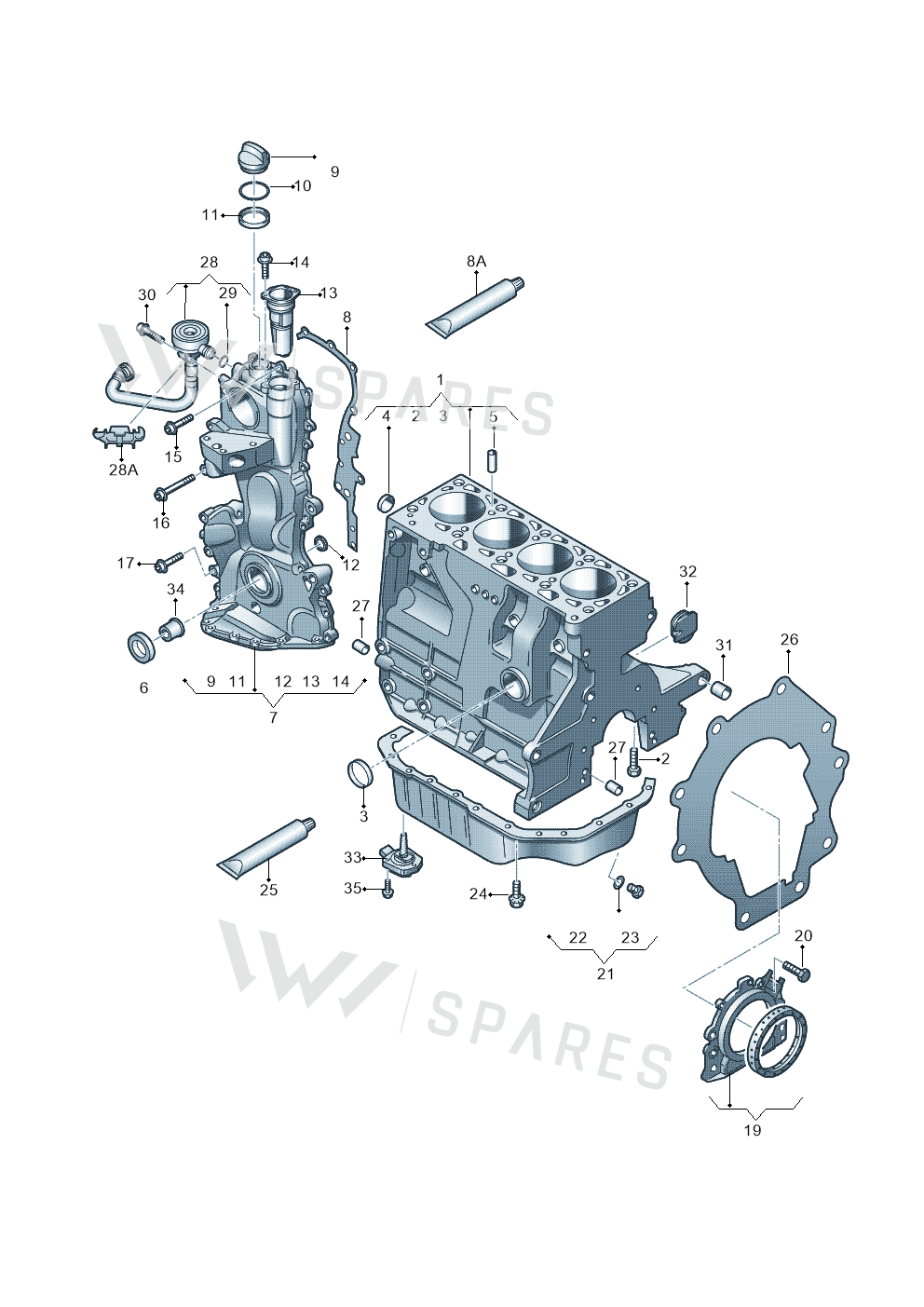

7 vehiclesCylinder Block — locate Cylinder Block in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Cylinder Block 03C103101N
- 1Part 03C103101T
- 3Cover 036103113A
- 4Cover 03C103113
- 4Cover N0119096
- 4Cover N0119098
- 4Cover N0119093
- 5Part N90547401
- 6Seal 038103085E
- 7Case 03C109210BH
- 8Seal 03C109287G
- 9Cover 06B103485C
- 10Seal 06A103483D
- 12Seal 03C109293
- 13Separator 03C103464A
- 14Bolt N90440706
- 14Bolt N90440701
- 15Screw N90500605
- 16Bolt N90712403
- 17Screw N90338204
- 19Flange 030103171K
- 19Part 036103171B
- 20Bolt N90842402
- 21Part 03C103603S
- 23Bolt N90813202
- 25Part D176600A1
- 26Spacer Pl 03C103551
- 26Spacer Pl 036103551R
- 27Part N0432072
- 28Valve 03C103201K
- 28ABracket 03C103733A
- 29Seal Ring N90613201
- 30Screw N10423903
- 30Screw N10423901
- 31Sleeve 022103139B
- 32Bungs 030103037E
- 32Bungs 030103037D
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Roomster | 2010-2015 | 1 | 1 | D | |
| Fabia Scout | 2010-2014 | 1 | 1 | D | |
| Ibiza Reference | 2008-2011 | 1 | 1 | ||
| Polo | 2008-2009 | 1 | 1 | ||
| ROOMSTER 06> | 2006- | 1 | 1 | D3H | |
| FABIA/COMBI NF 07> | 2006- | 1 | 1 | BTS | |
| POLO | 2005- | 1 | 1 | BTS |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block is fitted on: Roomster 2010-2015; Fabia Scout 2010-2014; Ibiza Reference 2008-2011; Polo 2008-2009; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; POLO 2005-.
