Camshaft exploded parts diagram — Ibiza Reference · 2008-2011, position 2 — Ibiza Reference · 2008-2011 · position 2Full diagram ↓

03C109101CA

03C109101CA Camshaft

Name: 03C109101CA Camshaft
Brand: SEAT
SKU: 03C109101CA
Price: 338.51 GBP
Availability: Discontinued

£338.51

£279.76 excl. VAT

Supersession roadoldest to newest

03C109101BG
Not stocked Aug 2009
03C109101CA
Not stocked Mar 2009
You are here
03C109101DF
Current number

03C109101BGNot stocked
Aug 2009
03C109101CAThis pageNot stocked
Mar 2009
03C109101DFCurrent number

Current part number03C109101DFWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

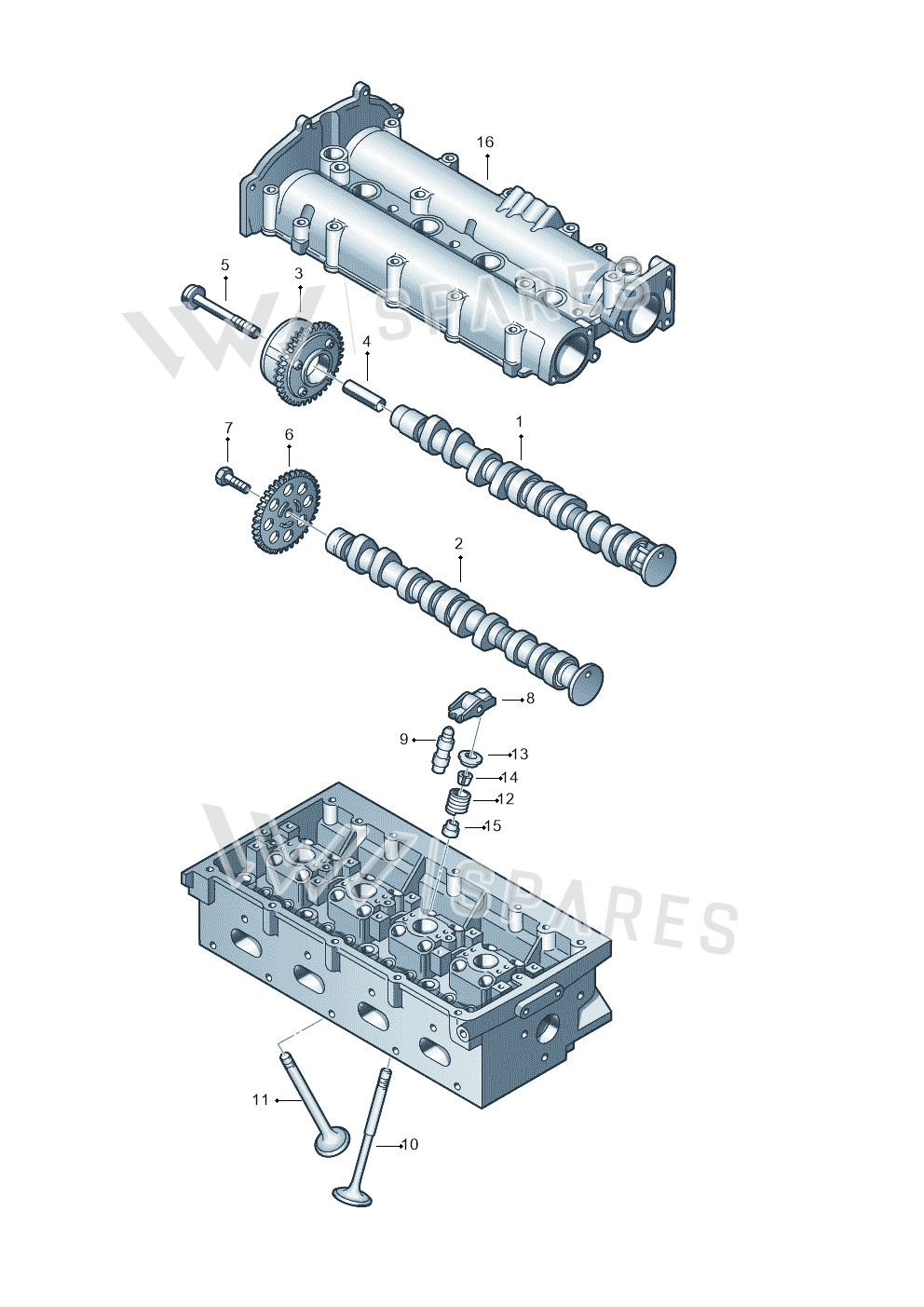

Camshaft — locate Camshaft in the official exploded view and explore the surrounding assembly.

Parts in this assembly19

Vehicle fitment table3

Europe (3)

Vehicle	Years	Pos.	Qty	Remark	PR
Ibiza Reference	2008-2011	2	1	BTS	TT0
ROOMSTER 06>	2006-	2	1		TT0
POLO	2005-	2	1		TT0
