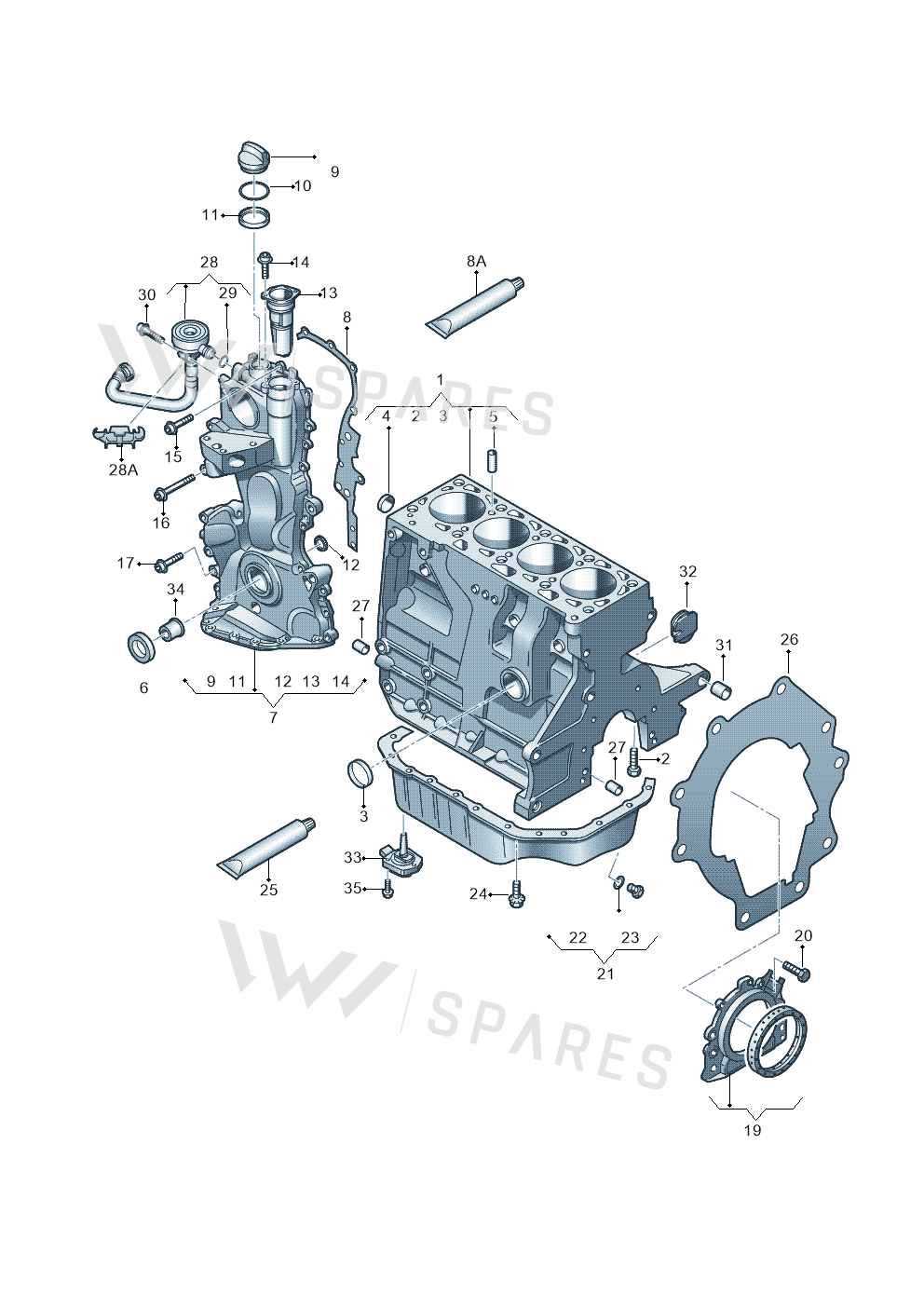

Timing Case exploded parts diagram — IBIZA 06> · 2005-, position 7 — IBIZA 06> · 2005- · position 7Full diagram ↓

03C109210R

03C109210R Timing Case

Name: 03C109210R Timing Case
Brand: SEAT
SKU: 03C109210R
Price: 444.9 GBP
Availability: Discontinued

£444.90

£367.69 excl. VAT

Supersession road4 numbers since 2005

03C109210D
Not stocked Jun 2005
03C109210F
Not stocked Apr 2007
03C109210R
Not stocked Nov 2008
You are here
03C109210BH
Discontinued Apr 2025

03C109210DNot stocked
Jun 2005
03C109210FNot stocked
Apr 2007
03C109210RThis pageNot stocked
Nov 2008
03C109210BHDiscontinued
Apr 2025

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Timing Case — locate Timing Case in the official exploded view and explore the surrounding assembly.

Parts in this assembly29

Vehicle fitment table3

Europe (3)

Vehicle	Years	Pos.	Qty	PR
IBIZA 06>	2005-	7	1
CORDOBA 06>	2005-	7	1	D3H
POLO	2001-2005	7	1	D3M
