03C115121M Chain Sprocket
- 03C115121MThis pageNot stocked
Jun 2012 - 03C115121JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

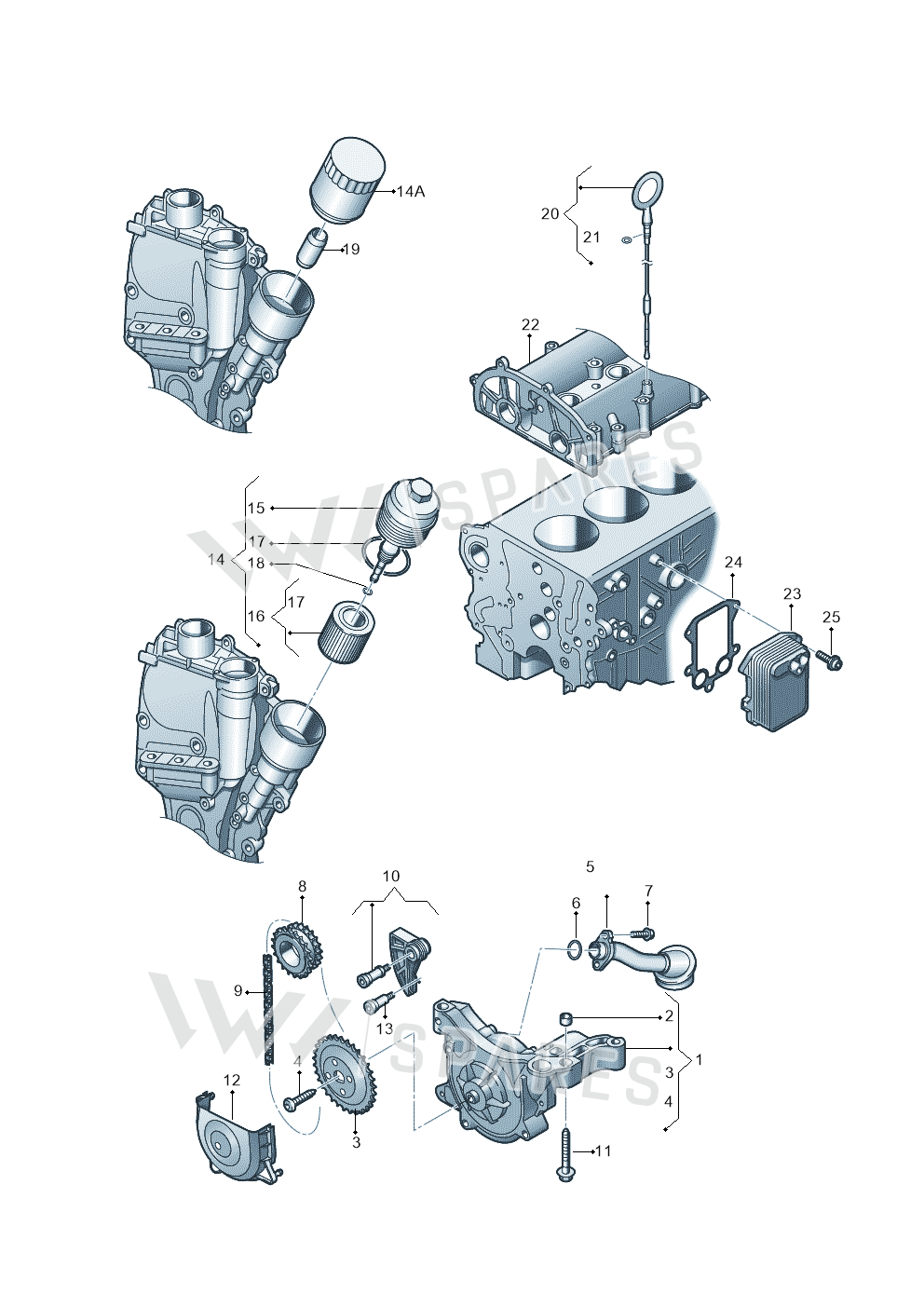

29 vehiclesChain Sprocket — locate Chain Sprocket in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Oil Pump 03C115105AG
- 1Oil Pump 03C115105N
- 2Sleeve 03C115143
- 3Chn Sprckt 03C115121N
- 4Bolt N90365901
- 4Bolt N90365907
- 5Pipe 03C115251M
- 6Seal Ring N0282222
- 7Bolt N10124408
- 9Chain 03C115225
- 9Chain 03C115230C
- 10Tensioner 03C109507AF
- 10Tensioner 03C109507J
- 11Bolt N90704007
- 12Cover 03C103669E
- 13Screw 03C103714B
- 14Oil Filter 03C115403F
- 14AOil Filter 03C115561B
- 14AOil Filter 03C115561J
- 15Cover 03C115433B
- 16Filterelem 03C115562
- 17Seal Ring 03C115441
- 18Seal Ring 03C115441A
- 19Union 03C115721D
- 20Oil Dipsti 03C115611T
- 20Oil Dipsti 03C115611AA
- 20Oil Dipsti 03C115611AD
- 21Seal Ring 03C115331A
- 21Seal Ring 03C115331
- 23Oil Cooler 03C117021J
- 24Seal 03C115111D
- 25Bolt N10451405
Vehicle fitment table29
Europe (22)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| superb | 2013-2015 | 3 | |||
| Rapid | 2012-2022 | 3 | |||
| Ibiza Reference | 2011-2012 | 3 | 1 | CAVE,CAVF | TF0 |
| Audi A1 Sportback | 2010-2015 | 3 | 1 | TU0 | |
| Fabia Scout | 2010-2014 | 3 | |||
| Leon Stylance | 2010-2012 | 3 | 1 | D33 | |
| Superb Ambition | 2009-2015 | 3 | 1 | ||
| Polo | 2009-2012 | 3 | 1 | D32 | |
| Golf Plus 1.6 | 2009-2011 | 3 | 1 | D4X | |
| superb comfort | 2008-2013 | 3 | |||
| octavia ambiente | 2008-2013 | 3 | |||
| Audi A3 Sportback | 2008-2013 | 3 | 1 | D33 | |
| Passat CC | 2008-2012 | 3 | 1 | D4L | |
| golf 2.0 | 2008-2011 | 3 | 1 | D4X | |
| jetta | 2008-2011 | 3 | 1 | ||
| Ibiza Reference | 2008-2011 | 3 | 1 | CAVE,CAVF | TF0 |
| EOS 2.0 | 2008-2010 | 3 | 1 | D4L | |
| GOLF VARIANT 07> | 2007- | 3 | 1 | ||
| TIGUAN 08> | 2007- | 3 | 1 | D4X | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 3 | 1 | D33 | |
| JETTA 06> | 2006- | 3 | 1 | G0K | |
| JETTA 06> | 2005- | 3 | 1 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Lavida | 2012-2021 | 3 | 1 | ||
| New Passat | 2011-2019 | 3 | 1 | ||
| New Polo (SVW) | 2010-2019 | 3 | 1 | ||
| Tiguan | 2009-2019 | 3 | 1 | ||
| Lavida | 2008-2013 | 3 | 1 | ||
| OCTAVIA "CN."07> | 2007- | 3 | 1 | CFBA | |
| TOURAN (SVW) "CN"04> | 2004- | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Chain Sprocket is fitted on: superb 2013-2015; Rapid 2012-2022; Ibiza Reference 2011-2012; Audi A1 Sportback 2010-2015; Fabia Scout 2010-2014; Leon Stylance 2010-2012; Superb Ambition 2009-2015; Polo 2009-2012; Golf Plus 1.6 2009-2011; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; jetta 2008-2011; Ibiza Reference 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; TIGUAN 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; JETTA 06> 2006-; JETTA 06> 2005-; Lavida 2012-2021; New Passat 2011-2019; New Polo (SVW) 2010-2019; Tiguan 2009-2019; Lavida 2008-2013; OCTAVIA "CN."07> 2007-; TOURAN (SVW) "CN"04> 2004-.
