03C121004D Coolant Pump With Glued In Sealing Ring
- 03C121004CNot stocked
Dec 2006 - 03C121004DThis pageNot stocked
Mar 2007 - 03C121004ENot stocked
Apr 2010 - 03C121004LNot stocked
Feb 2010 - 03C121004JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

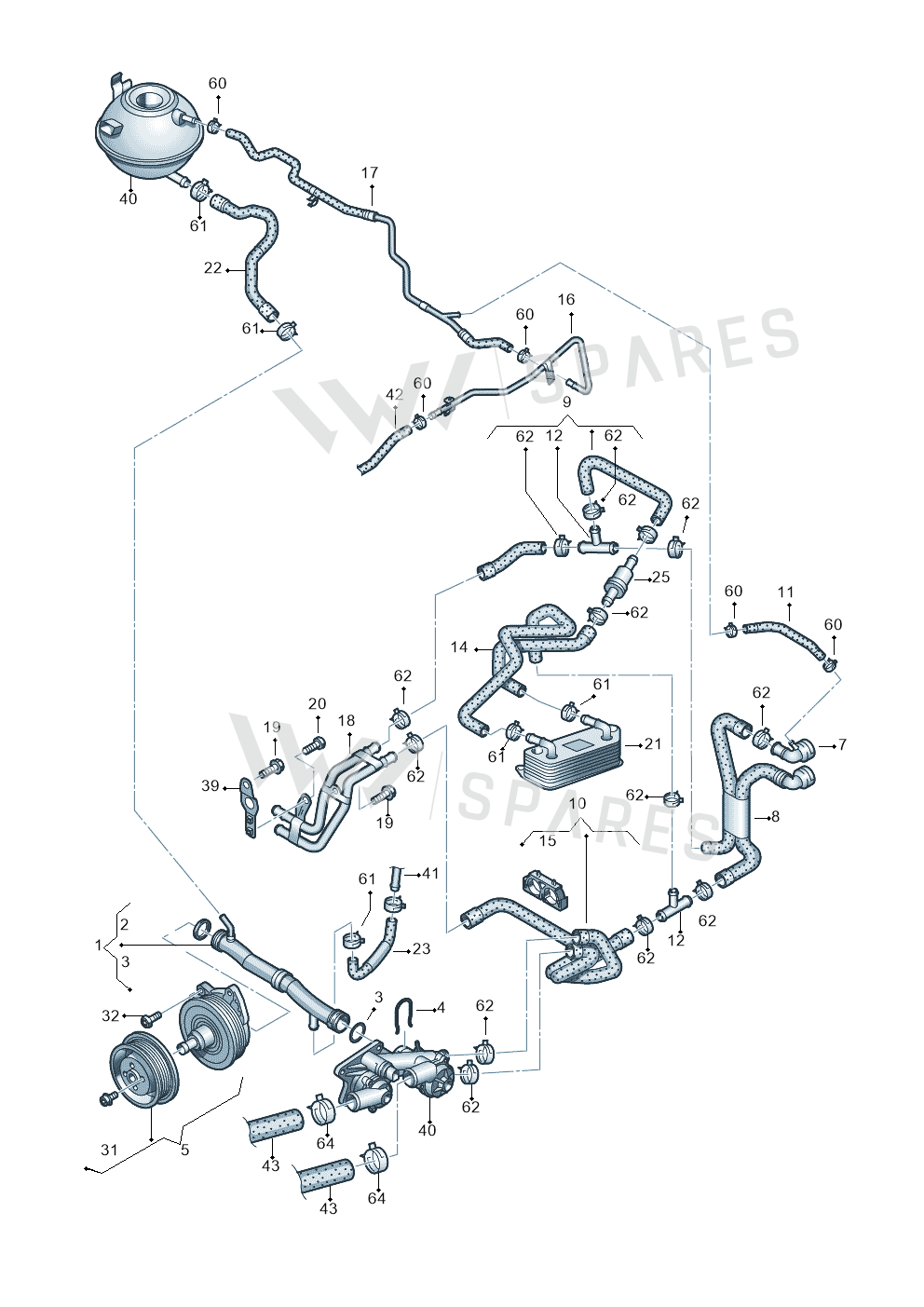

3 vehiclesCoolant Pump With Glued In Sealing Ring — locate Coolant Pump With Glued In Sealing Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Water Pipe 03C121065F
- 2Seal Ring 03C121665
- 3Seal Ring 03C121666
- 4Spring 03C121142
- 5Water Pump 03C121004JX
- 5Water Pump 03C121004J
- 7Coupl Piece 1K0122291R
- 8Hose 1T0121157AA
- 8Hose 1T0121157P
- 8Part 1T0121157R
- 8Part 1T0121157T
- 8Part 1T0122157CK
- 8Part 1T0121157AD
- 9Hose 1K0121157EA
- 9Hose 1K0121086AM
- 9Hose 1K0121096BJ
- 10Hose 1K0121157DL
- 10Hose 1K0121157ED
- 10Hose 1K0121157EF
- 10Hose 1K0121157EB
- 11Hose 1T0121447N
- 12Tpiece N90760601
- 14Hose 1K0121058CA
- 14Hose 1K0121086AL
- 15Bracket 3C0820495
- 16Water Pipe 1K0121070BC
- 17Water Pipe 1K0122447FB
- 18Water Pipe 03C121151D
- 18Water Pipe 03C121151B
- 19Bolt N10216803
- 20Part N10335205
- 22Hose 1K0122109BC
- 23Hose 1K0121096AT
- 25Coolant Rg 1K0121113A
- 31Screw N91052201
- 32Screw N91096901
- 39Retaining 03C121079B
- 60Clamp N90686701
- 61Clamp N90686901
- 62Clamp N90687001
- 64Clamp N90687201
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TOURAN | 2006- | 5 | 1 | TF0 |
| GOLF PLUS 05> | 2005- | 5 | 1 | TF0 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 5 | 1 | TF0 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pump With Glued In Sealing Ring is fitted on: TOURAN 2006-; GOLF PLUS 05> 2005-; Golf/Rabbit 2005-2007.
