03C127026C Fuel Pump
- 03C127026CThis pageNot stocked
Apr 2009 - 03C127026DNot stocked
Feb 2011 - 03C127026ENot stocked
Oct 2011 - 03C127026JNot stocked
Dec 2011 - 03C127026MNot stocked
Sep 2013 - 03C127026PNot stocked
Aug 2015 - 03C127026RCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

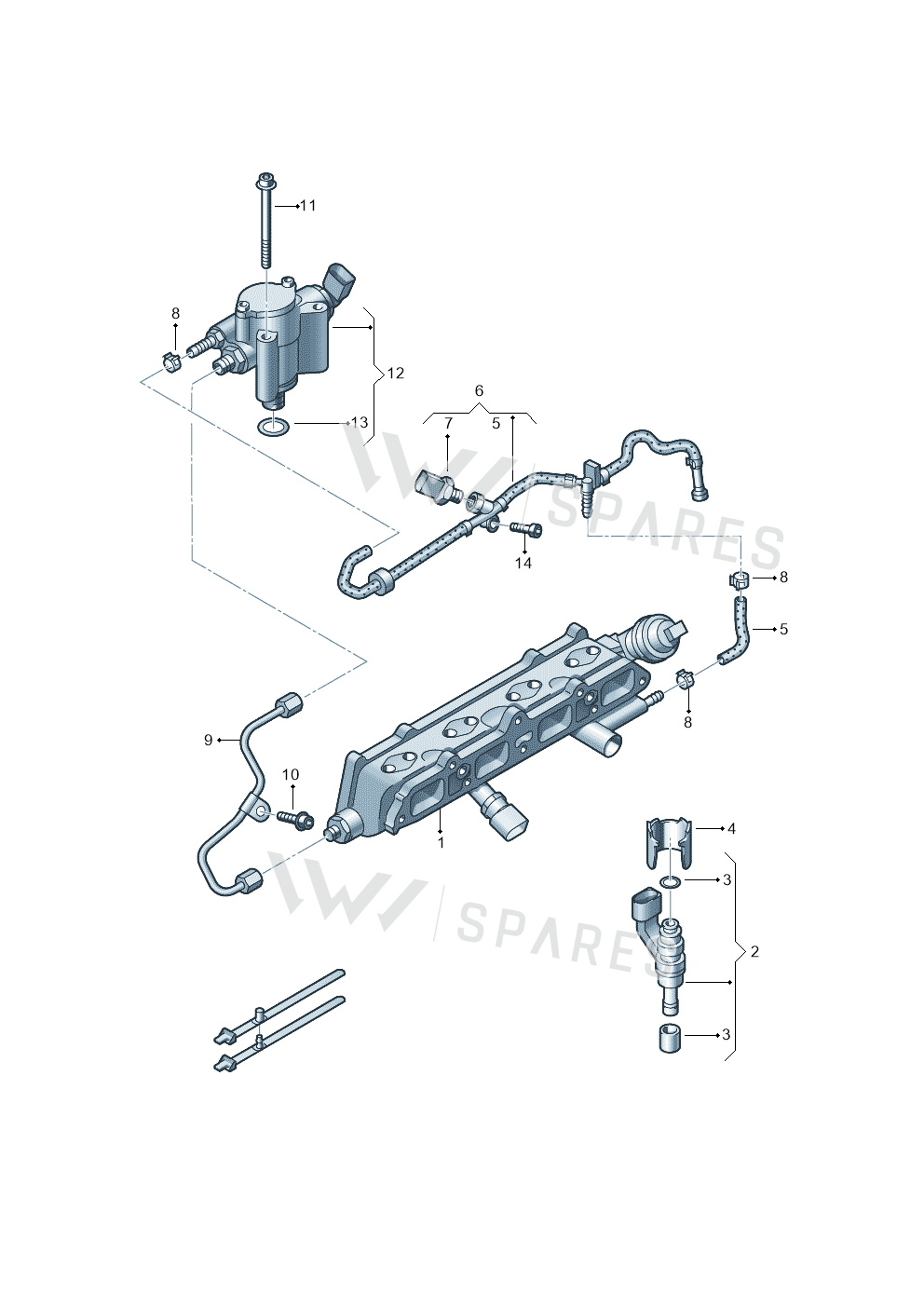

9 vehiclesFuel Pump — locate Fuel Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Manifold 03C133204AJ
- 2Valve 03C906036F
- 2Valve 03C906036A
- 2Valve 03C906036E
- 3Gask Set 03C198149
- 3Gask Set 036198149
- 4Support Element 03C133036D
- 5Fuel Line 03C133713J
- 5Fuel Line 03C133713L
- 6Hose 03C133723AP
- 6Hose 03C133723AG
- 6Fuel Line 03C133679AM
- 6Fuel Line 03C133679BA
- 7Sensor 03C906051A
- 8Clamp N90986501
- 9Pipe 03C130241AB
- 9Pipe 03C130241AC
- 9Pipe 03C130241AF
- 9Pipe 03C130241AN
- 10Bolt N10451405
- 11Screw N91048802
- 11Screw N10247501
- 11Screw N10247505
- 12Pump 03C127025R
- 12Pump 03C127025T
- 13Seal Ring WHT005184
- 15Binder 4A0820199
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 12 | 1 | TU0 | |
| Passat/4Motion 08 | 2007- | 12 | 1 | ||
| GOLF VARIANT 07> | 2007- | 12 | 1 | D4X | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 12 | 1 | TU0 | |
| EOS-Cabriolet-Coupe | 2006- | 12 | 1 | ||
| ALTEA 07> | 2006- | 12 | 1 | TU0 | |
| JETTA 06> | 2005- | 12 | 1 | D4X | |
| LEON 06> | 2005- | 12 | 1 | TU0 | |
| TOLEDO 05> | 2004- | 12 | 1 | TU0 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Pump is fitted on: Audi A3 Sportback 2008-2013; Passat/4Motion 08 2007-; GOLF VARIANT 07> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-.
