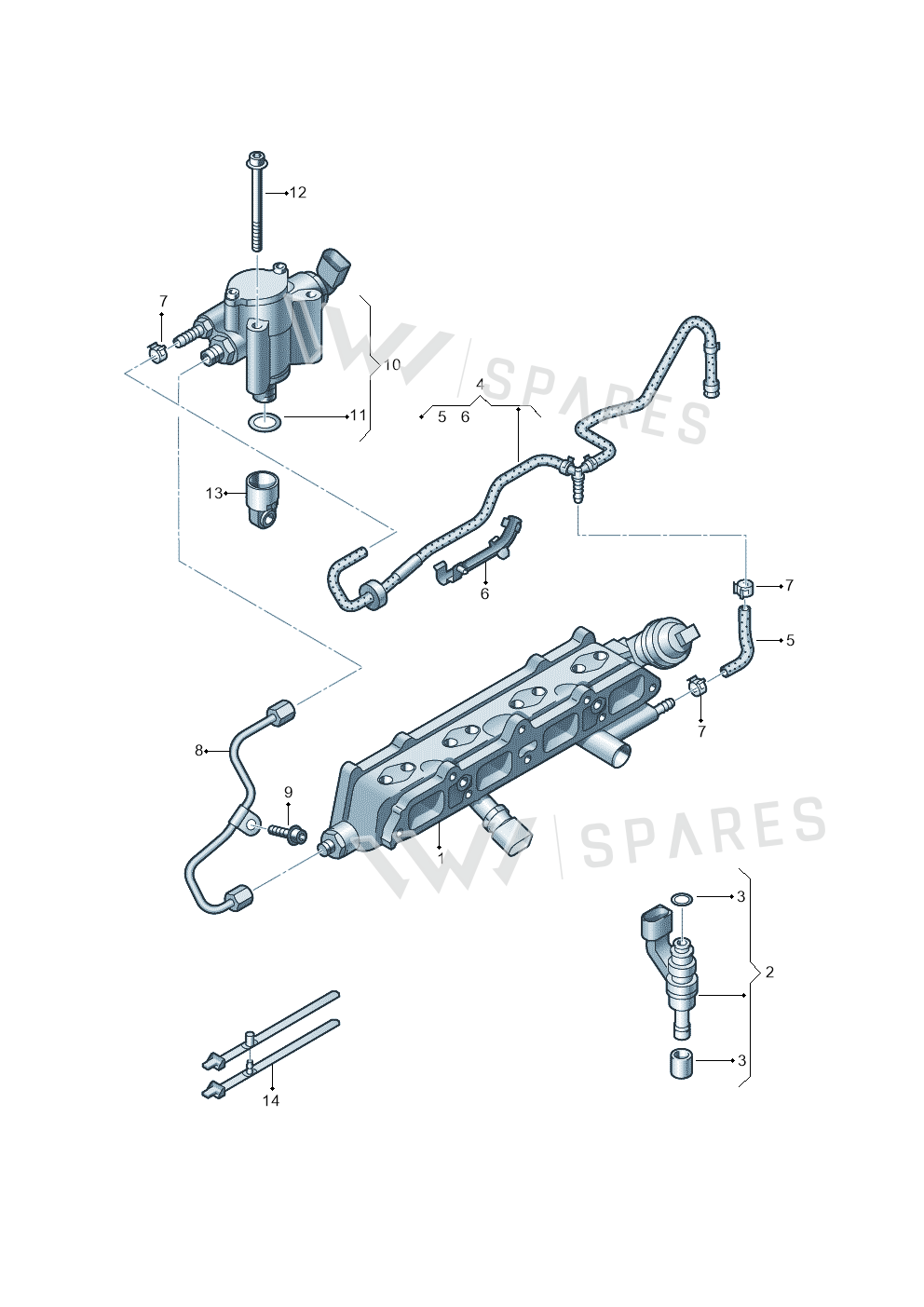

Bracket For Fuel Hose exploded parts diagram — Fabia Scout · 2010-2014, position 6
Exploded view
Fabia Scout · 2010-2014 · position 6Full diagram ↓
03C133248D

03C133248D Bracket For Fuel Hose

£5.49
£4.54 excl. VAT
Supersession roadoldest to newest
  1. 03C133248BNot stocked
    Mar 2008
  2. 03C133248DThis pageNot stocked
    Jun 2011
  3. 03C133248ECurrent number
Current part number03C133248EWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

3 vehicles

Bracket For Fuel Hose — locate Bracket For Fuel Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly20
Vehicle fitment table3

Europe (3)

VehicleYearsPos.QtyPR
Fabia Scout2010-201461
Ibiza Reference2008-201161TF0
TIGUAN 08>2007-61

Diagrams & fitment data powered by oemdiagrams.com

Bracket For Fuel Hose is fitted on: Fabia Scout 2010-2014; Ibiza Reference 2008-2011; TIGUAN 08> 2007-.
